Odor From A/C At Vehicle Start-Up (Remove Debris From Evaporator Case And Apply Cooling Coil Coating To Evaporator) (01-T-18)

Publication date: 2001-04-01
Reference number: 01-T-18

ODOR FROM A/C AT VEHICLE START-UP (REMOVE DEBRIS FROM EVAPORATOR CASE AND APPLY COOLING COIL COATING TO EVAPORATOR)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 01-T-18, Date of Issue: April, 2001

SATURN:	2000 and 2001 L-Series vehicles
SECTION:	01-HVAC

Odor from A/C at Vehicle Start-Up (Remove Debris from Evaporator Case and Apply Cooling Coil Coating to Evaporator)

A musty odor from A/C system, most noticeable at vehicle start-up.

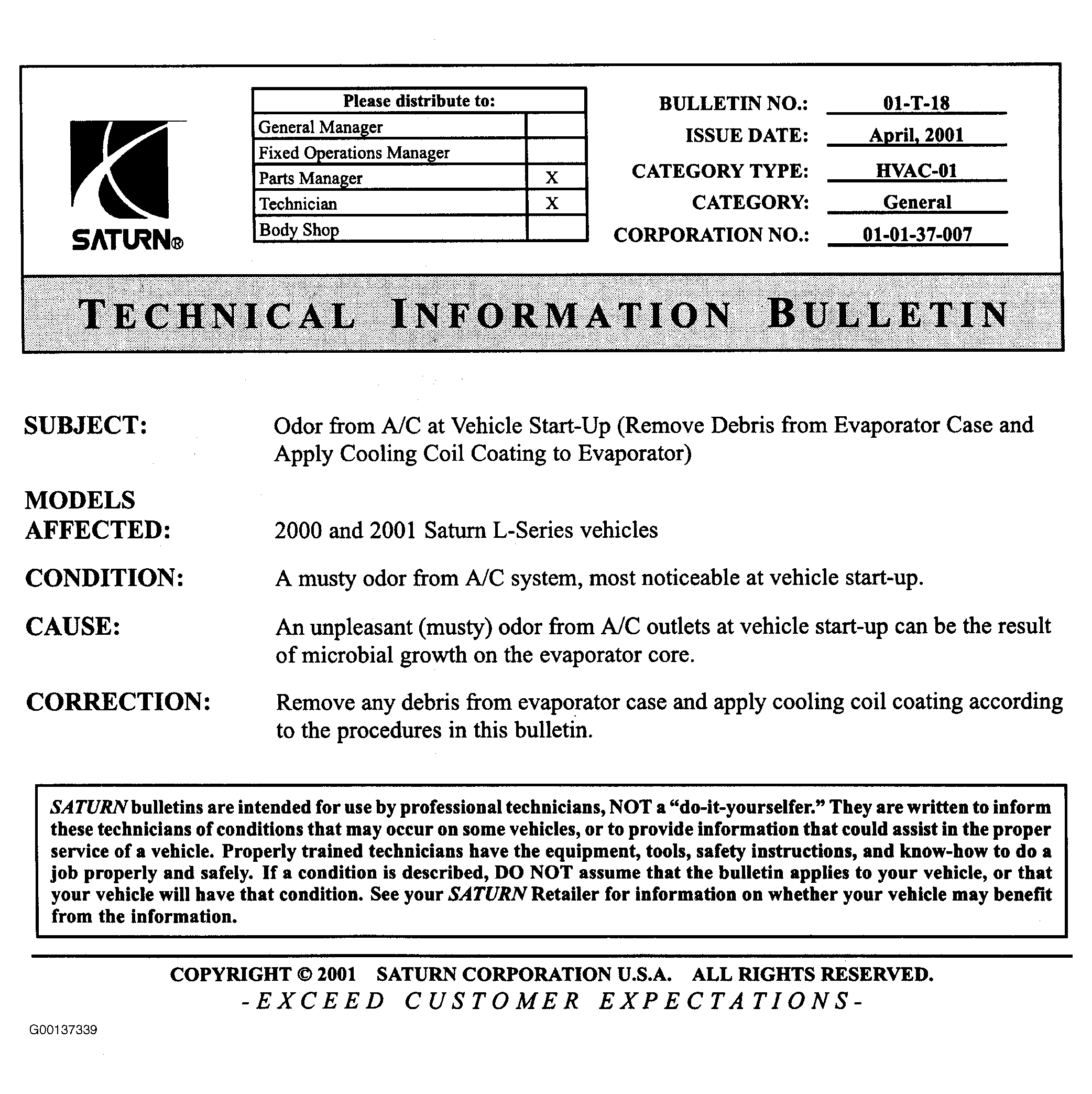

Fig 1: Page 1 of Bulletin

Fig 2: Page 2 of Bulletin

Fig 3: Page 3 of Bulletin

Fig 4: Page 4 of Bulletin

Fig 5: Page 5 of Bulletin

Fig 6: Page 6 of Bulletin

Fig 7: Page 7 of Bulletin

Fig 8: Page 8 of Bulletin

Fig 9: Page 9 of Bulletin
