Engine Hesitation Under Heavy Acceleration (Inspect Fuel Return Hose & Jet Valve Fitting On Fuel Pump Housing & Repair As Necessary) (00-T-50)

Publication date: 2000-10-01
Reference number: 00-T-50

ENGINE HESITATION UNDER HEAVY ACCELERATION (INSPECT FUEL RETURN HOSE & JET VALVE FITTING ON FUEL PUMP HOUSING & REPAIR AS NECESSARY)

ENGINE HESITATION UNDER HEAVY ACCELERATION (INSPECT FUEL RETURN HOSE & JET VALVE FITTING ON FUEL PUMP HOUSING & REPAIR AS NECESSARY)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 00-T-50, Date of Issue:  October, 2000
SATURN: 2000 L-Series
SECTION: 14-Engine

DESCRIPTION

Engine Hesitation Under Heavy Acceleration (Inspect Fuel Return Hose & Jet Valve Fitting On Fuel Pump Housing & Repair As Necessary)

Some customers may comment about an engine hesitation under heavy acceleration or after turning a corner. This condition will be more noticeable with lower levels of fuel in the tank (1/4 tank or less). This condition may also be accompanied by DTCs P0136 and/or P0156 on V6 (L81) equipped vehicles, or P0137 on 4 cyl. (L61) equipped vehicles.

BULLETIN CONTENT

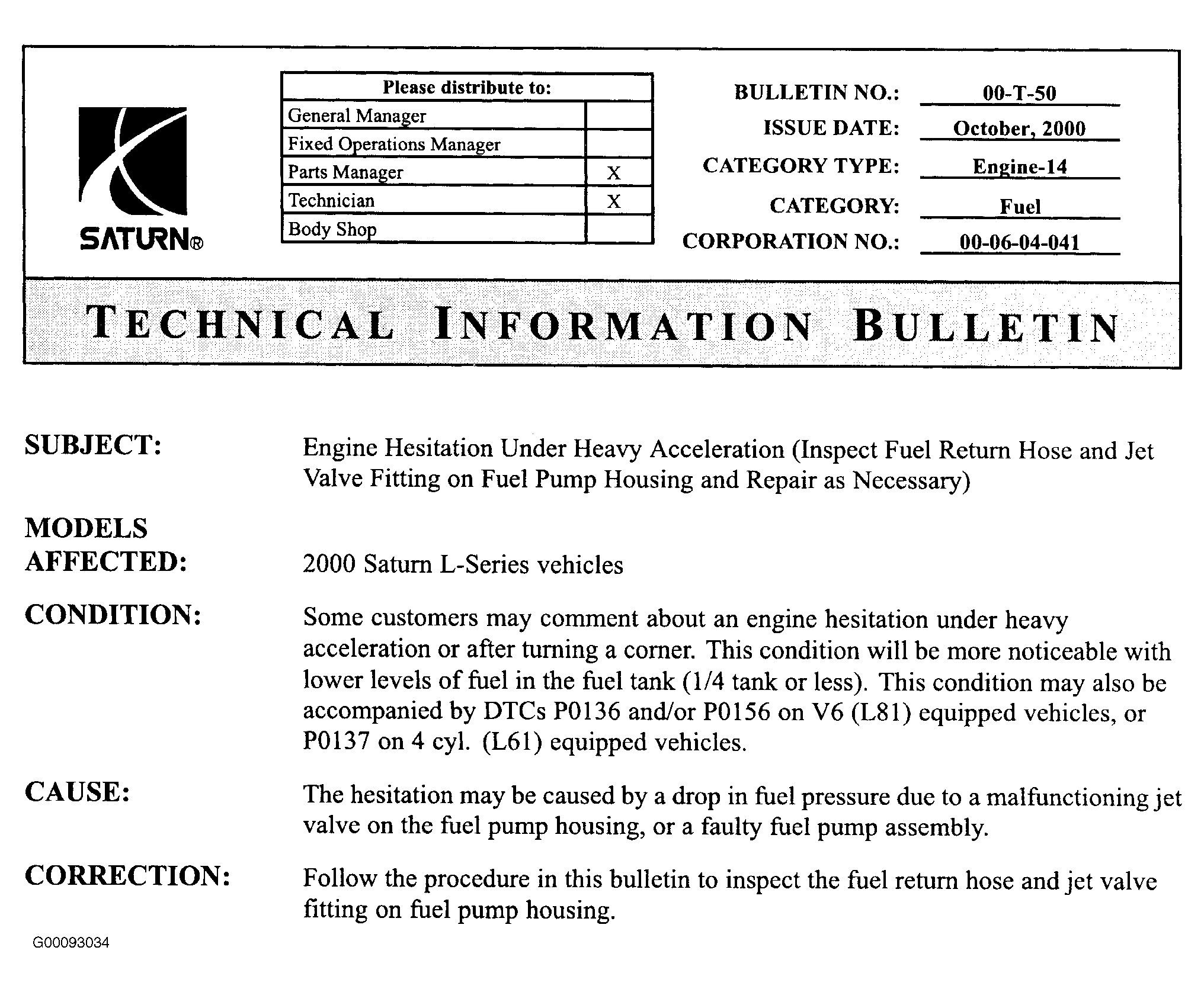

Fig 1: Page 1 of Bulletin
G00093034

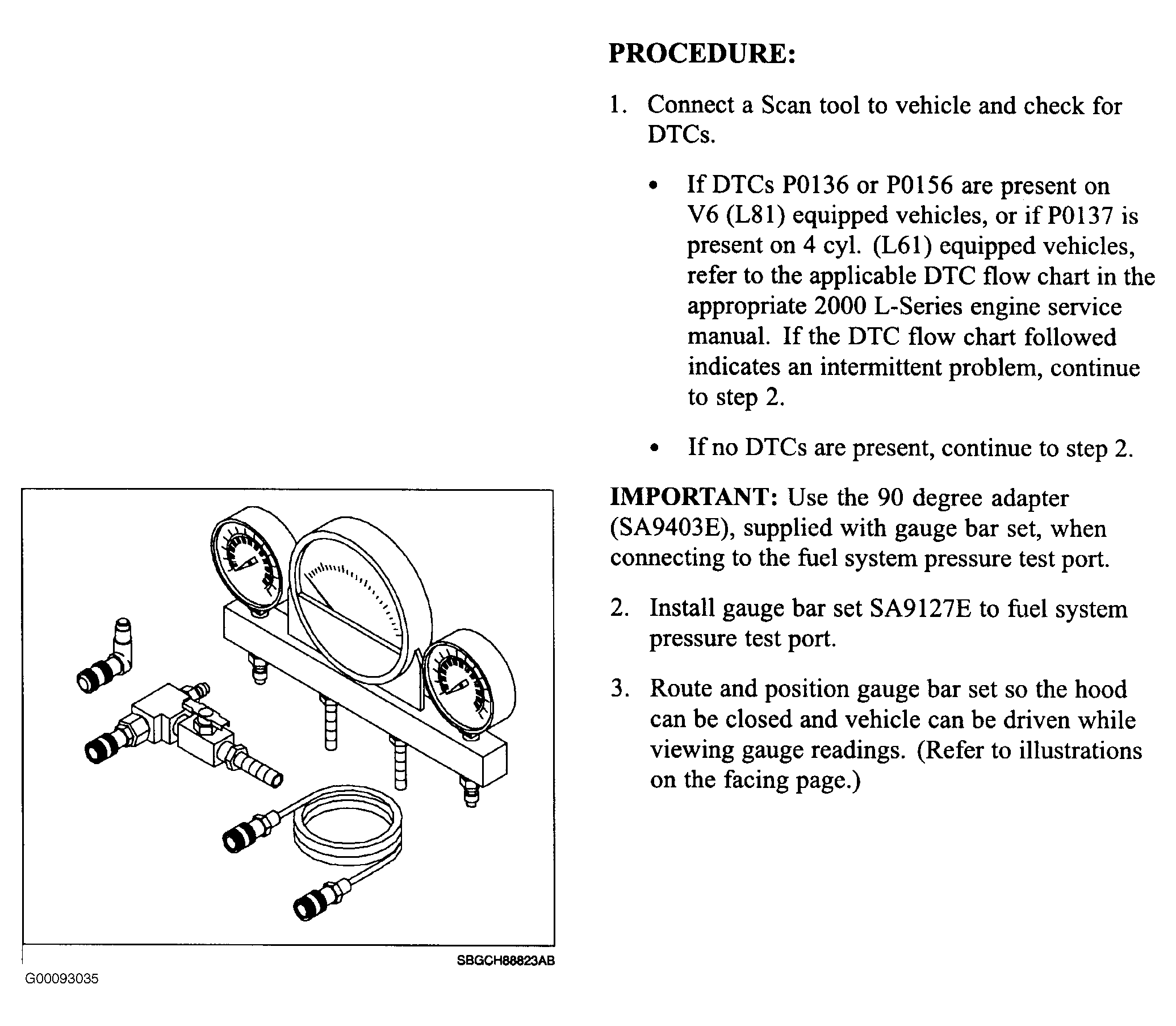

Fig 2: Page 2 of Bulletin
G00093035

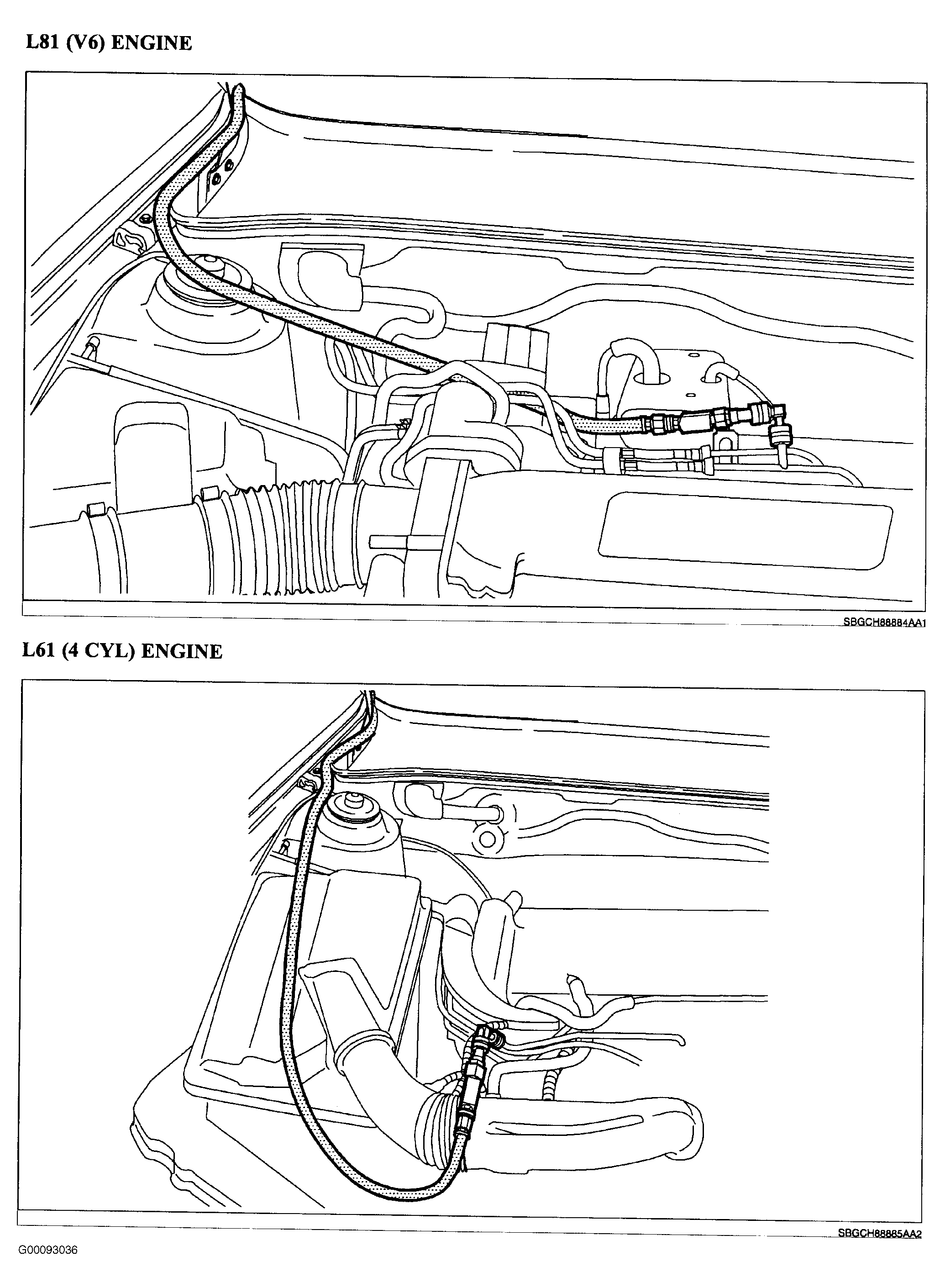

Fig 3: Page 3 of Bulletin
G00093036

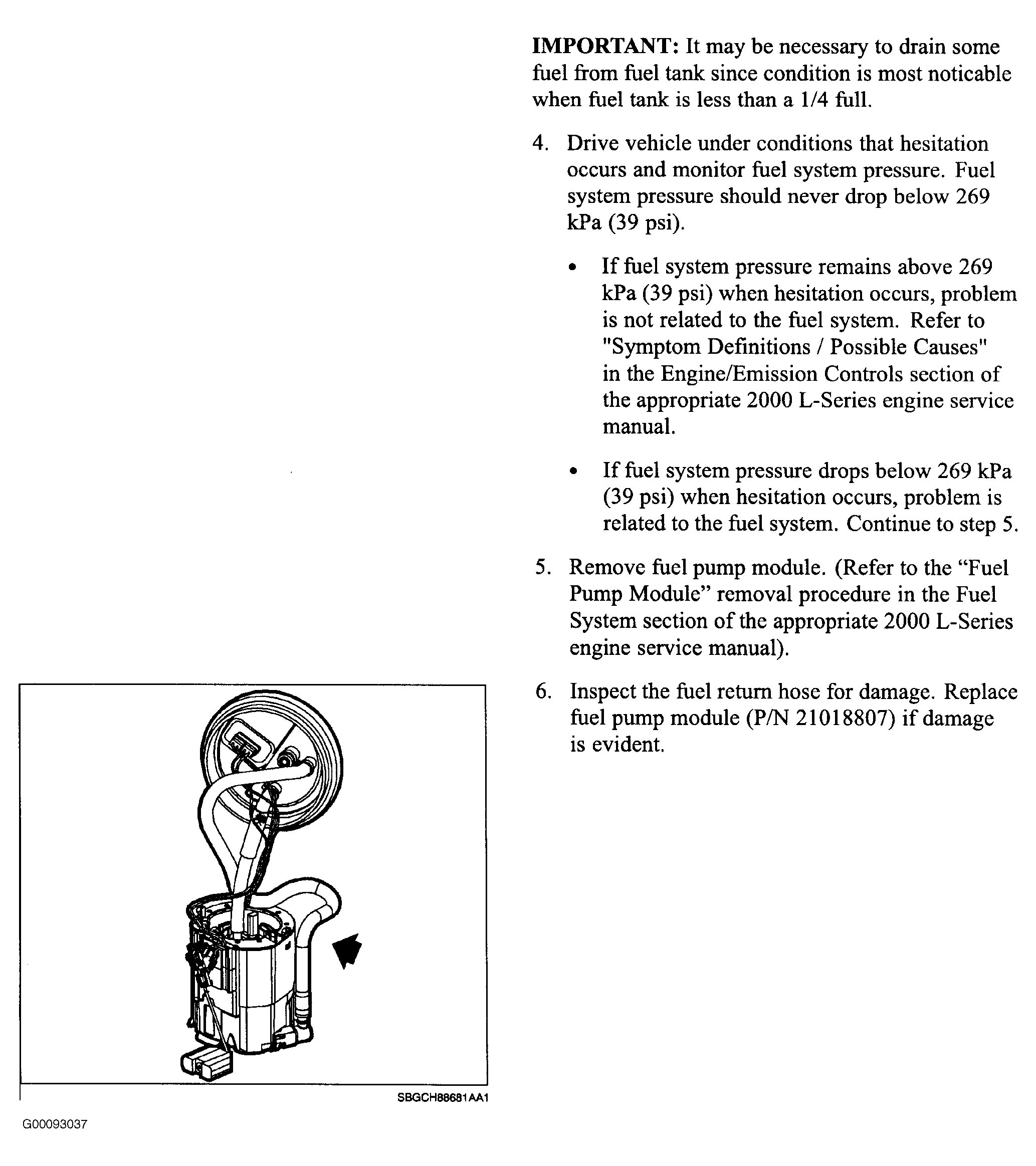

Fig 4: Page 4 of Bulletin
G00093037

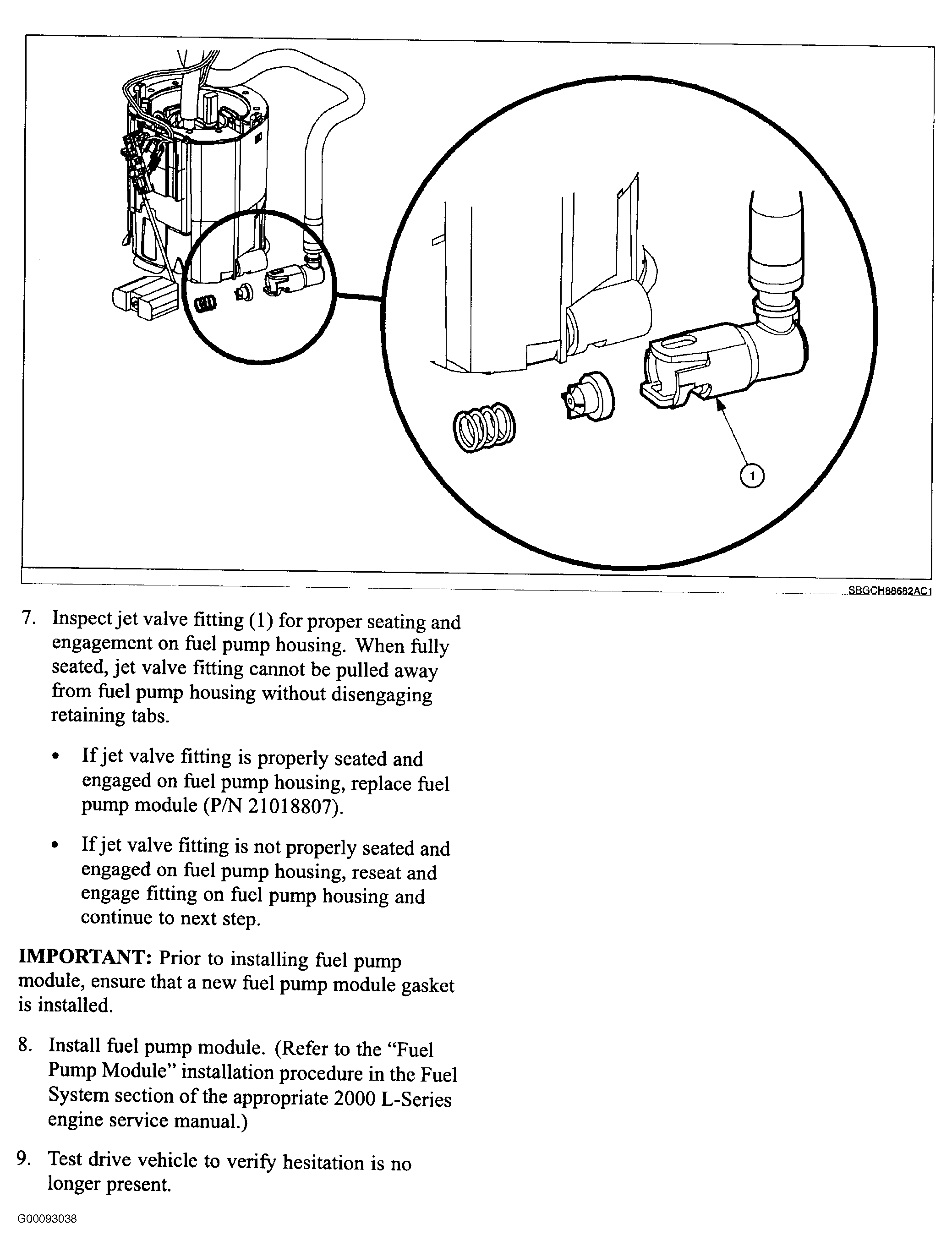

Fig 5: Page 5 of Bulletin
G00093038

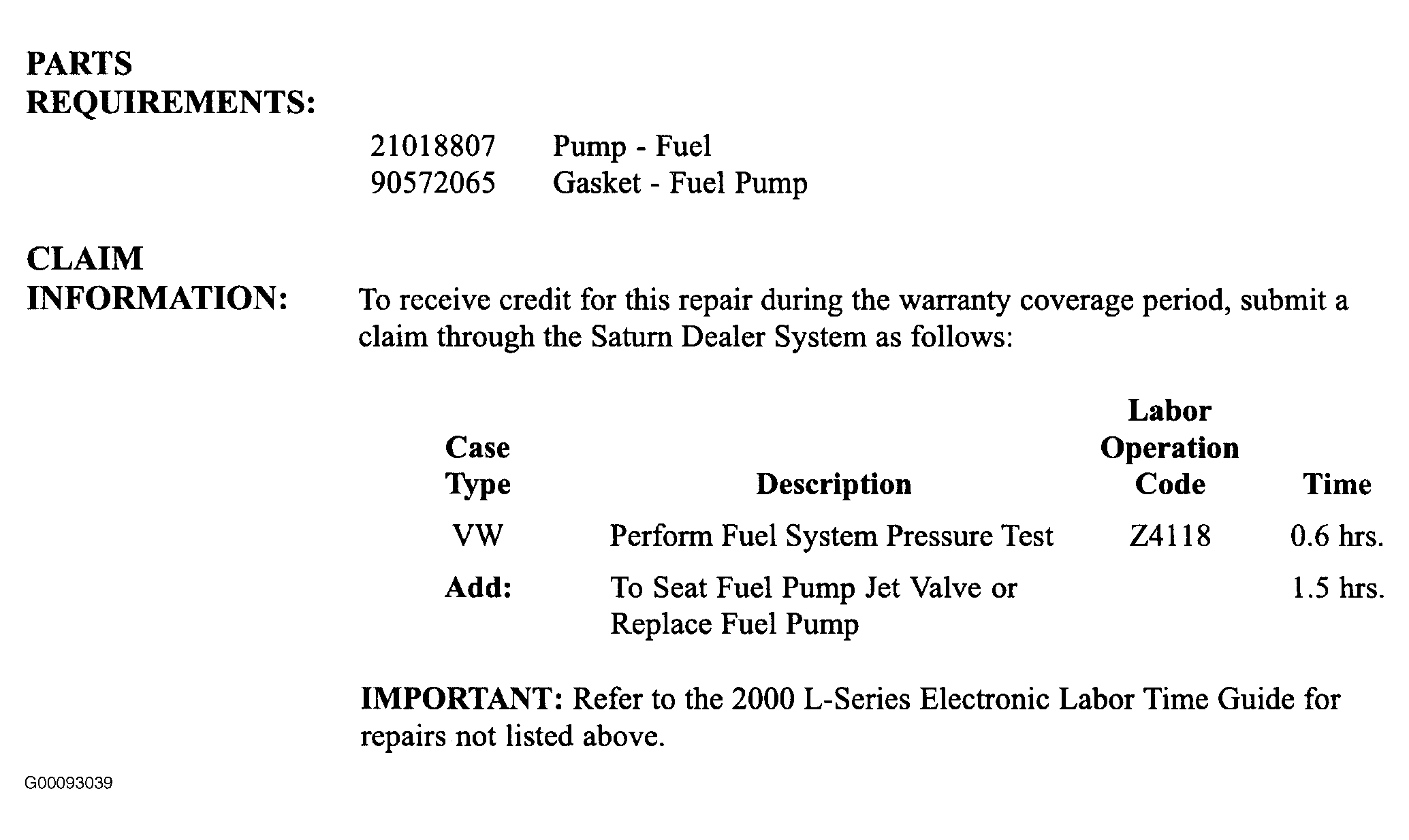

Fig 6: Page 6 of Bulletin
G00093039
