Water Leaks Into Passenger Compartment &/Or Rear Compartment/Cargo Area (Add Body Seam Sealer To Specified Locations As Necessary) (00-T-41A)

Publication date: 2001-08-01
Reference number: 00-T-41A
Supersedes refnos: 00-T-41

WATER LEAKS INTO PASSENGER COMPARTMENT &/OR REAR COMPARTMENT/CARGO AREA (ADD BODY SEAM SEALER TO SPECIFIED LOCATIONS AS NECESSARY)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 00-7-41A, 00-T-40, Date of Issue: August, 2001

SATURN:	2000-2002 Saturn L-Series Vehicles
SECTION:	13-Body

NOTE: Due to a change in model years affected, this bulletin has been revised and supersedes bulletin 00-T-41, which should be discarded.

Water leaks Into Passenger Compartment &/Or Rear Compartment/Cargo Area (Add Body Seam Sealer To Specified Locations As Necessary)

Some customers may comment about water leaking into the passenger compartment and/or rear compartment/rear cargo area.

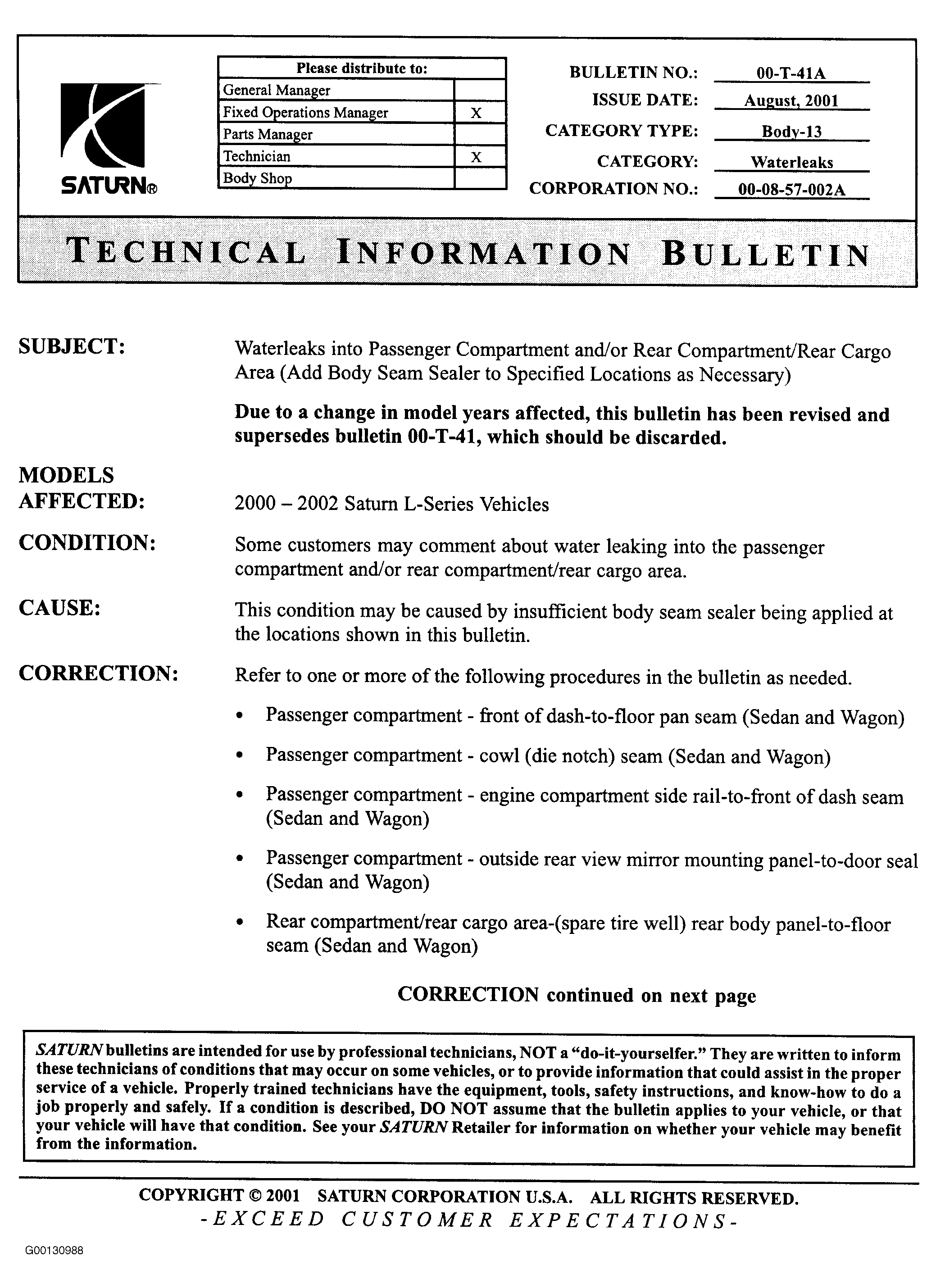

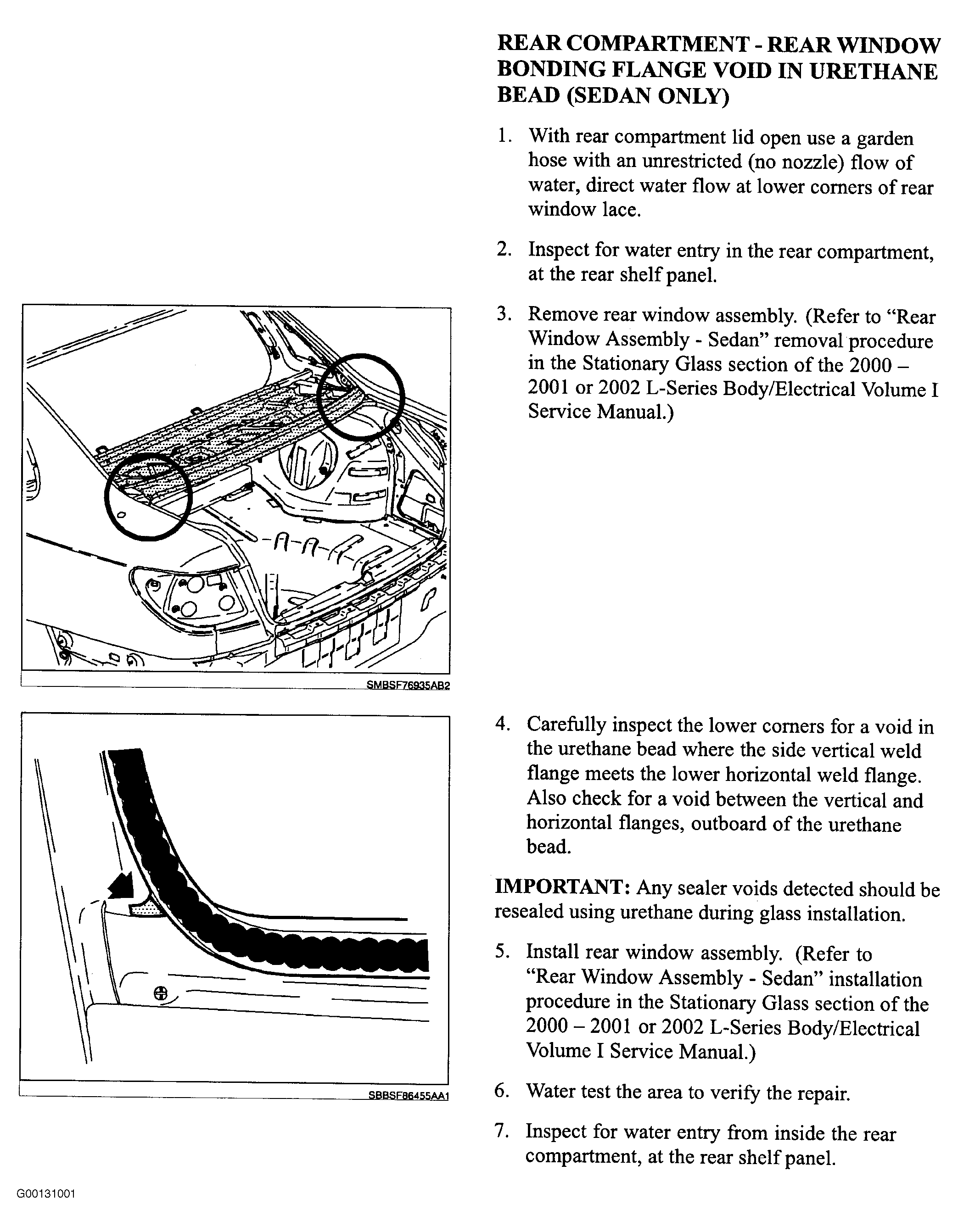

Fig 1: Page 1 of Bulletin

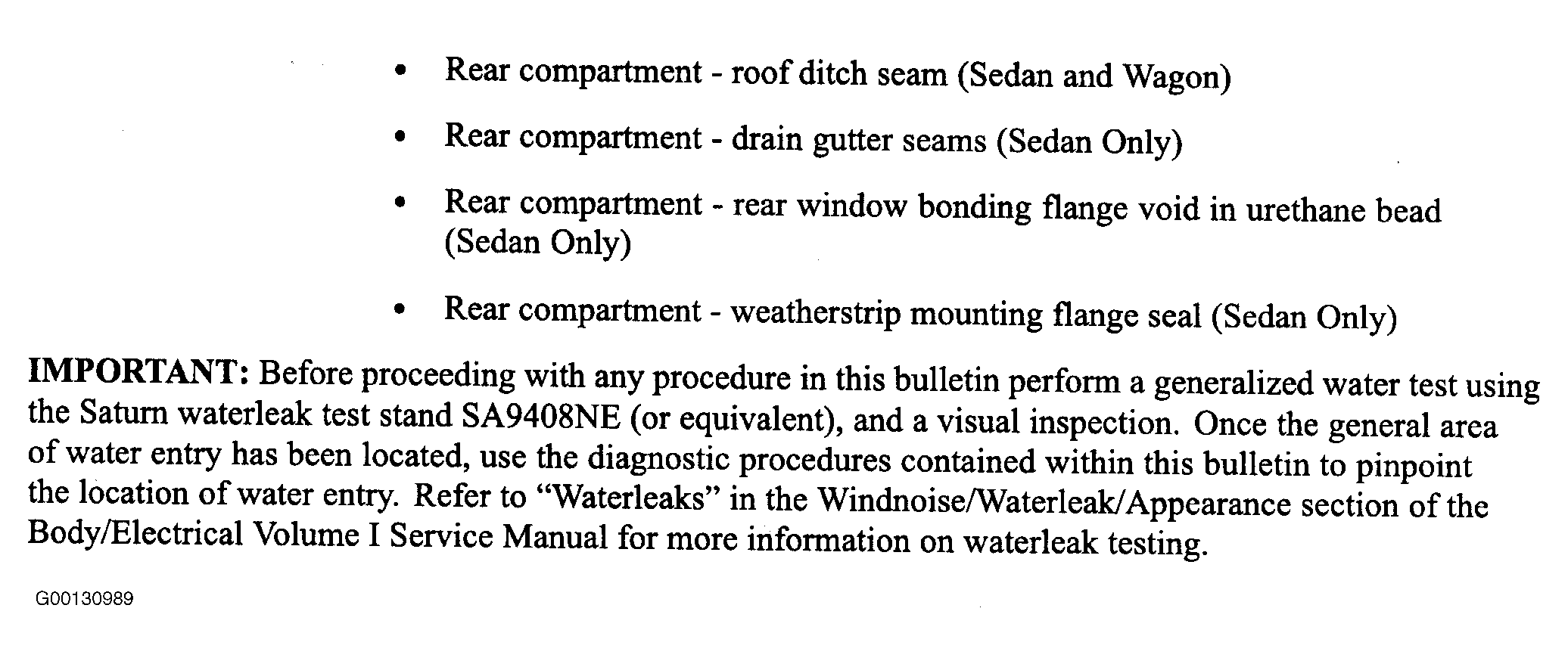

Fig 2: Page 2 of Bulletin

Fig 3: Page 3 of Bulletin

Fig 4: Page 4 of Bulletin

Fig 5: Page 5 of Bulletin

Fig 6: Page 6 of Bulletin

Fig 7: Page 7 of Bulletin

Fig 8: Page 8 of Bulletin

Fig 9: Page 9 of Bulletin

Fig 10: Page 10 of Bulletin

Fig 11: Page 11 of Bulletin

Fig 12: Page 12 of Bulletin

Fig 13: Page 13 of bulletin

Fig 14: Page 14 of Bulletin

Fig 15: Page 15 of Bulletin

Fig 16: Page 16 of Bulletin

Fig 17: Page 17 of Bulletin
