Minifuse Circuit Feeds

Minifuse Circuit Feeds:

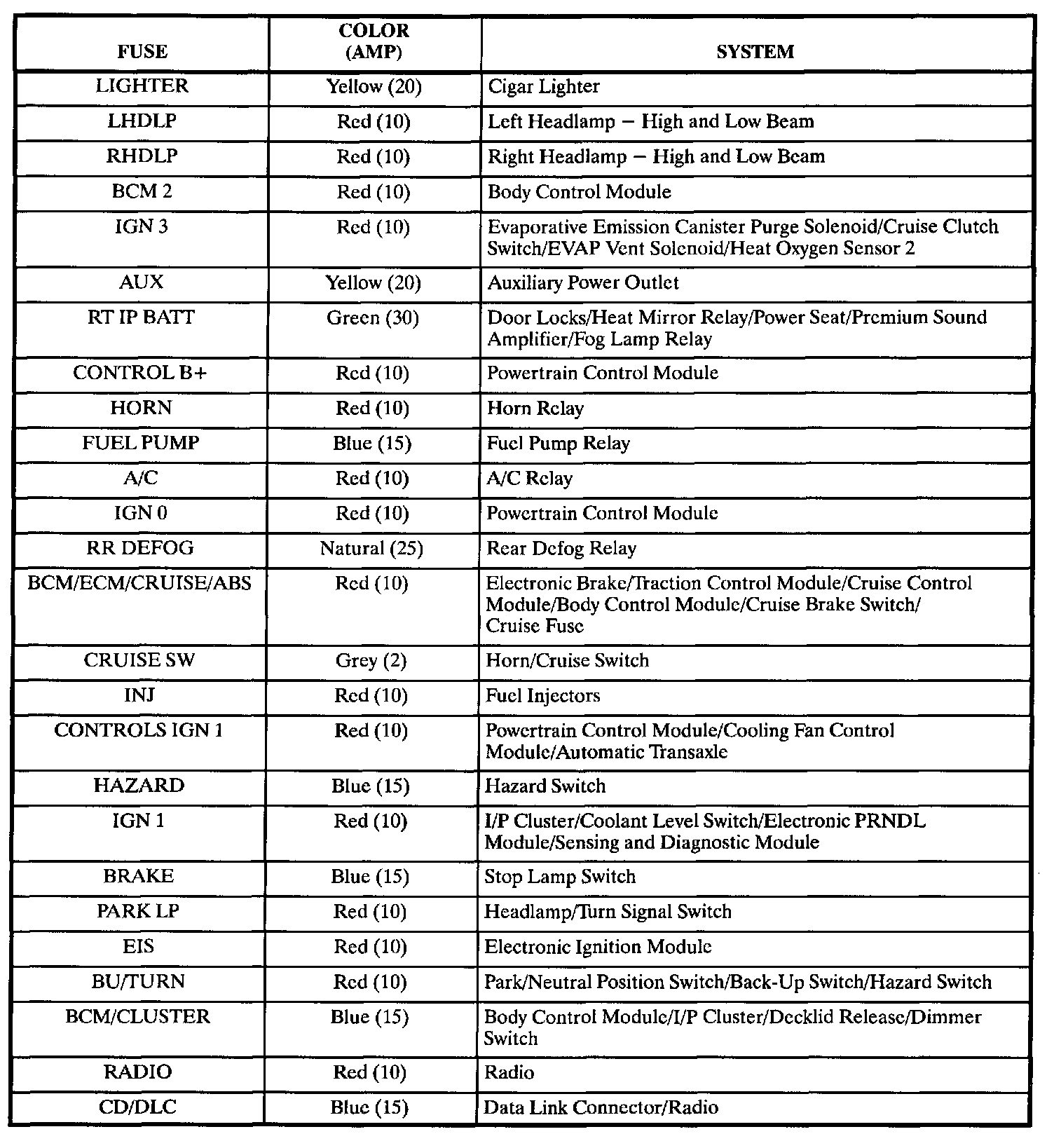

The chart lists the minifuses located in the underhood fuse block, and the circuits they feed.
