Input Speed Sensor & Wiring Harness: Reassembly

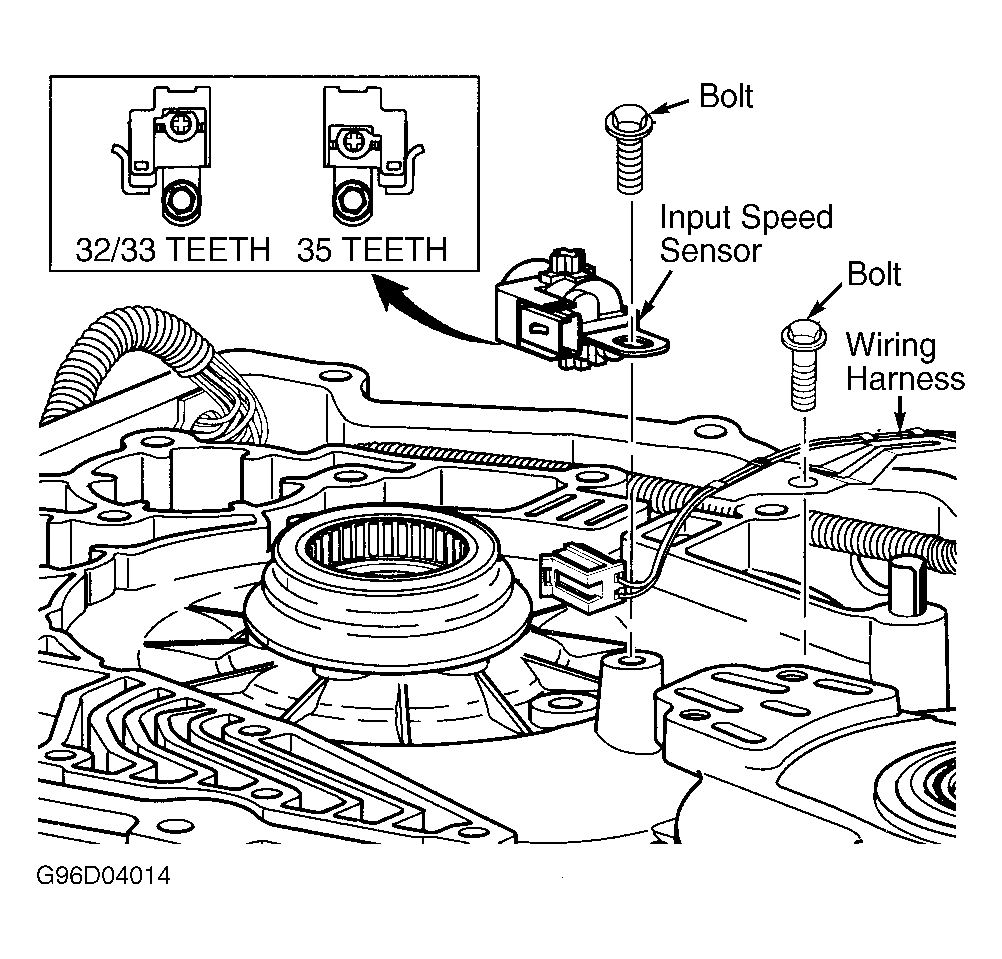

  1. Install input speed sensor into transaxle case. Tab on sensor housing fits into recess on transaxle case boss. Position of input speed sensor depends on number of teeth on drive sprocket. Number of teeth varies depending on model. See Figure .
  2. Drive sprockets with 32 or 33 teeth have speed sensor connector (Natural) facing bottom pan. Drive sprockets with 35 teeth have speed sensor connector (Black) facing oil fill/vent cap. Install input speed sensor bolt and tighten to specification. See TORQUE SPECIFICATIONS  .
  3. Inspect wiring, "O" ring seal and pass-through connector pins for damage. Install wire harness pass-through connector into transaxle case bore from inside of transaxle case. Route input speed sensor wire harness in case channel. Install wire harness retainer and bolt. Tighten bolt to specification. Connect input speed sensor connector.
