Water Pump: Removal

Disconnect negative battery cable.
Remove air inlet tube and air cleaner assembly. See Fig 1 .

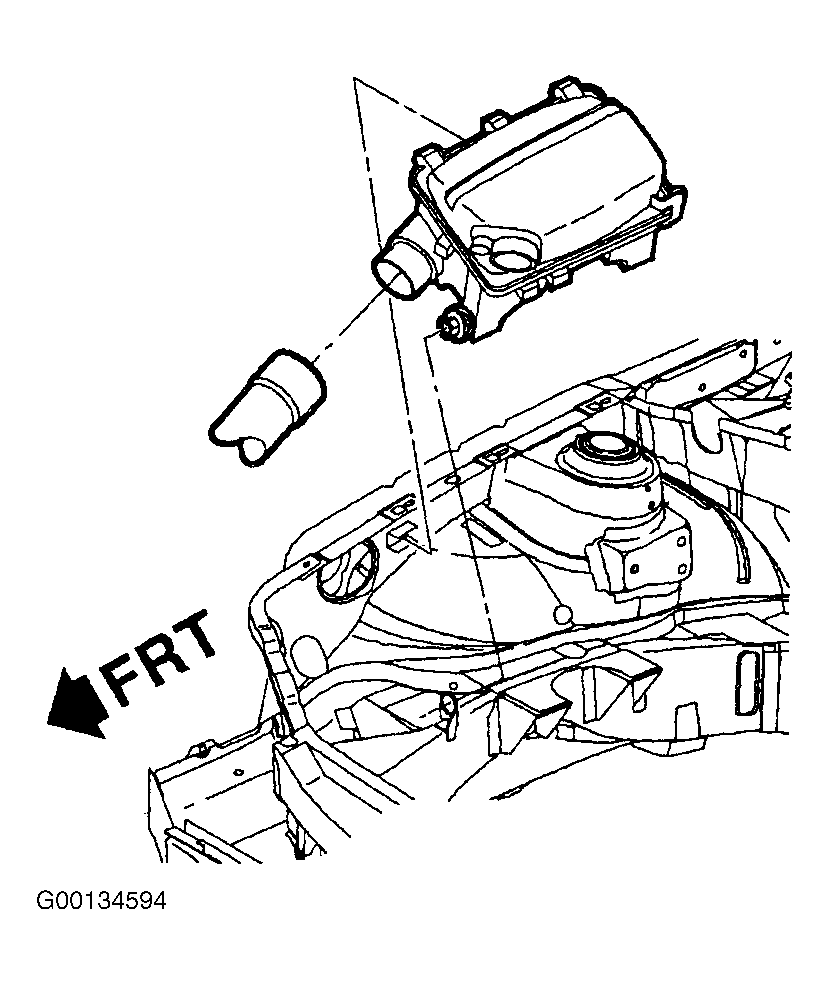

Fig 1: Removing Air Inlet Tube & Air Cleaner
Courtesy of GENERAL MOTORS CORP.
Drain coolant. See BLEEDING .
Remove exhaust manifold heat shield. See Fig 2 .

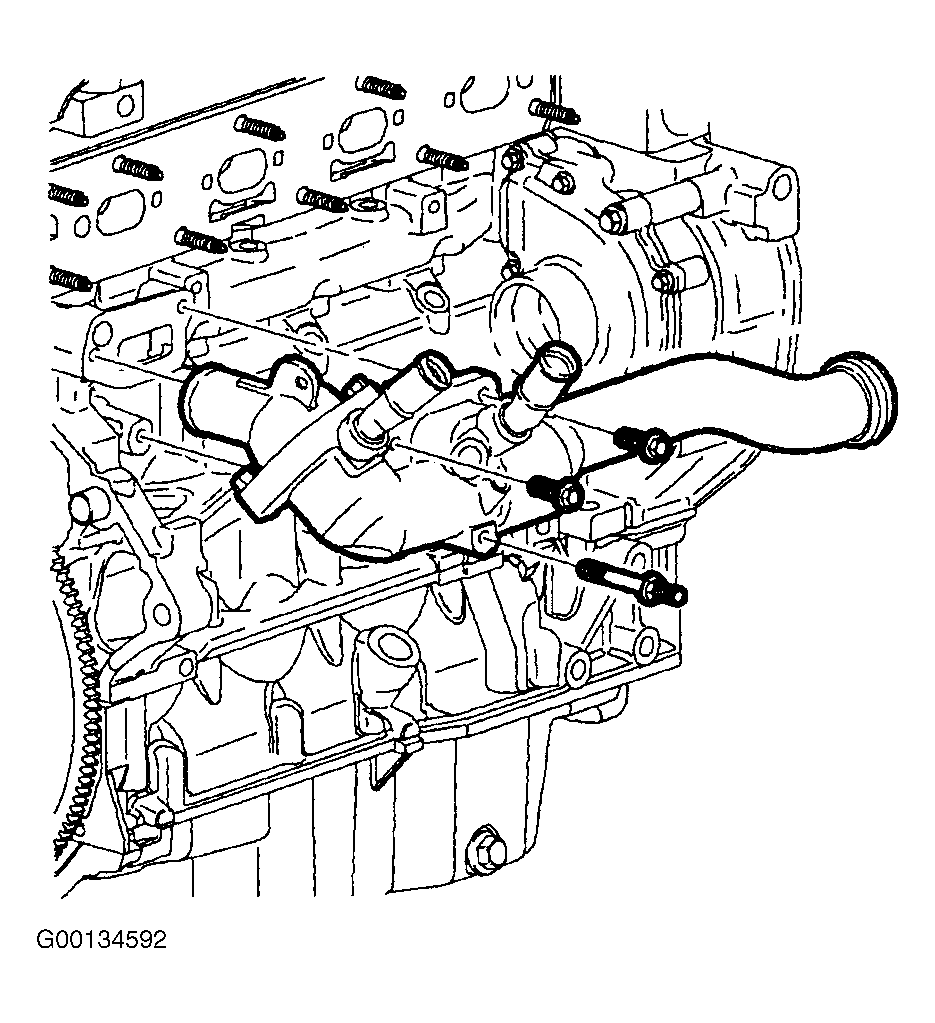

Remove thermostat and water feed assembly bolts. Twist water feed pipe while pulling to remove it from water pump. See Figure .
Remove water pump sprocket access plate from front cover. See Fig 3 .

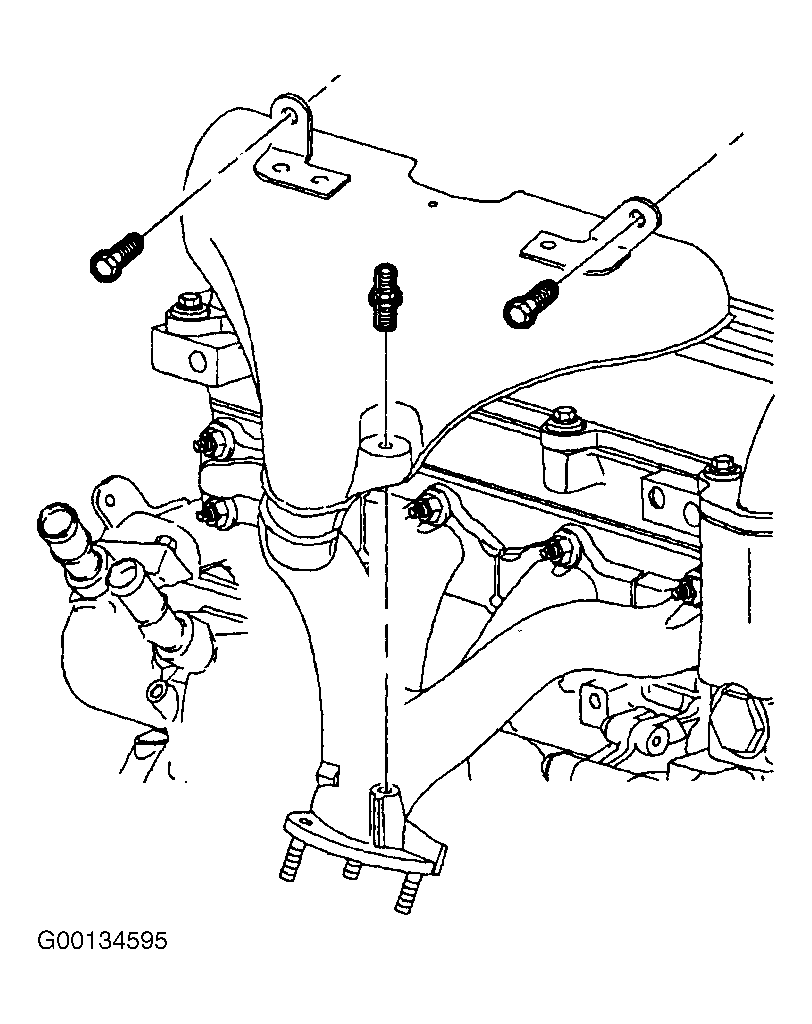

Fig 2: Removing Exhaust Manifold Heat Shield
Courtesy of GENERAL MOTORS CORP.

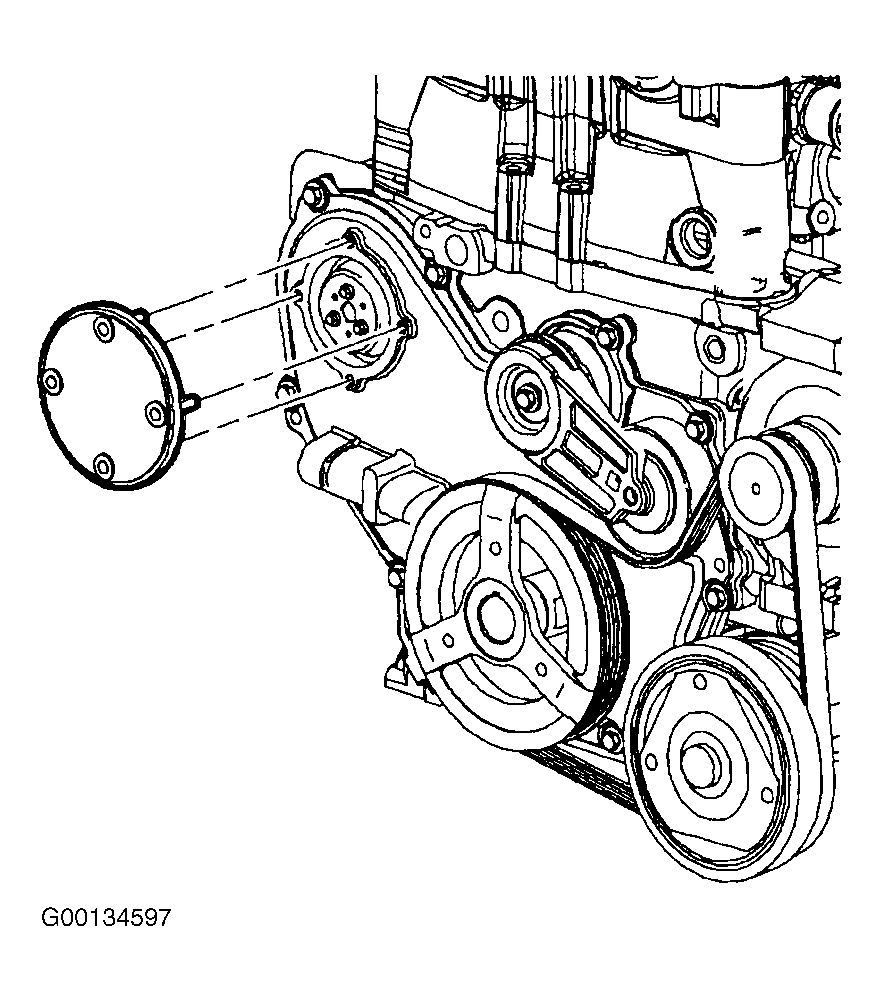

Fig 3: Removing Water Pump Sprocket Access Plate
Courtesy of GENERAL MOTORS CORP.
Use bolts removed from sprocket access plate and install water pump holding tool. See Fig 4 .

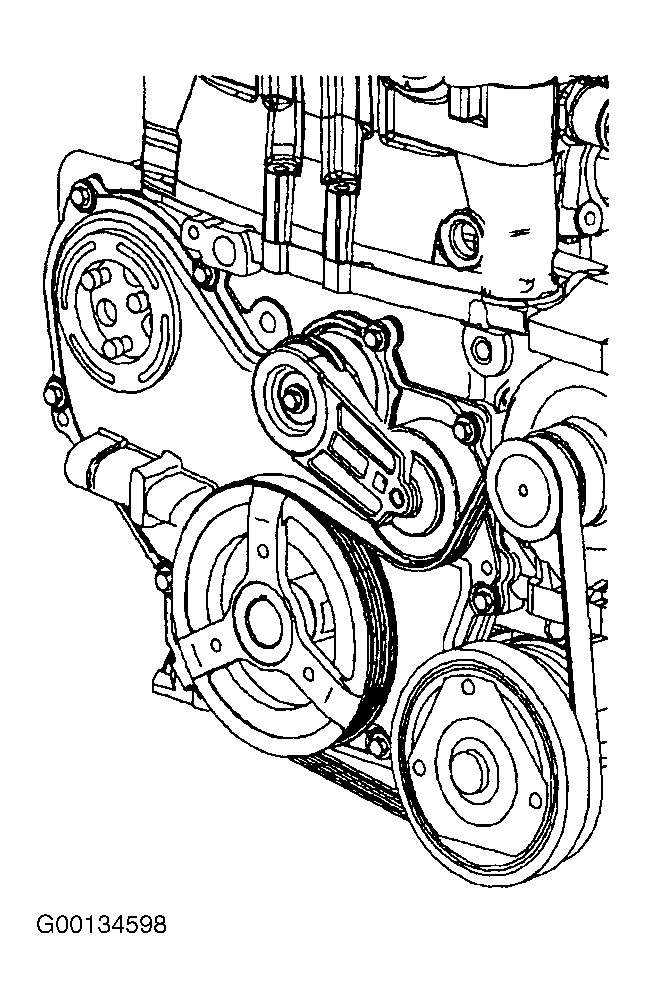

Fig 4: Identifying Water Pump Holding Tool
Courtesy of GENERAL MOTORS CORP.
Remove water pump retaining bolts. Be sure to remove retaining bolt that is accessed from front of engine block.
Remove water pump. See Fig 5 .

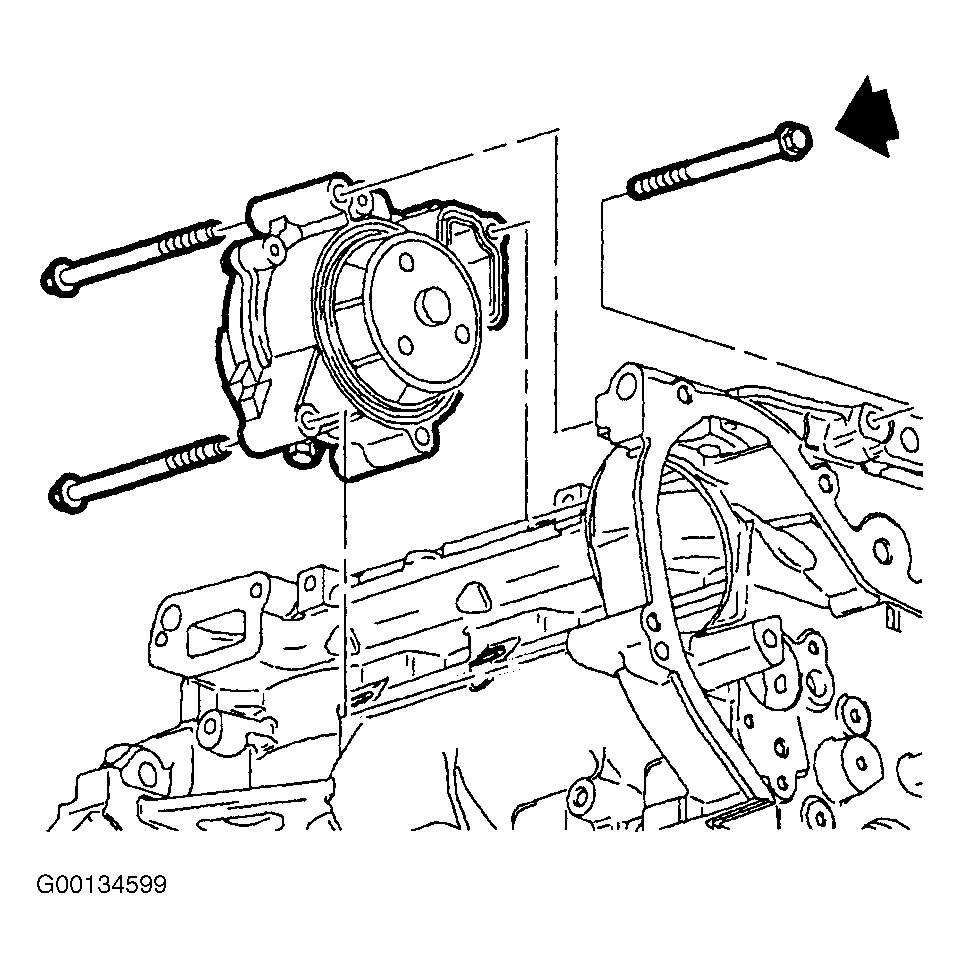

Fig 5: Removing Water Pump Retaining Bolts & Water Pump

Courtesy of GENERAL MOTORS CORP.
