Removal & Installation

Raise and support vehicle. Remove brake shoes. See REAR BRAKE SHOES  . Disconnect brake pipe from wheel cylinder. See Fig 1 . Remove wheel cylinder bolts. Remove wheel cylinder. To install, reverse removal procedure. Bleed brake system. See BLEEDING BRAKE SYSTEM  .

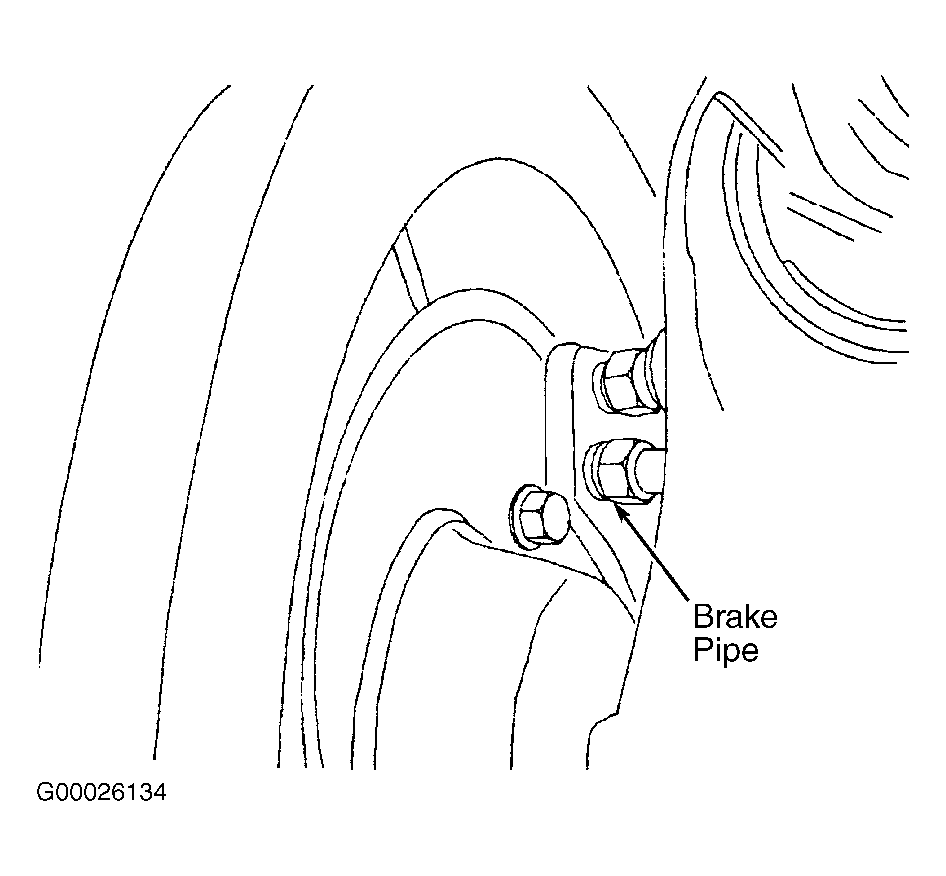

Fig 1: Brake Pipe Removal At Rear Cylinder

Courtesy of GENERAL MOTORS CORP.
