Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Injector >> Diagrams >> Connector Views >> Injector Inline - Jumper

Injector Inline - Jumper

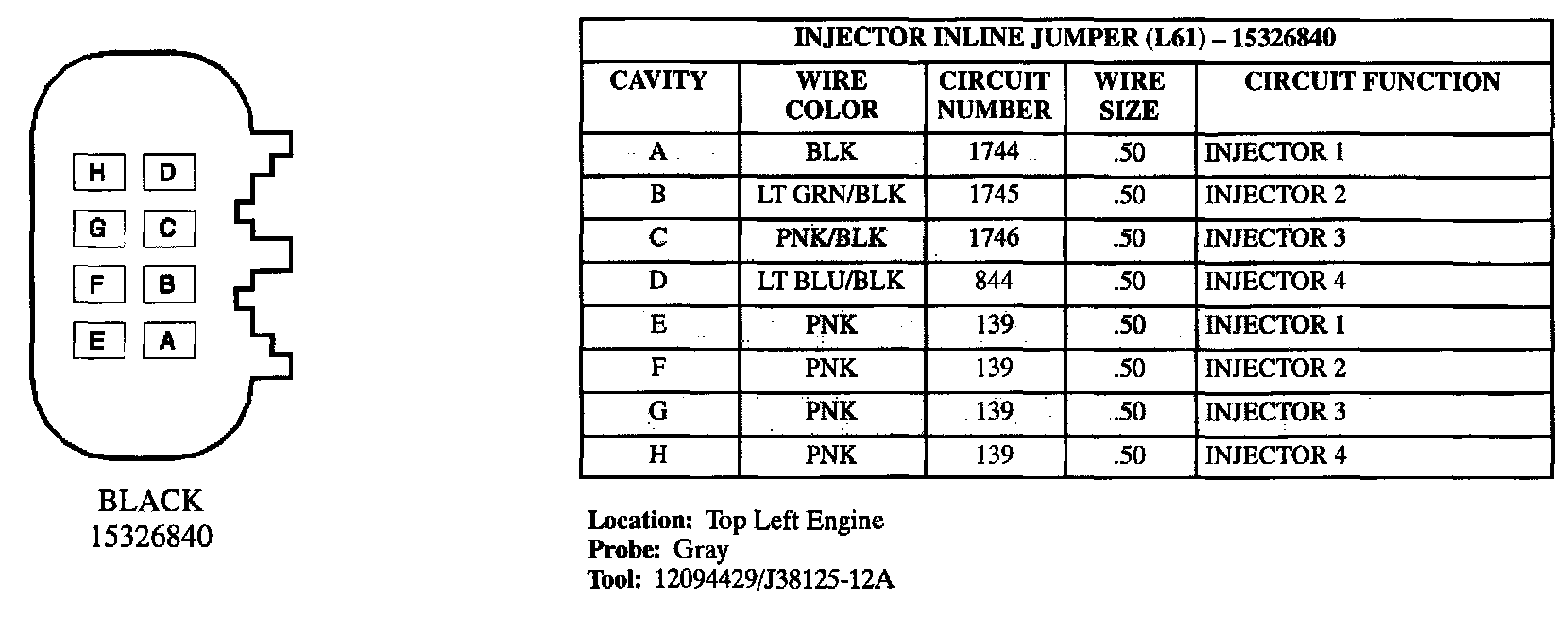

Injector Inline Jumper:
