Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Diagrams

Housing Assembly HVAC: Diagrams

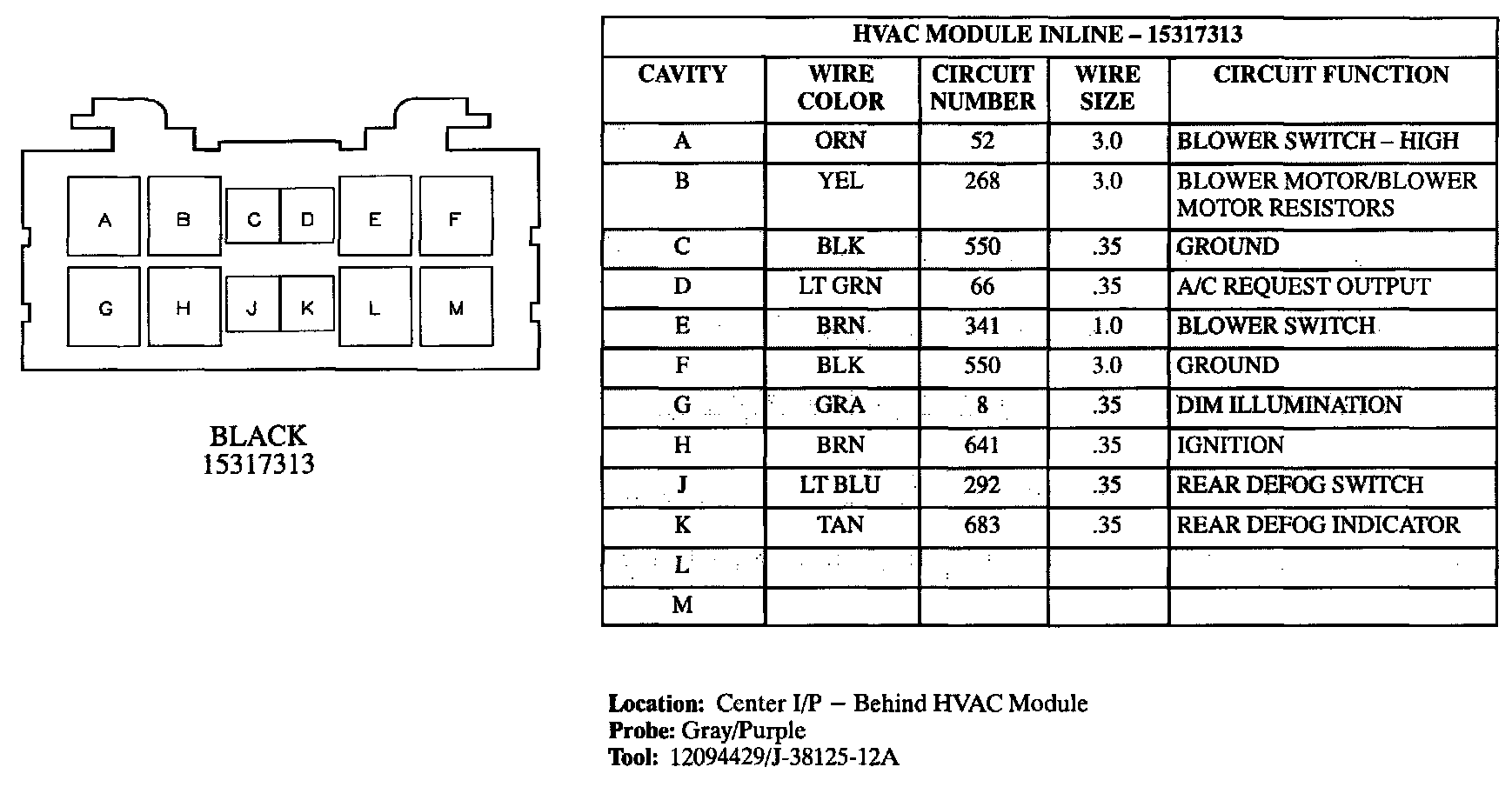

HVAC Module Inline:

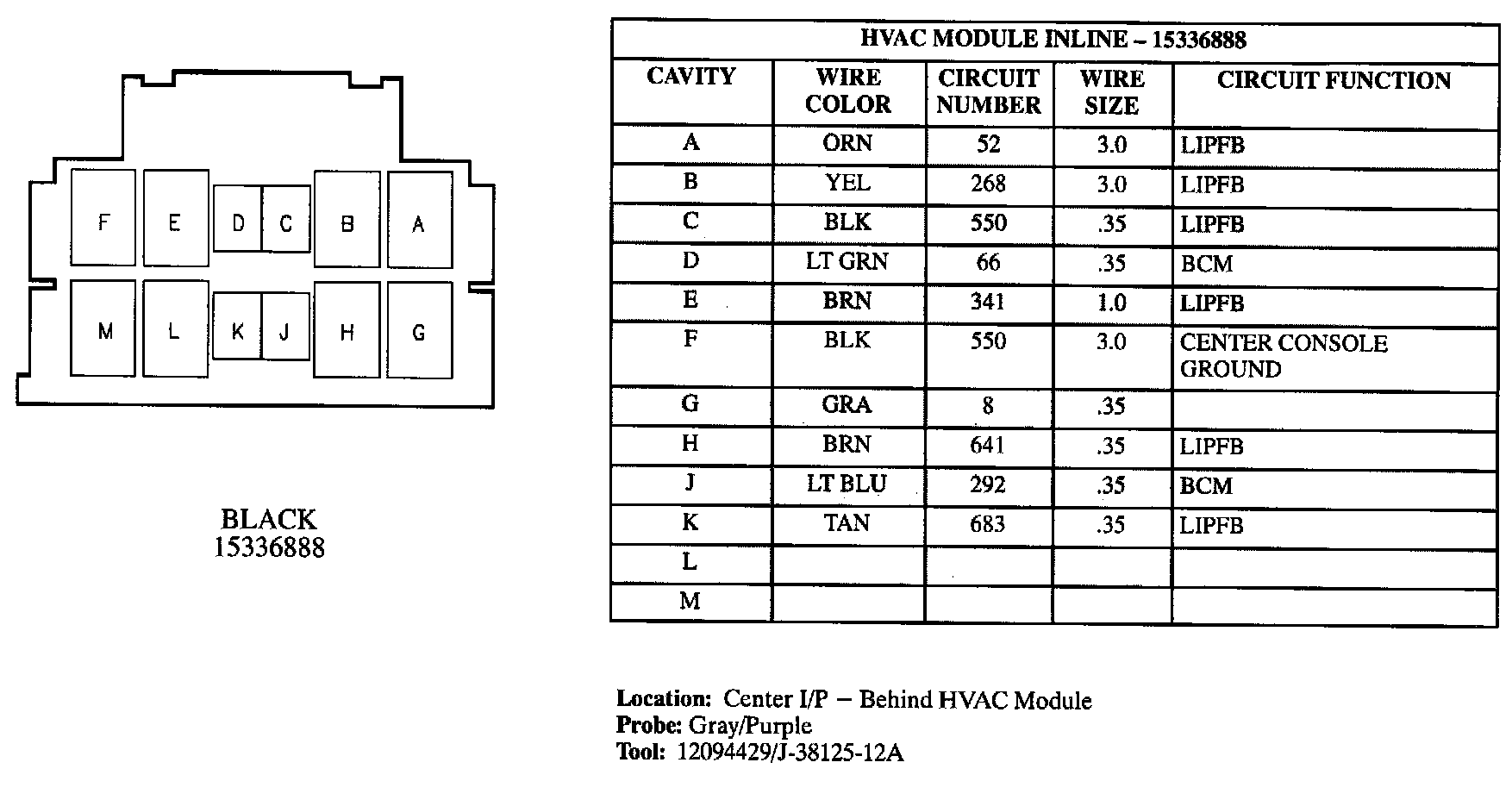

HVAC Module Inline:
