Drive Belt Tensioner: Service and Repair

CAUTION: THE TENSIONER ASSEMBLY'S INTERNAL PARTS ARE NOT SERVICEABLE. TO AVOID INJURY, DO NOT DISASSEMBLE TENSIONER.

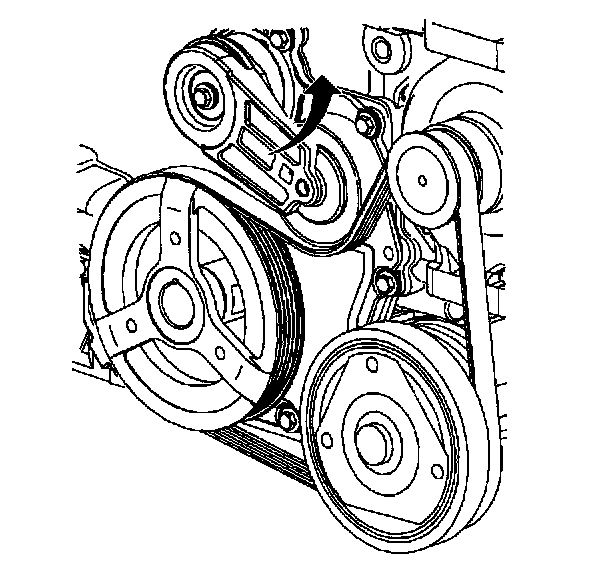

REMOVAL





1. Remove accessory drive belt.
2. Remove belt tensioner bolts.
3. Remove belt tensioner.

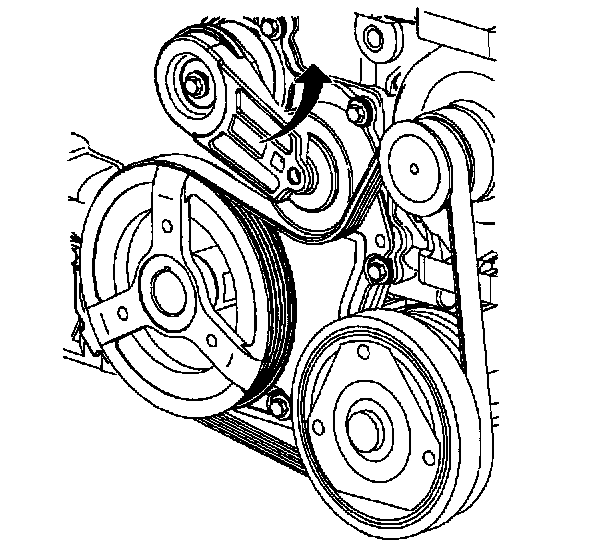

INSTALLATION





1. Install belt tensioner attachment bolts.
- Torque: 50 Nm (37 ft. lbs.)





2. Install accessory drive belt.
