Saturn
>>
2000
>>
LS L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Automatic Transmission/Transaxle
>>

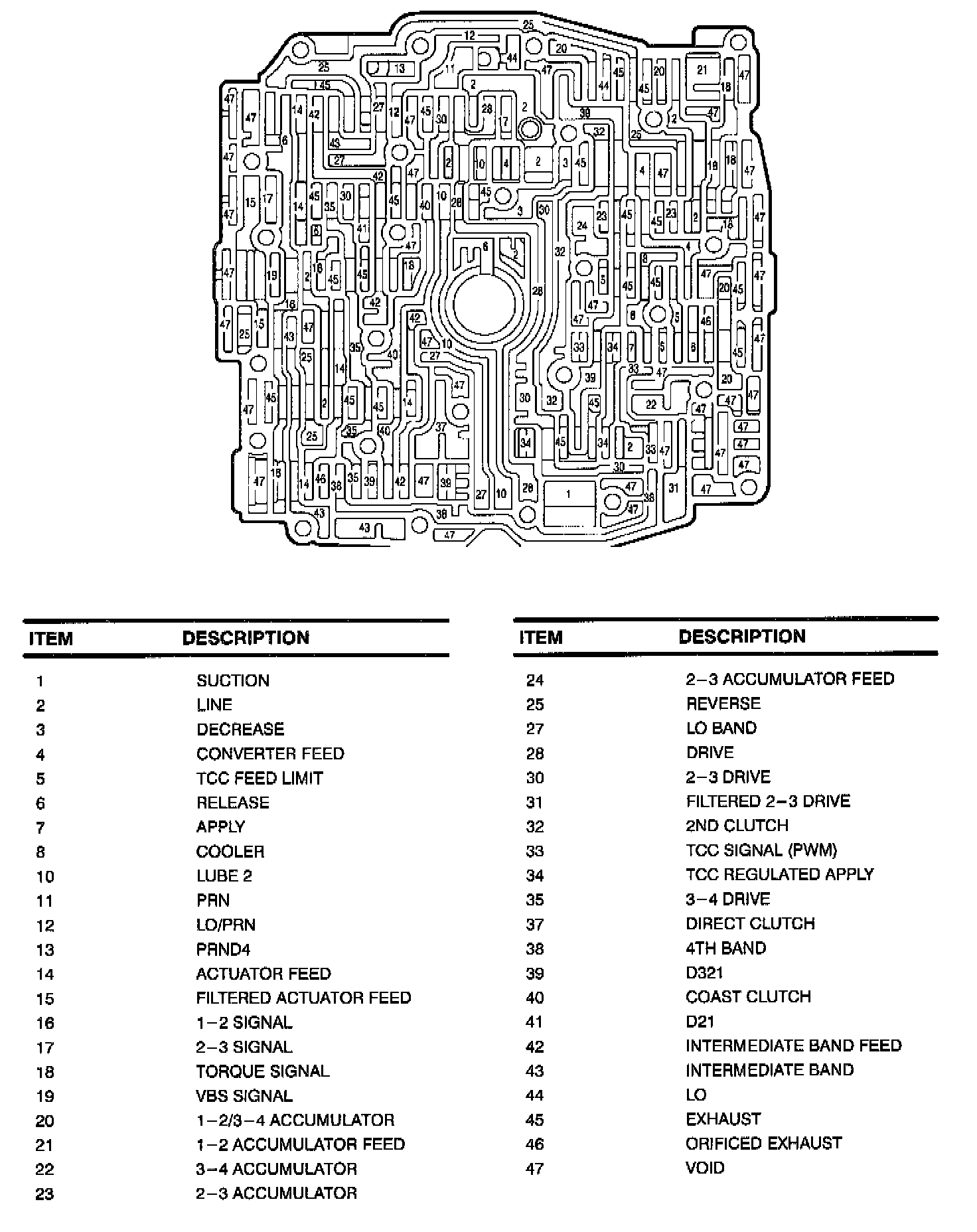

Control Valve Body (Channel Plate Side)
Control Valve Body (Channel Plate Side)
