Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> Channel Plate (Case Side)

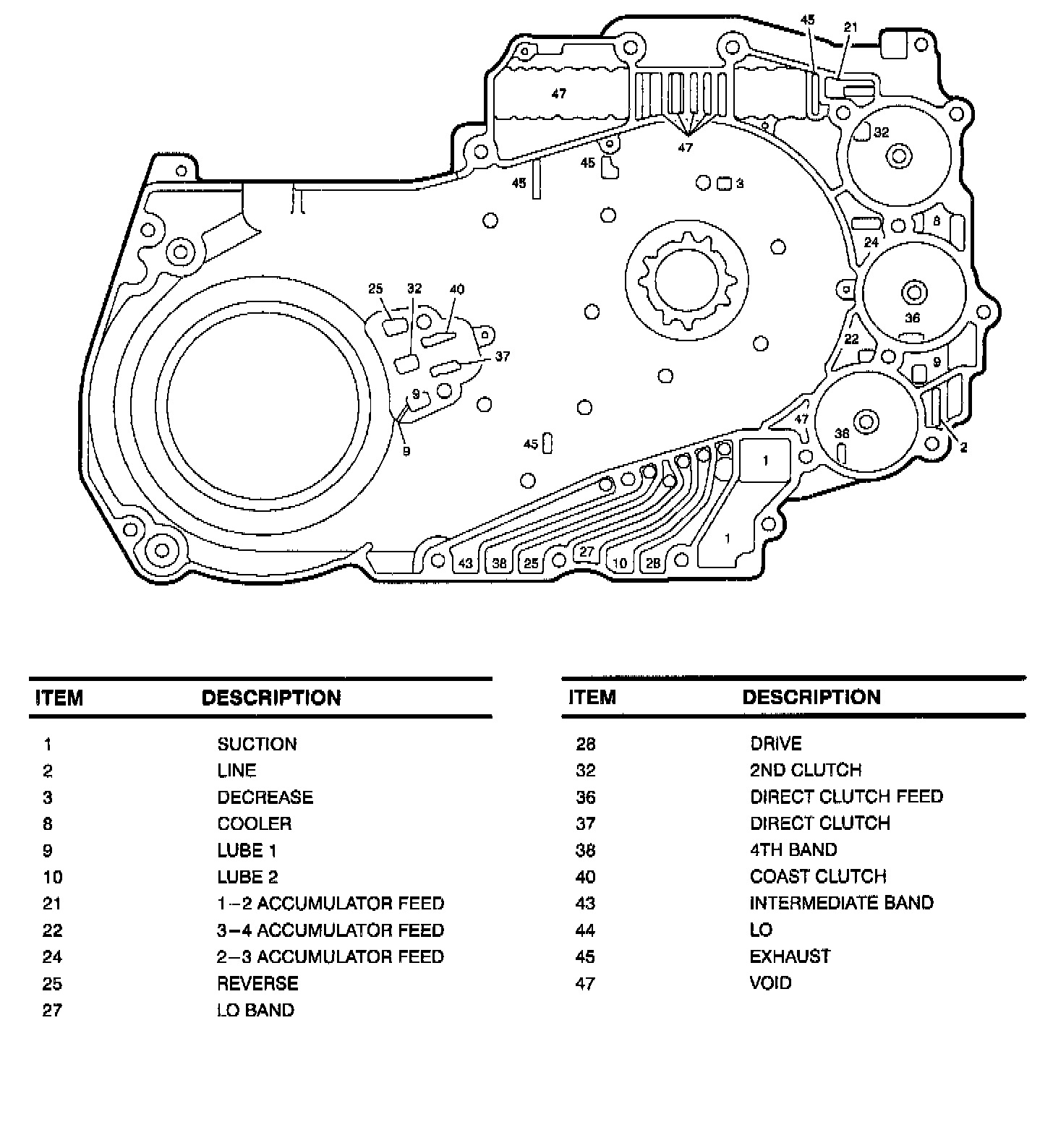

Channel Plate (Case Side)
