Automatic Transmission/Transaxle
>>

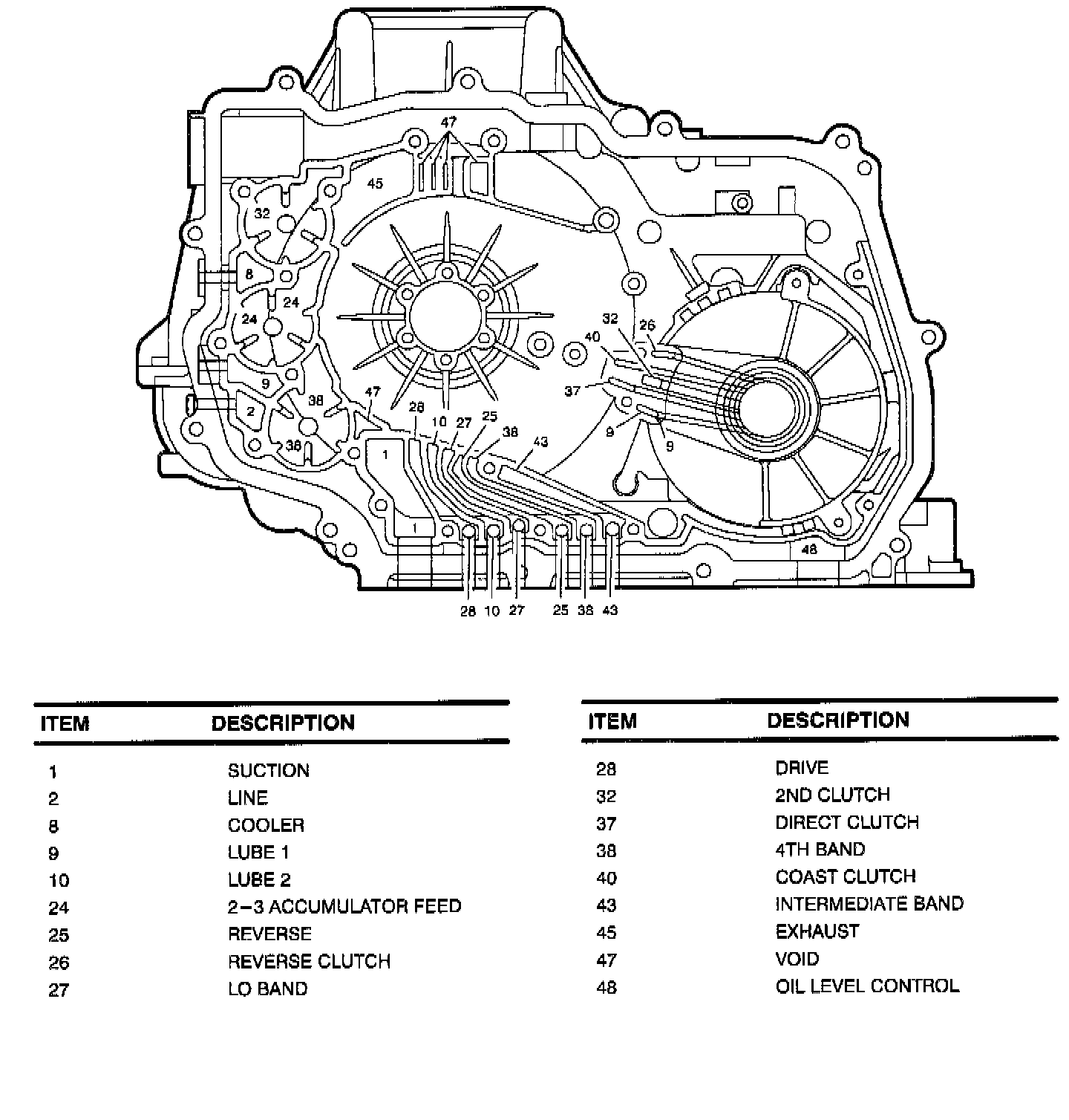

Case and Driven Sprocket Support (Channel Plate Side)
Case and Driven Sprocket Support (Channel Plate Side)
