Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems

Wiper and Washer Systems

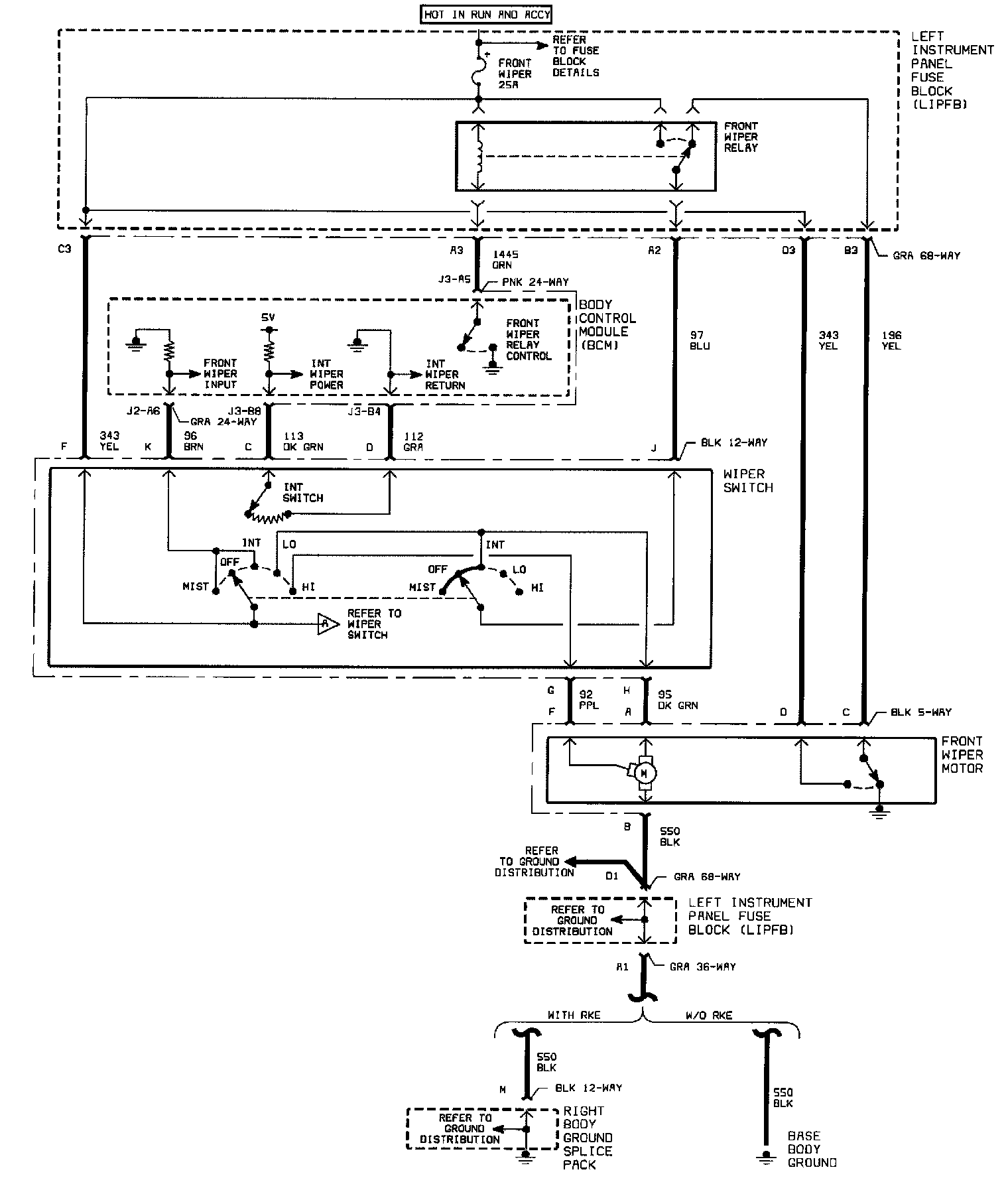

Wiper/Washer Schematics - Front:
