Starting and Charging Systems

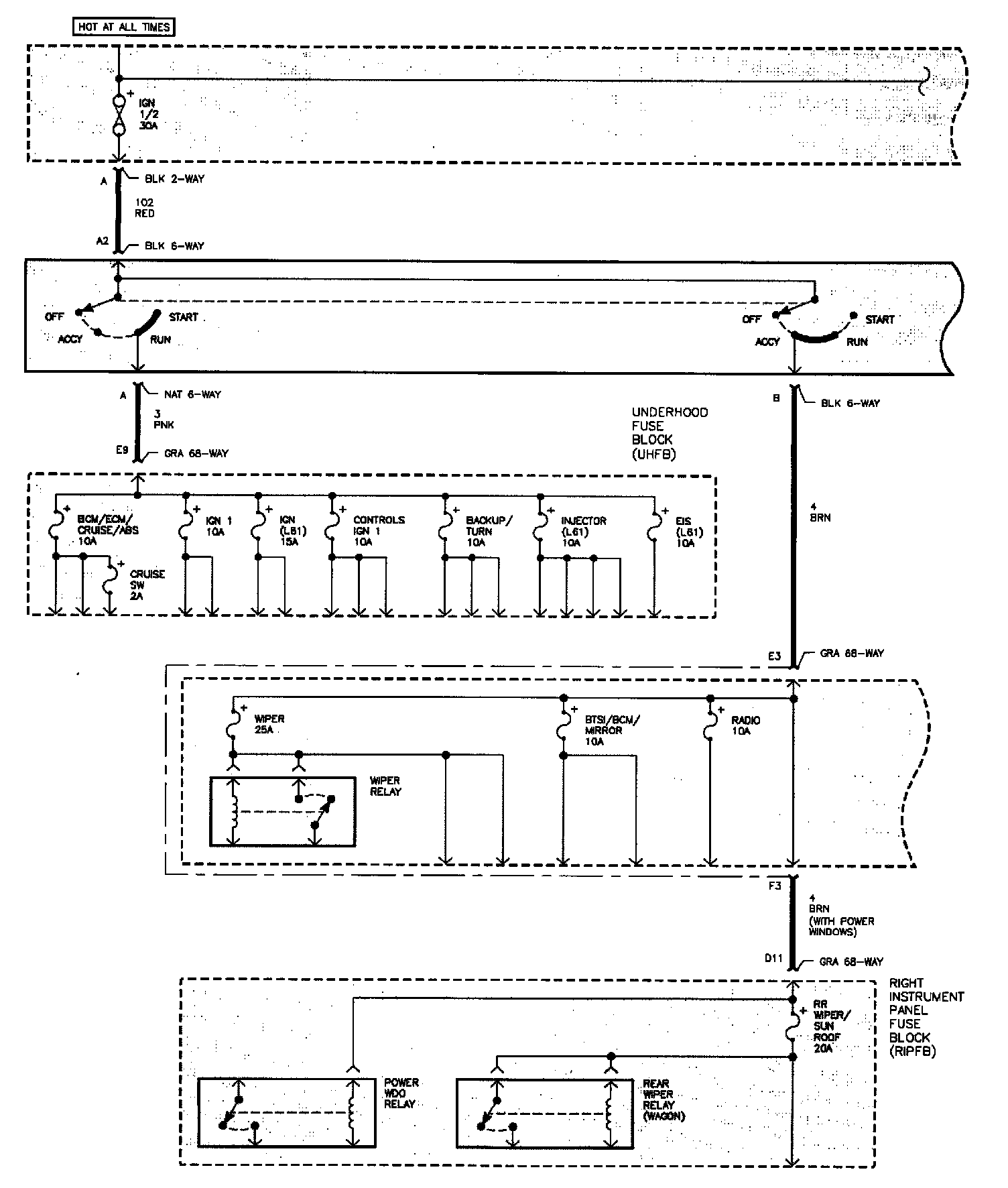

Starting And Charging Schematics (Part 1 Of 4):

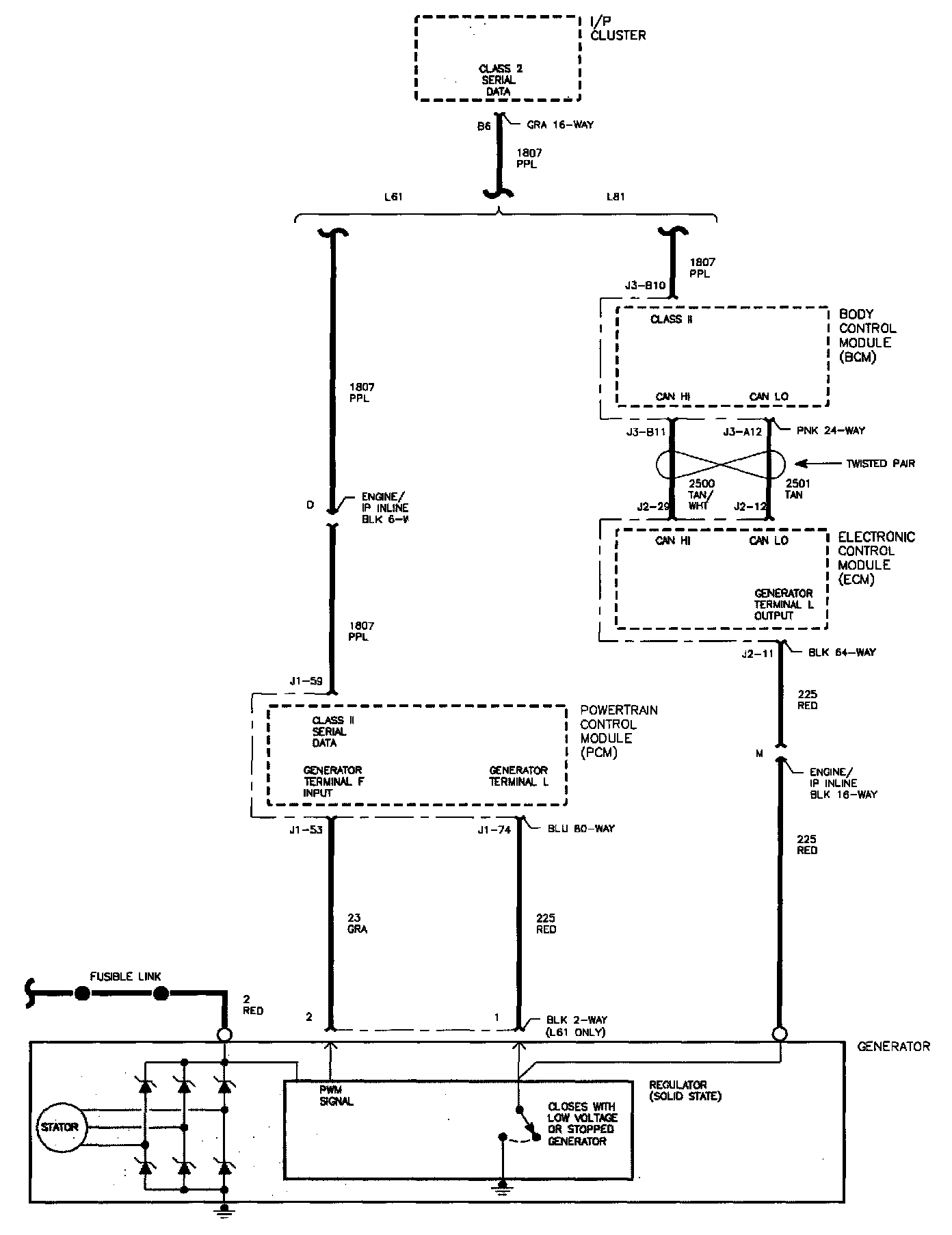

Starting And Charging Schematics (Part 2 Of 4):

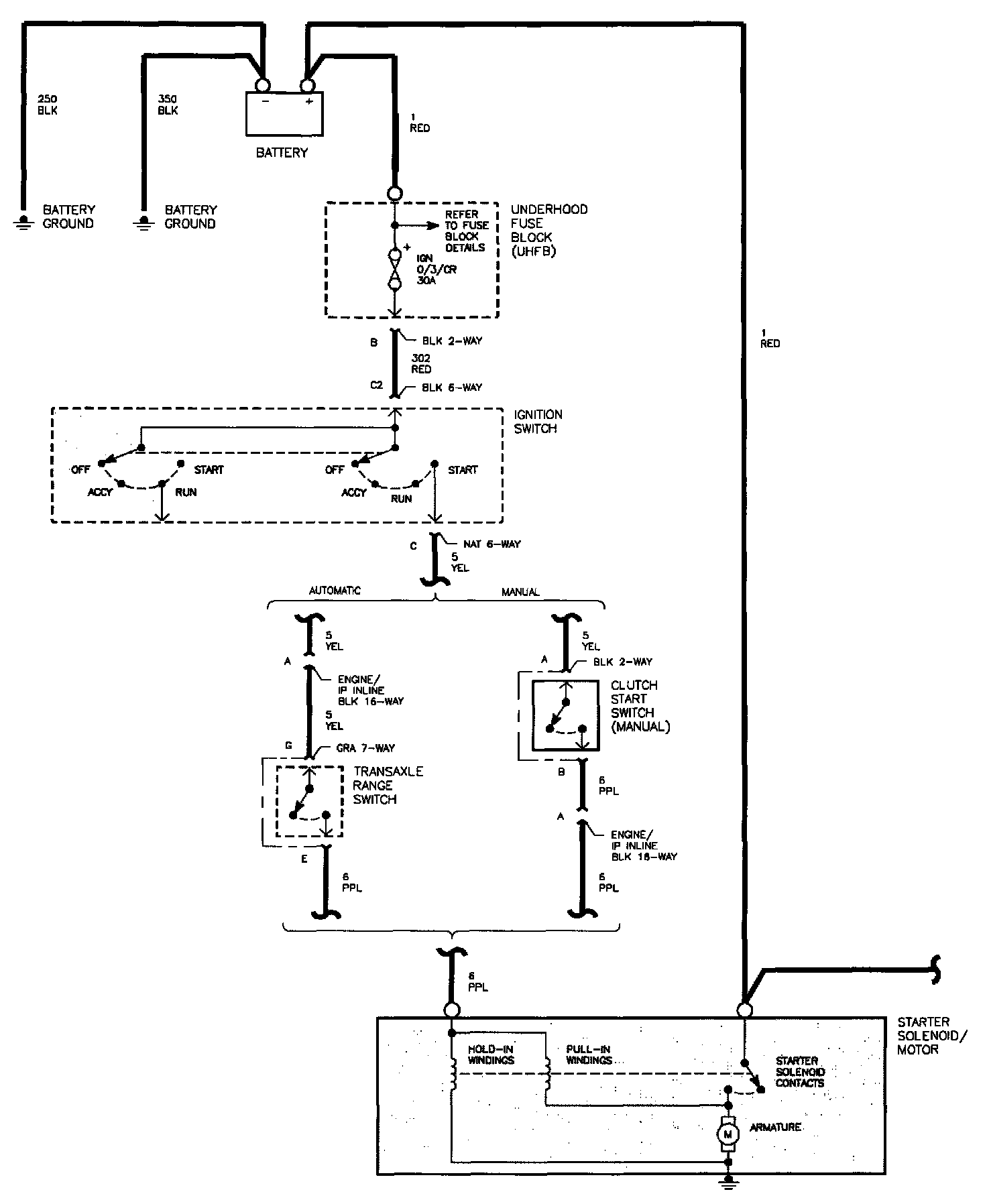

Starting And Charging Schematics (Part 3 Of 4):

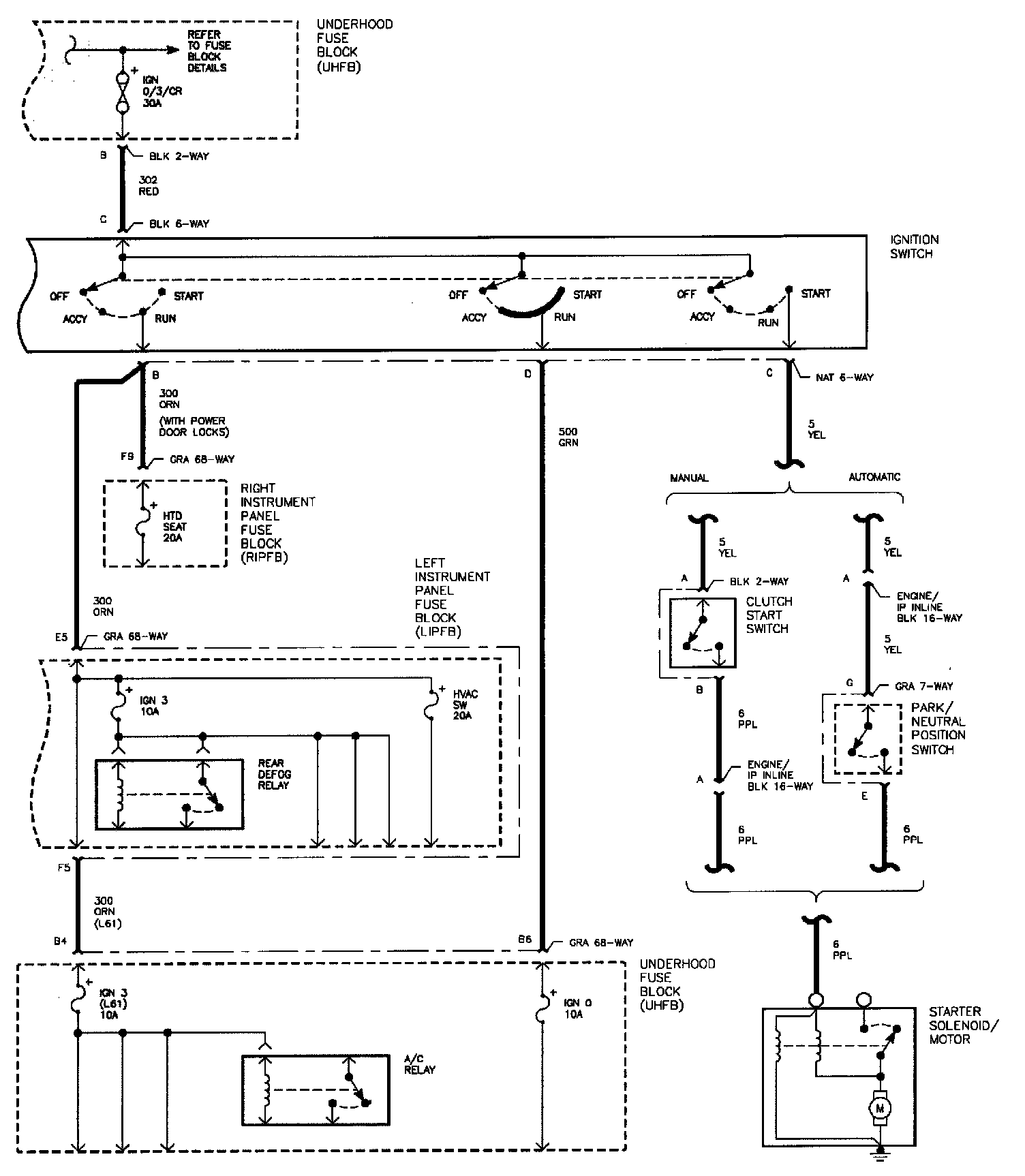

Starting And Charging Schematics (Part 4 Of 4):
