Right Body Ground Splice Pack

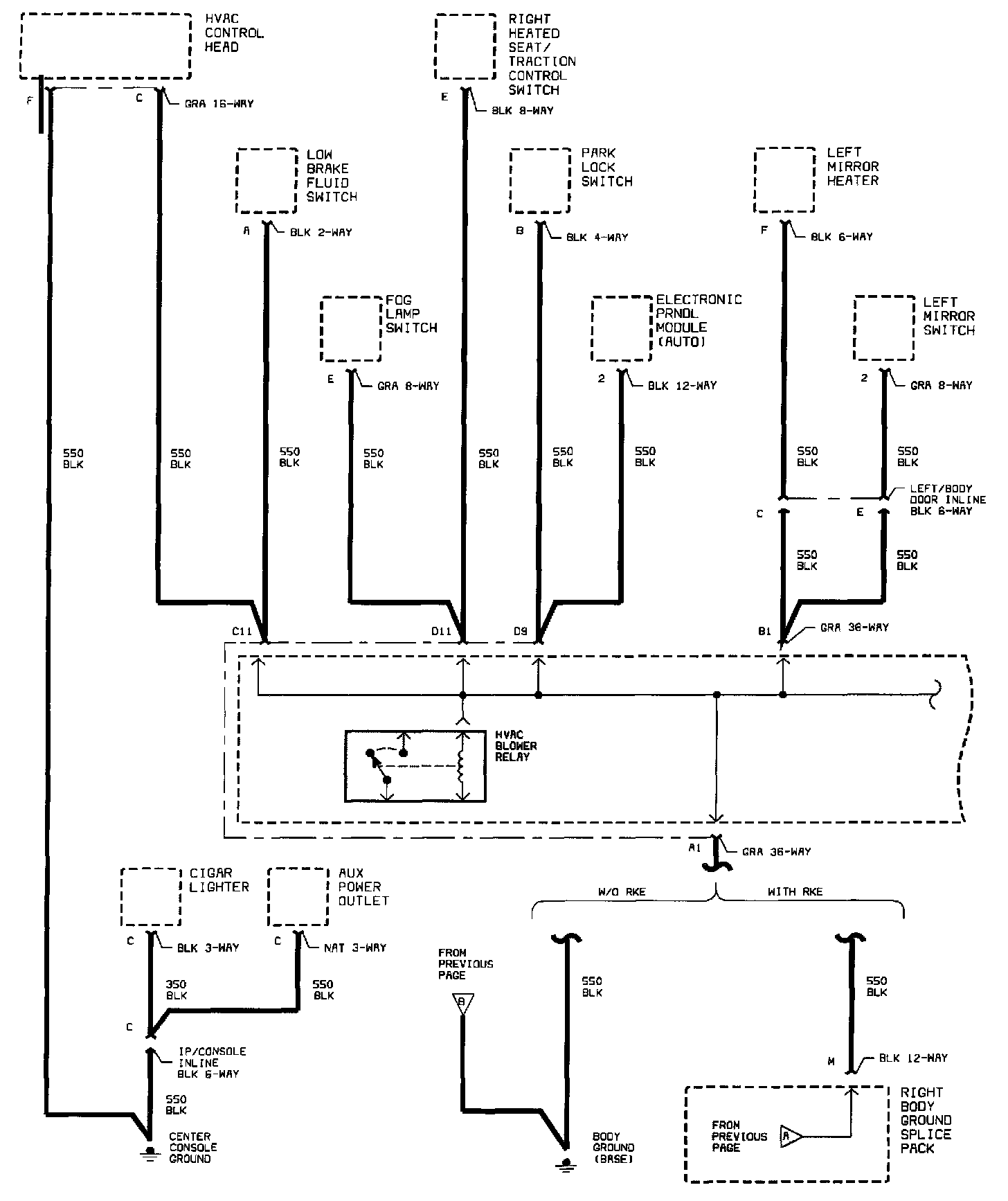

Ground Distribution Schematics (Part 7 Of 12):

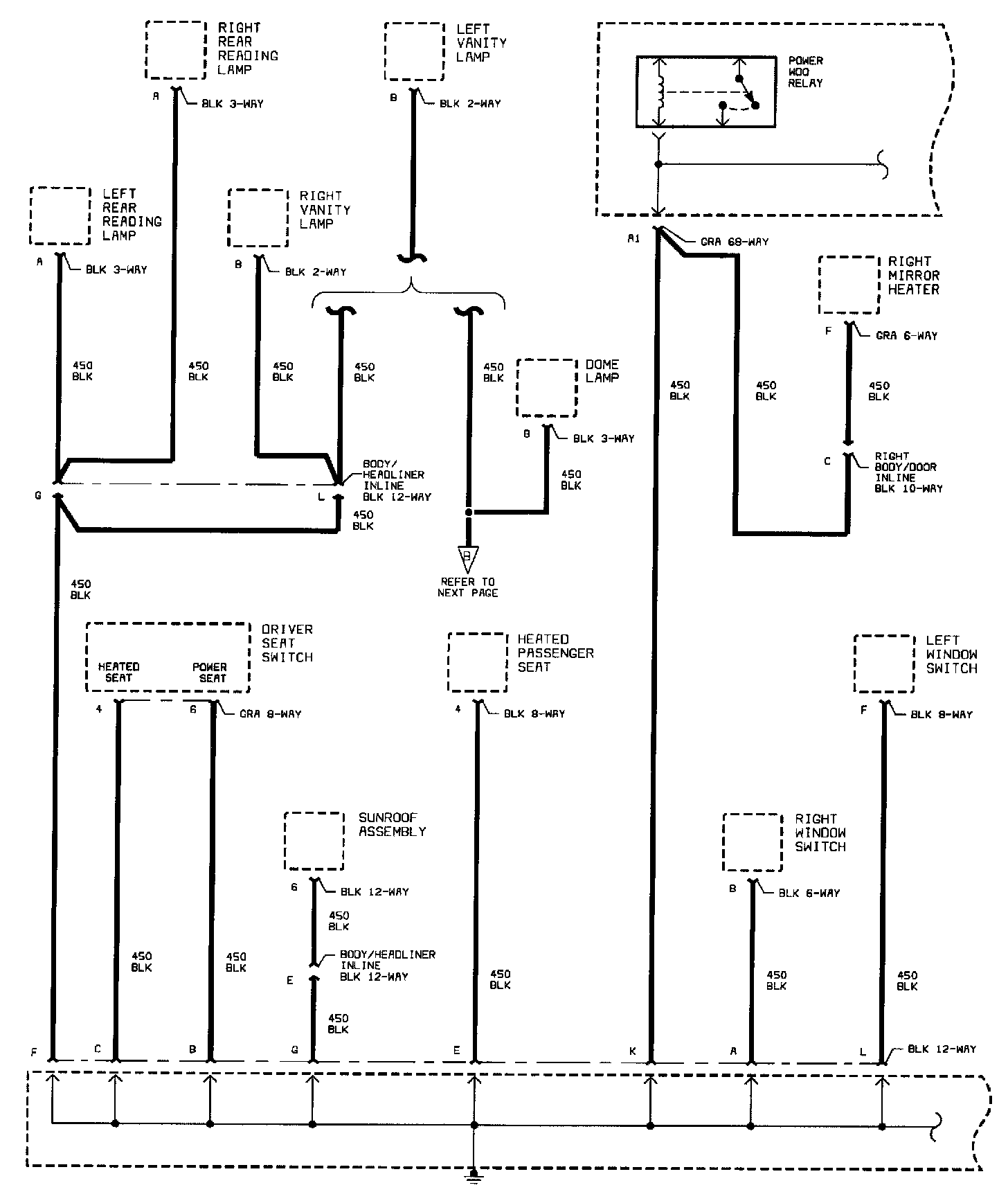

Ground Distribution Schematics (Part 8 Of 12):

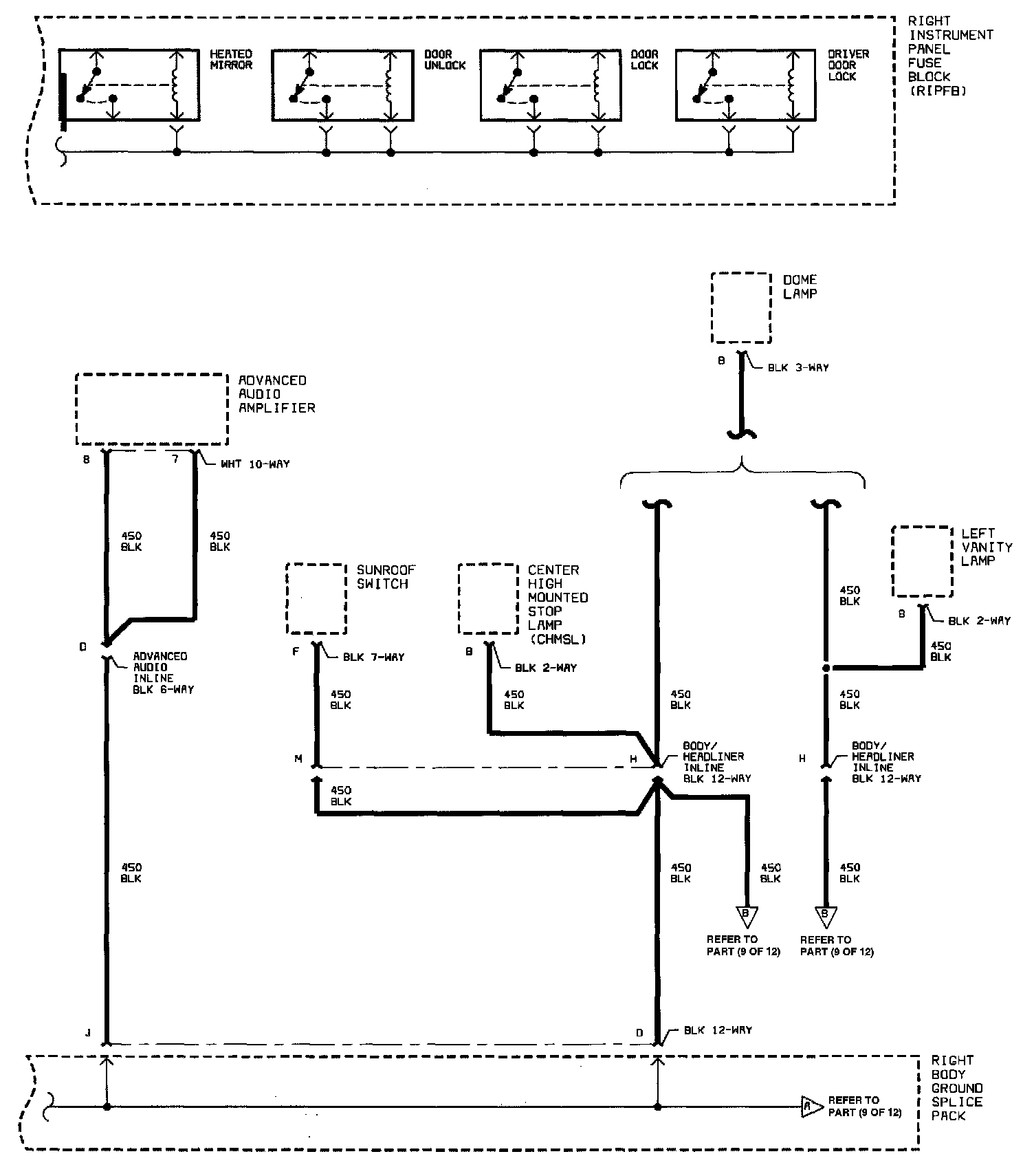

Ground Distribution Schematics (Part 9 Of 12):

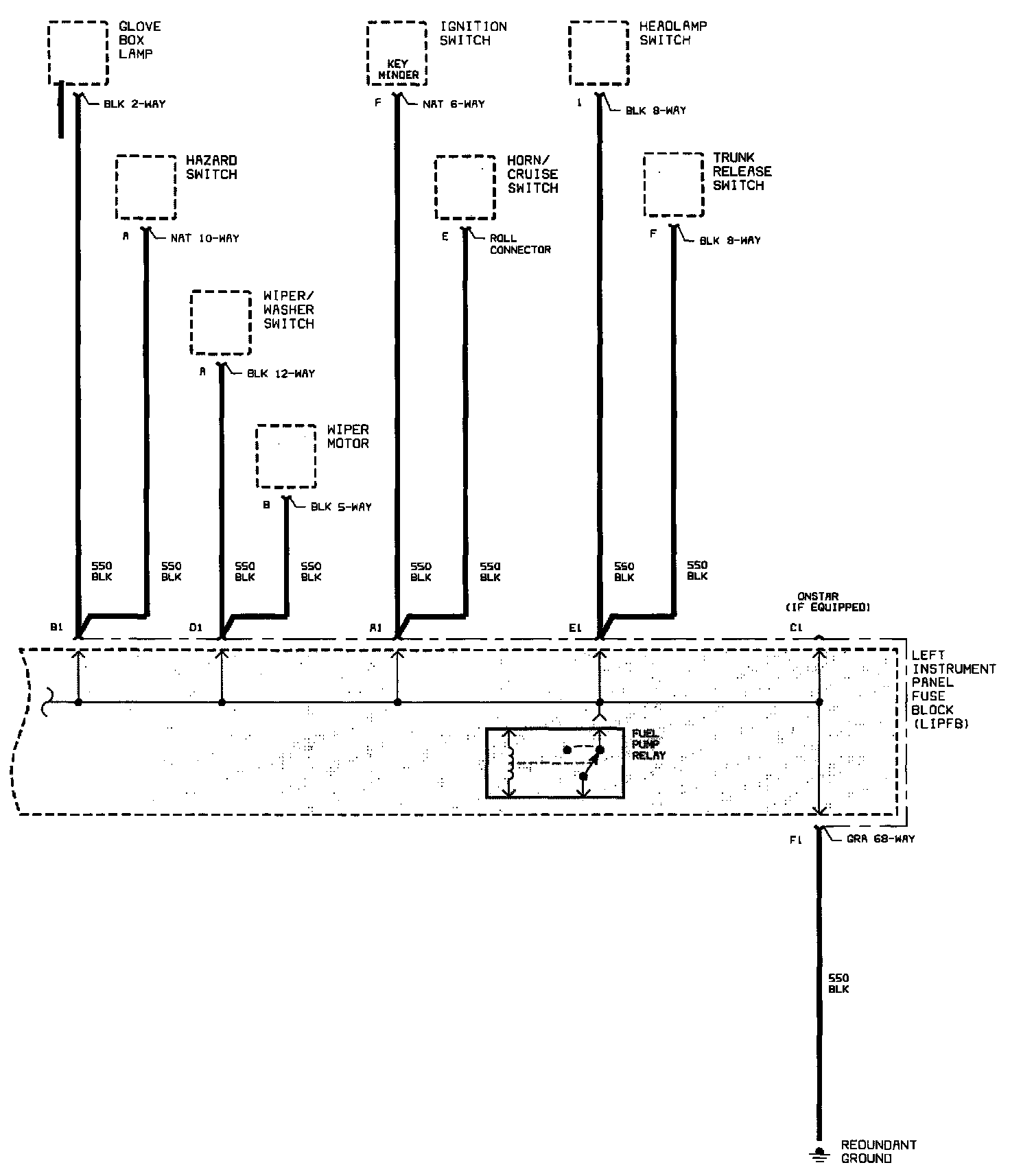

Ground Distribution Schematics (Part 10 Of 12):
