Forward Lamp Splice Pack

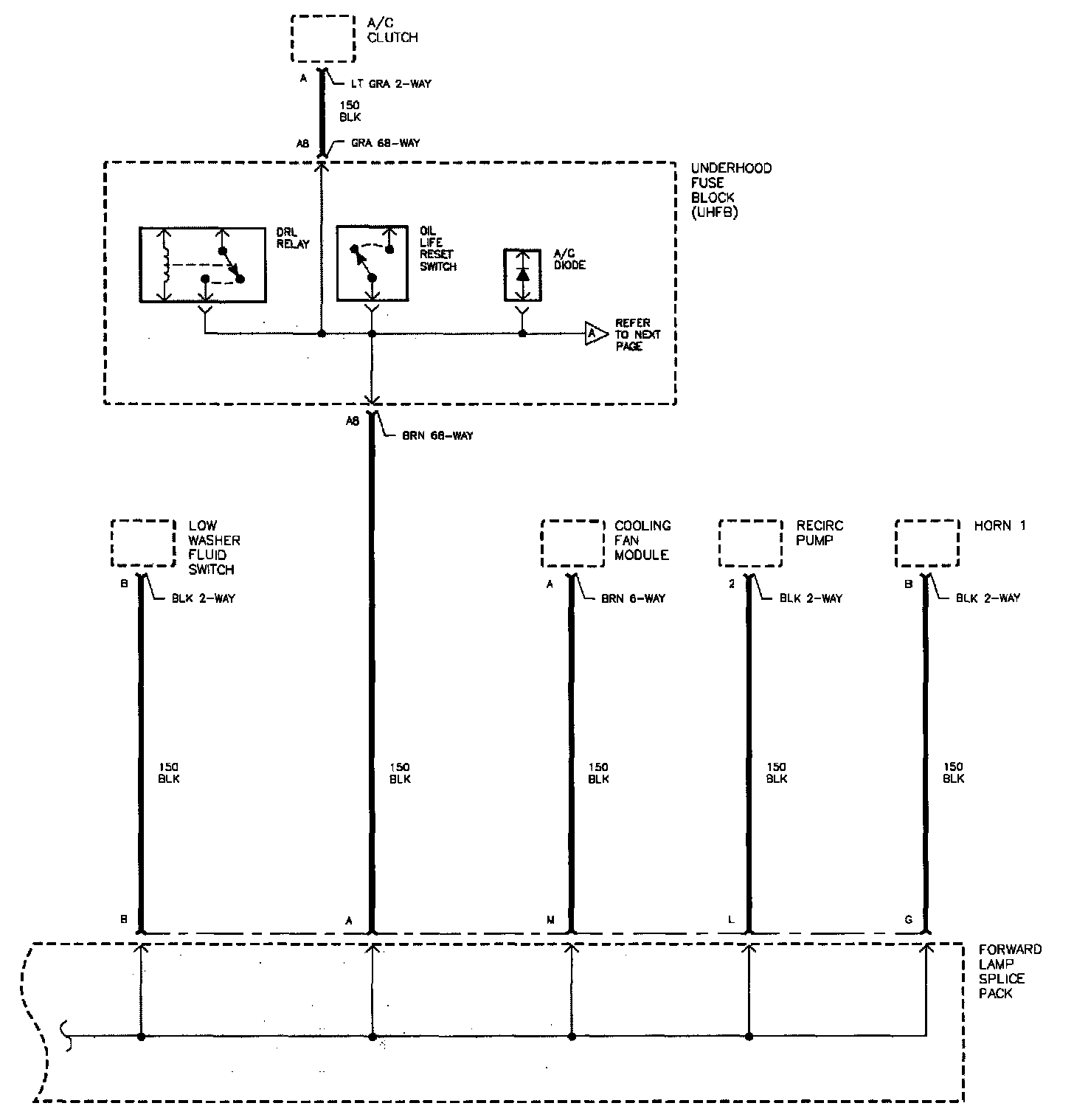

Ground Distribution Schematics (Part 1 Of 12):



Ground Distribution Schematics (Part 2 Of 12):
