Radio (Audio) Advanced Audio System Schematic
Radio (Audio) Advanced Audio System Schematic

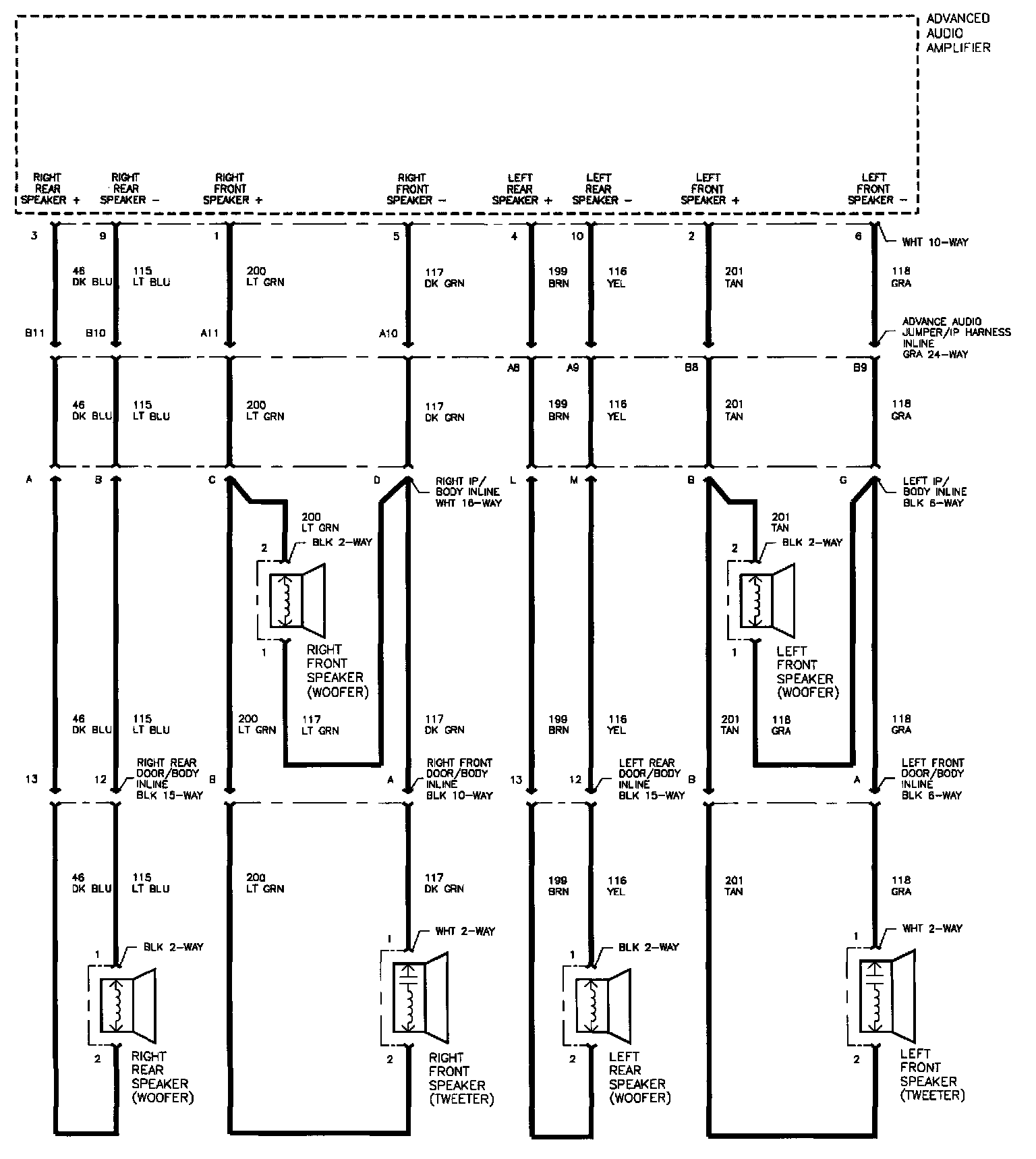

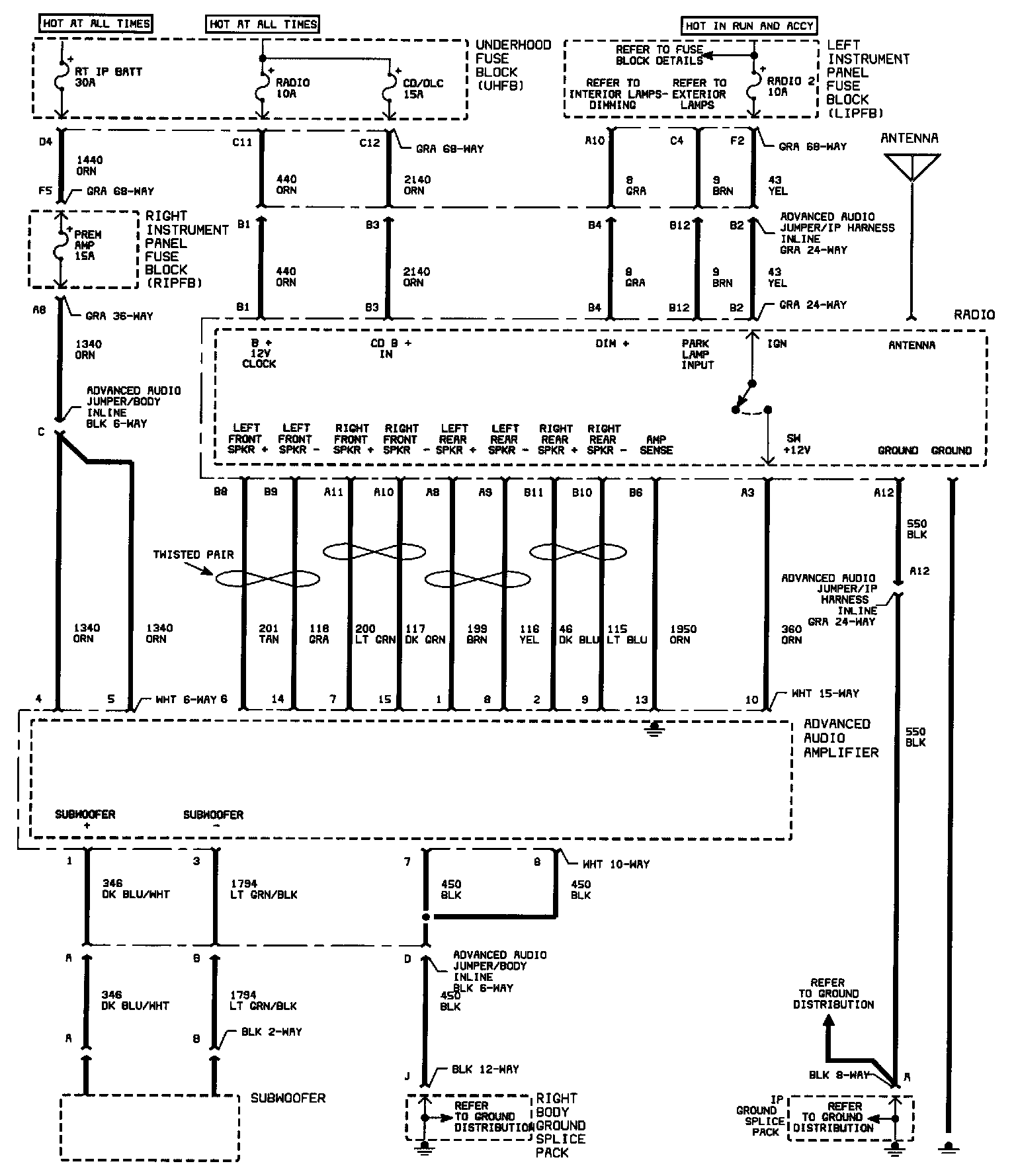

Radio (Auio) Advanced Audio System Schematic (Part 1 Of 2):
Radio (Audio) Connector Face Views (Part 2 Of 2):
