Interior Lights Dimming Schematics

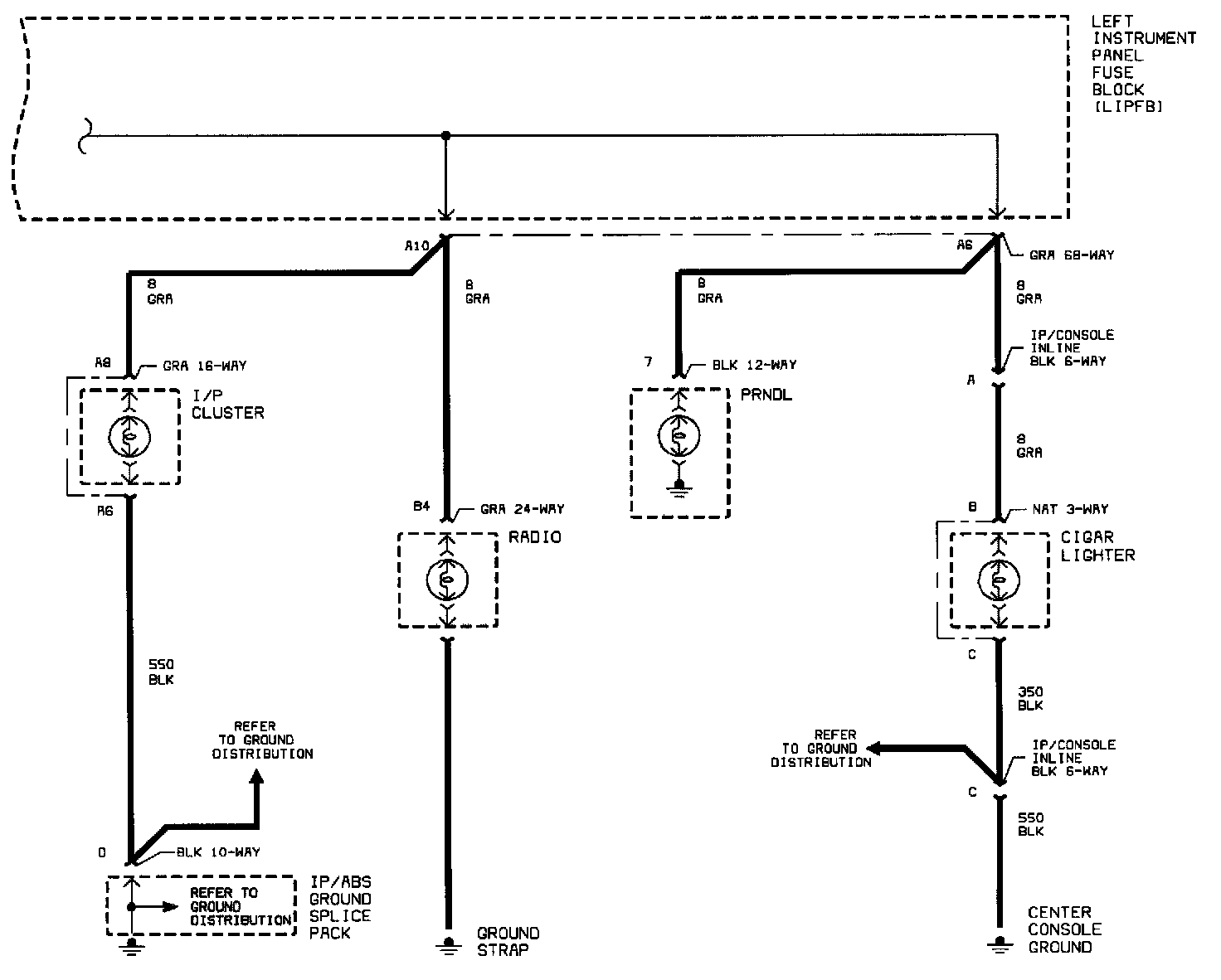

Interior Lamps Dimming Schematics (Part 1 Of 2):

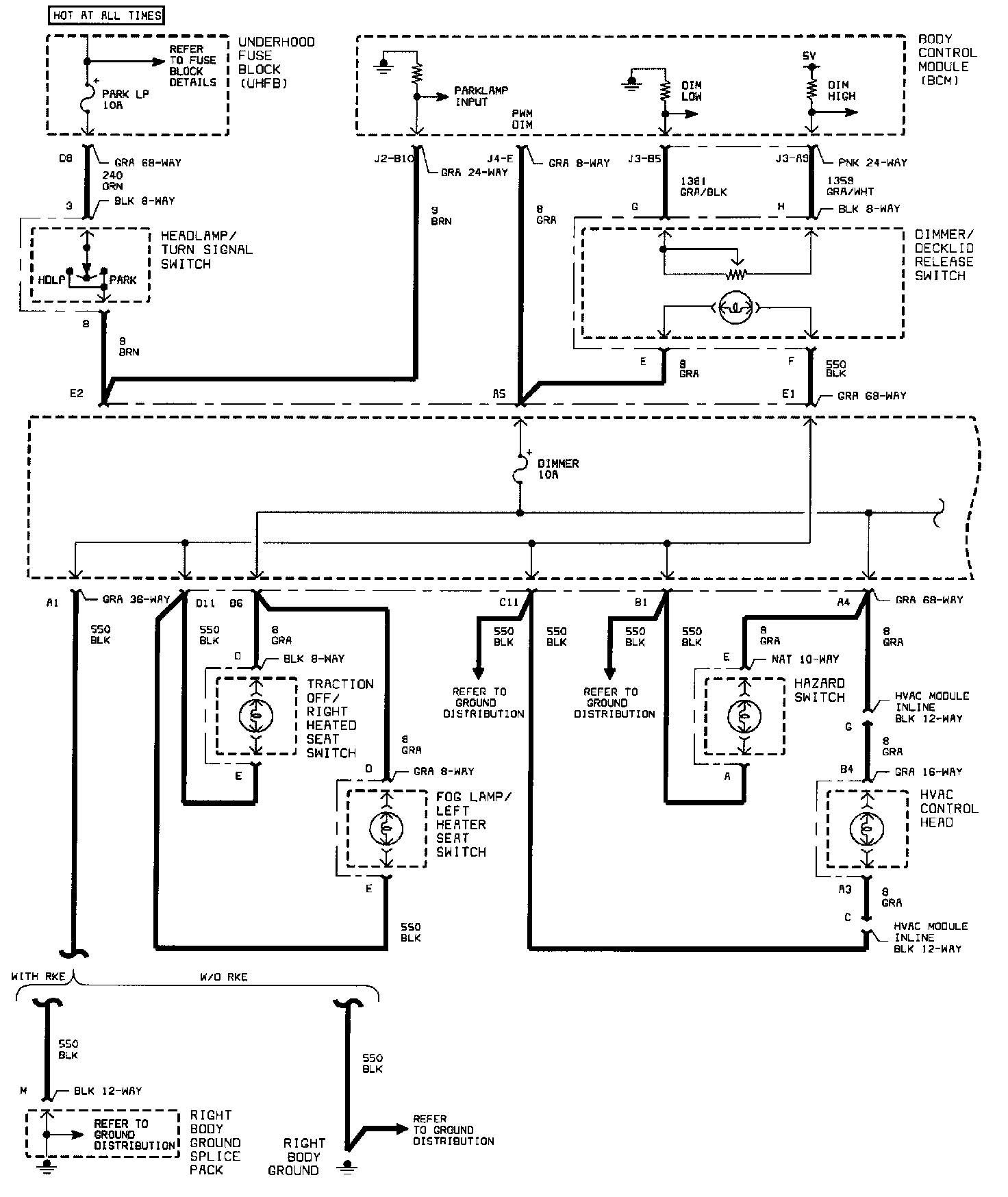

Interior Lamps Dimming Schematics (Part 2 Of 2):
