Exterior Lights

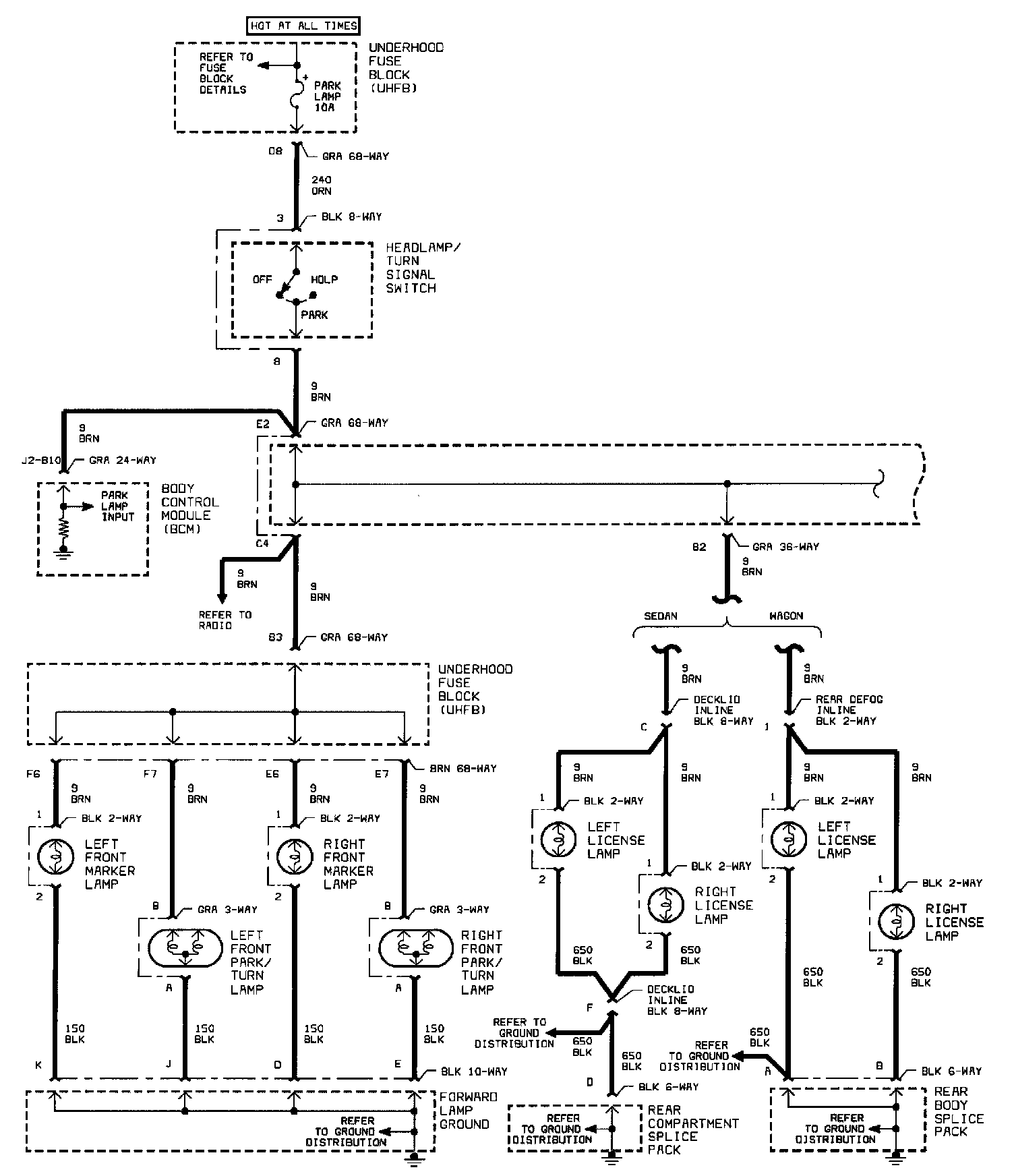

Exterior Lamps Schematics (Part 1 Of 5):

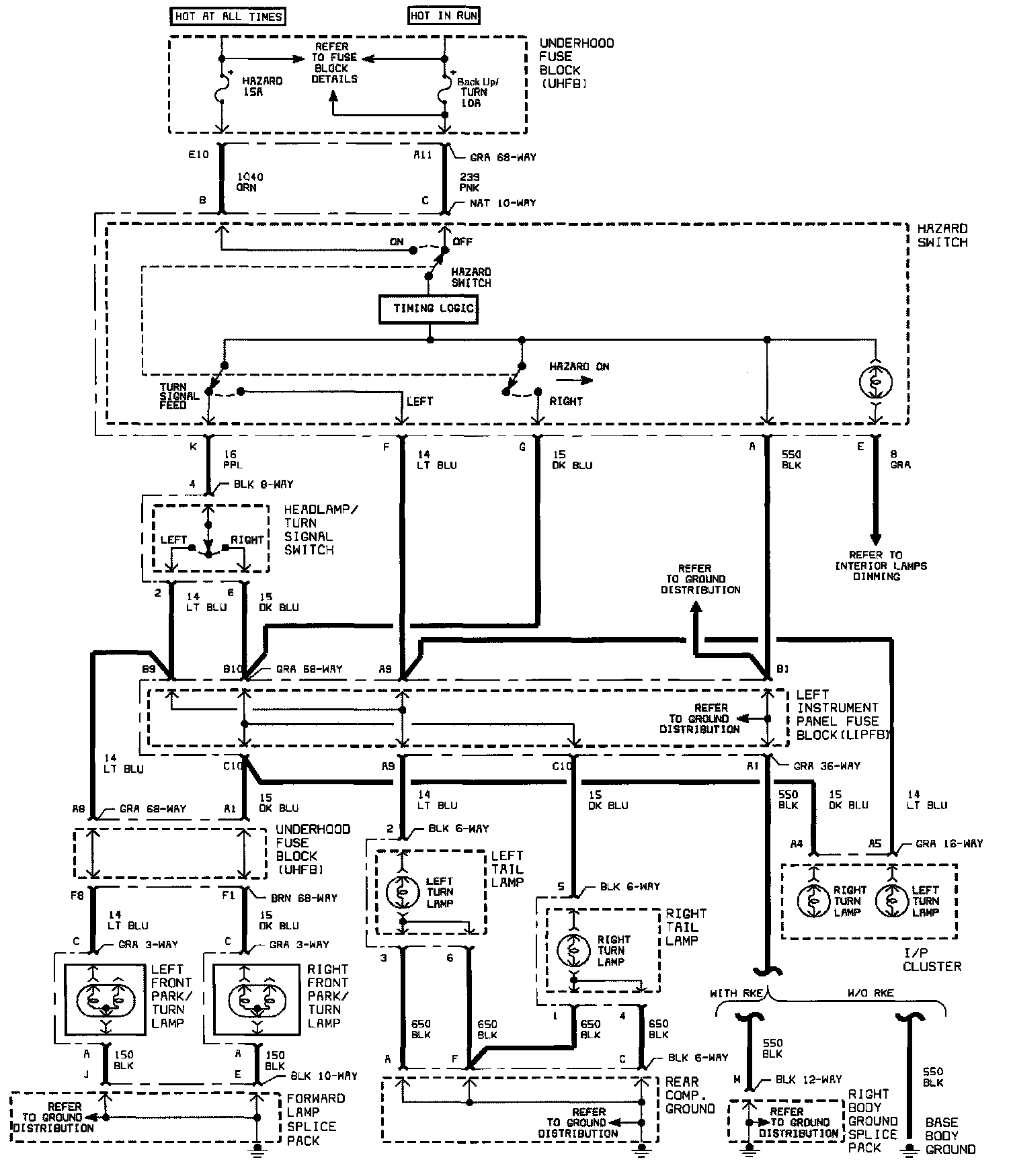

Exterior Lamps Schematics (Part 2 Of 5):

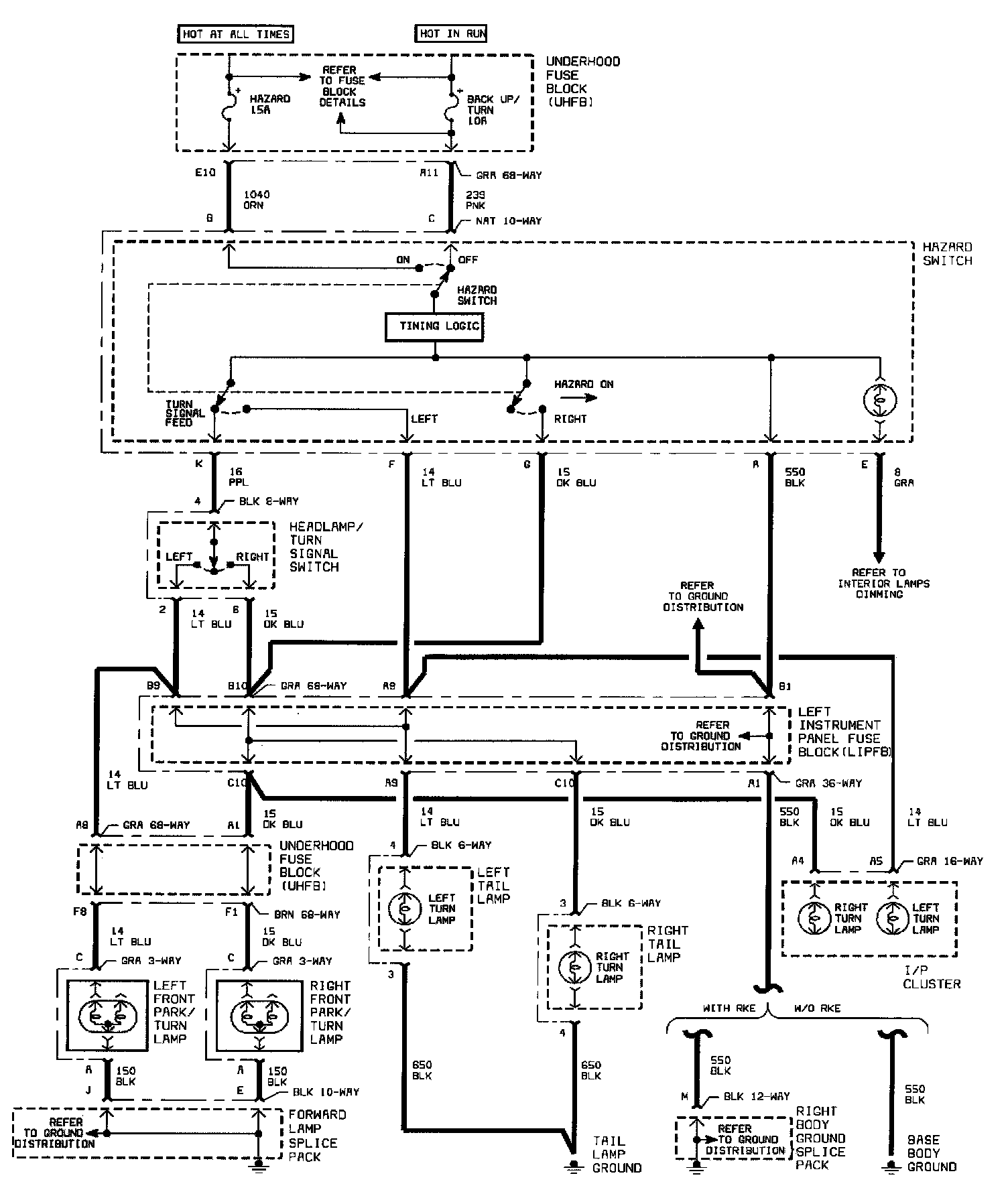

Exterior Lamps Schematics (Part 3 Of 5):

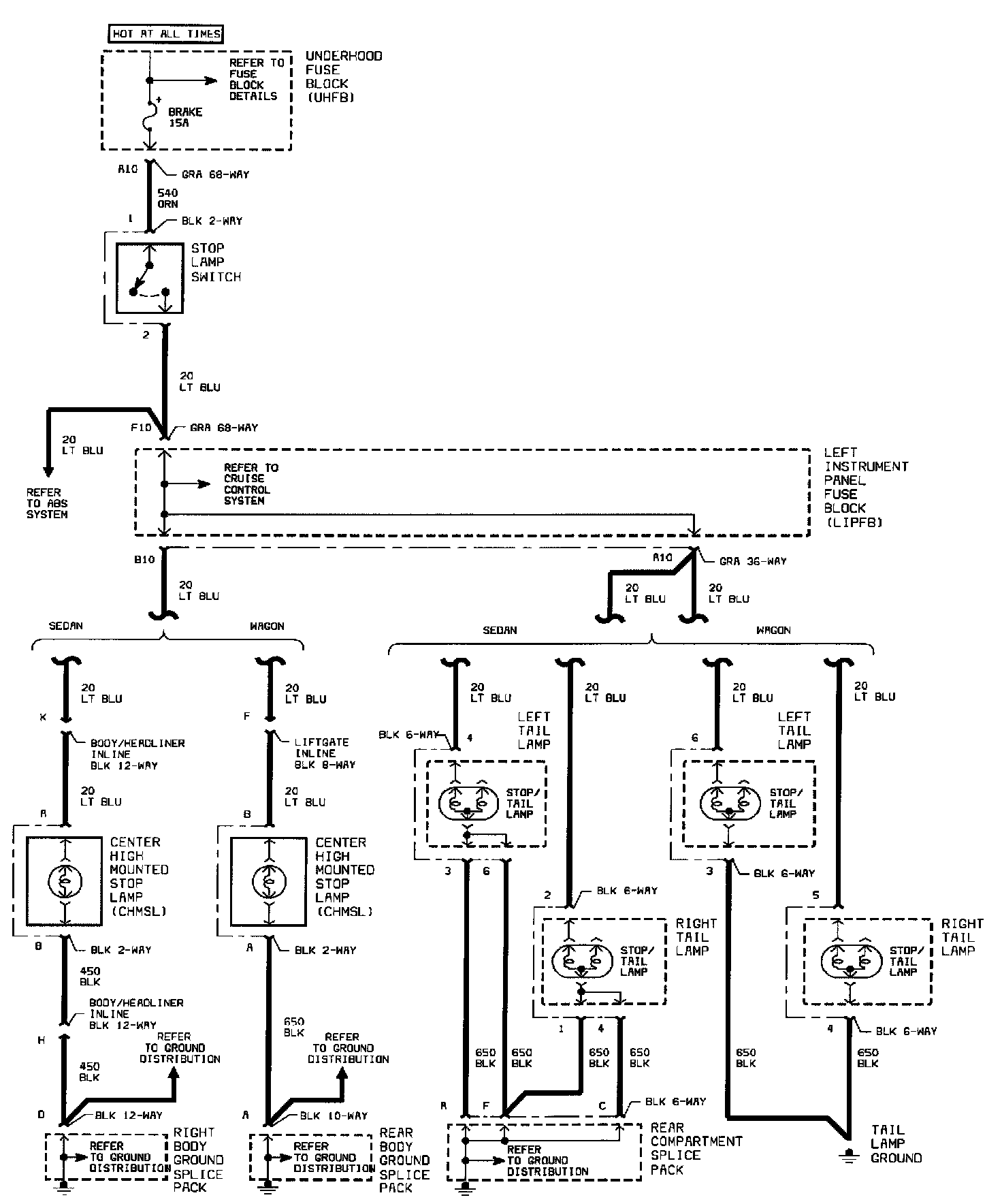

Exterior Lamps Schematics (Part 4 Of 5):

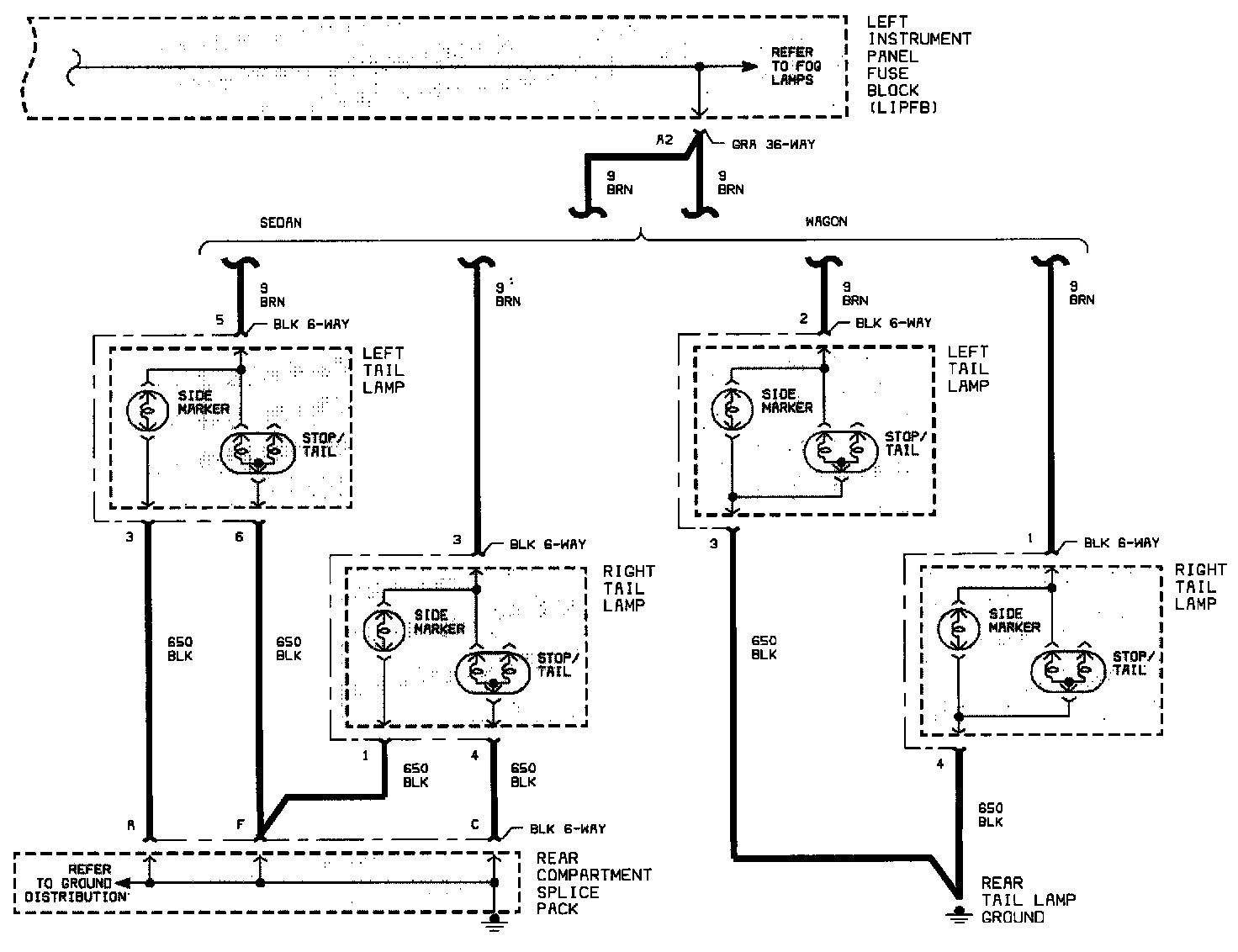

Exterior Lamps Schematics (Part 5 Of 5):
