System Diagram
System Diagram

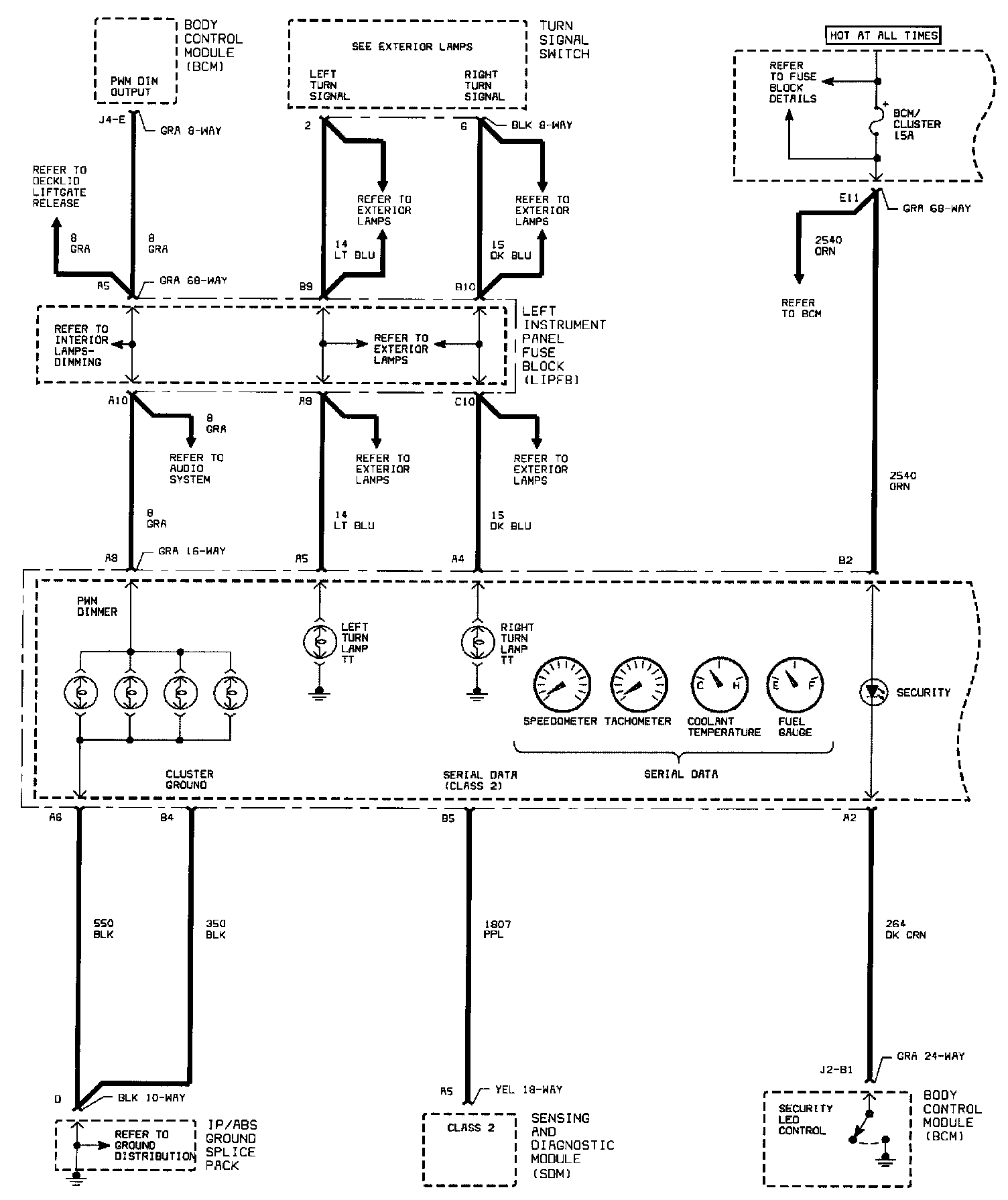

Instrument Panel Cluster Schematics (Part 1 Of 3):

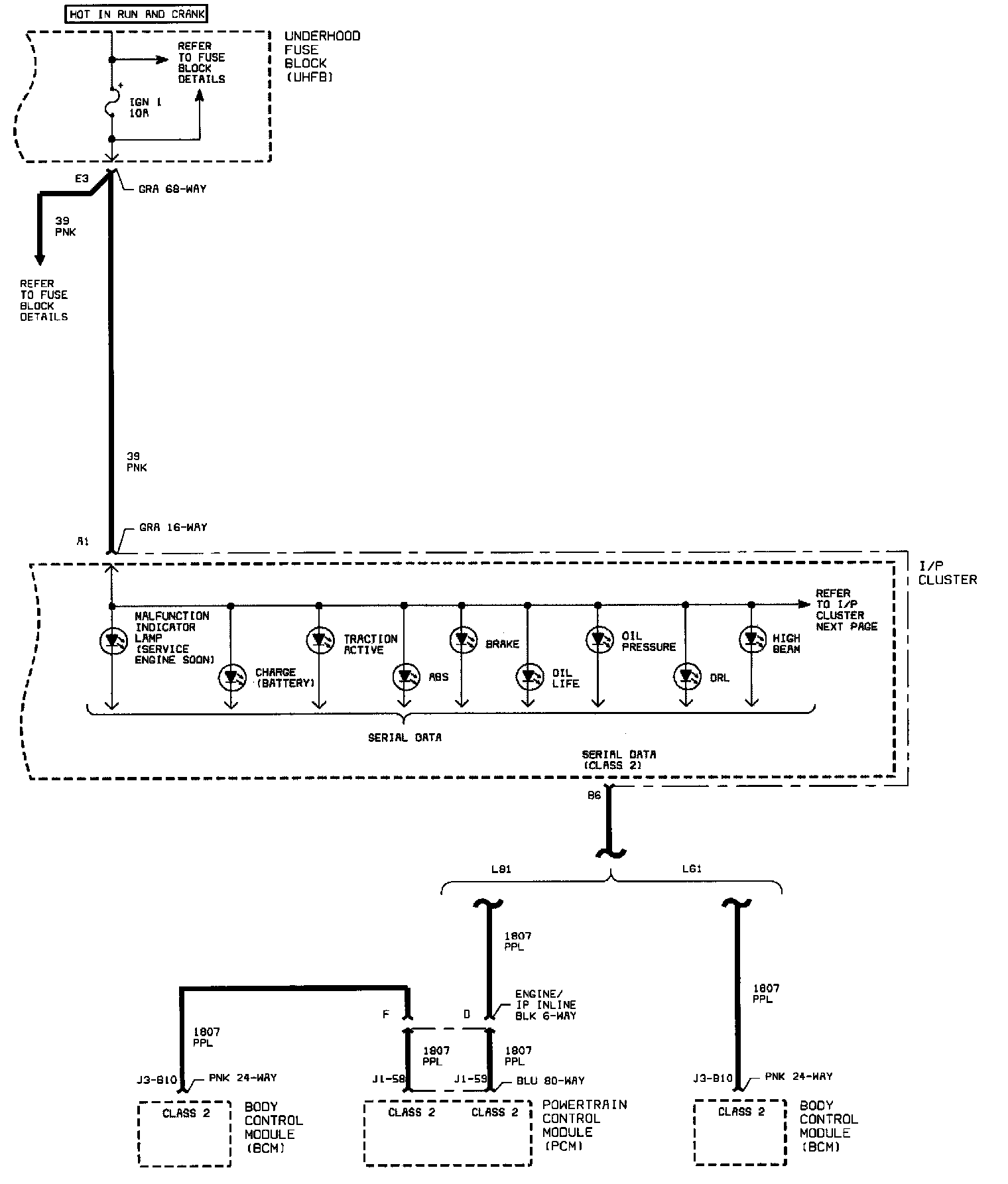

Instrument Panel Cluster Schematics (Part 2 Of 3):
Instrument Panel Cluster Schematics (Part 3 Of 3):
