Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element

Heated Glass Element

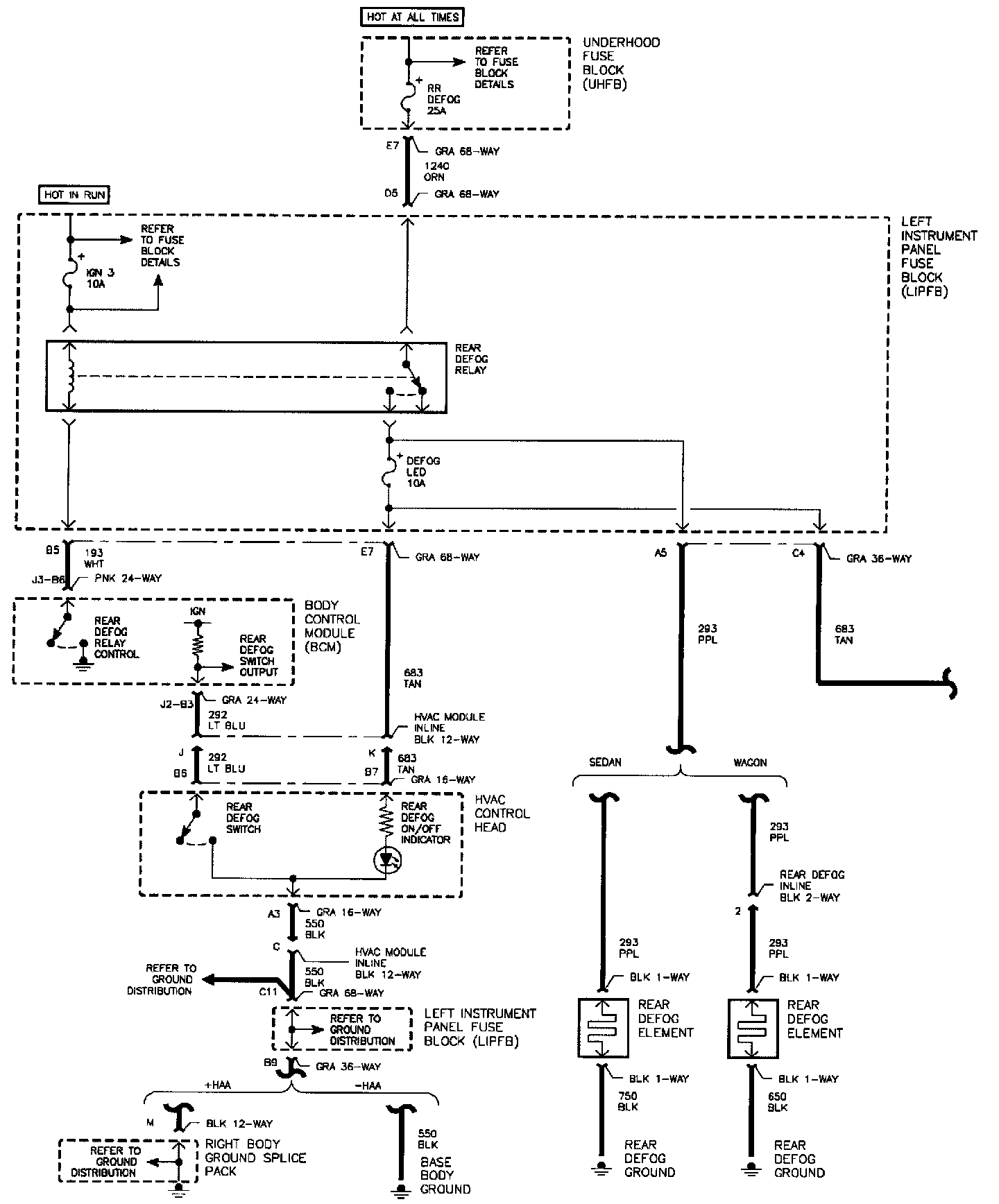

Rear Defog/Heated Mirrors Schematic (Part 1 Of 2):

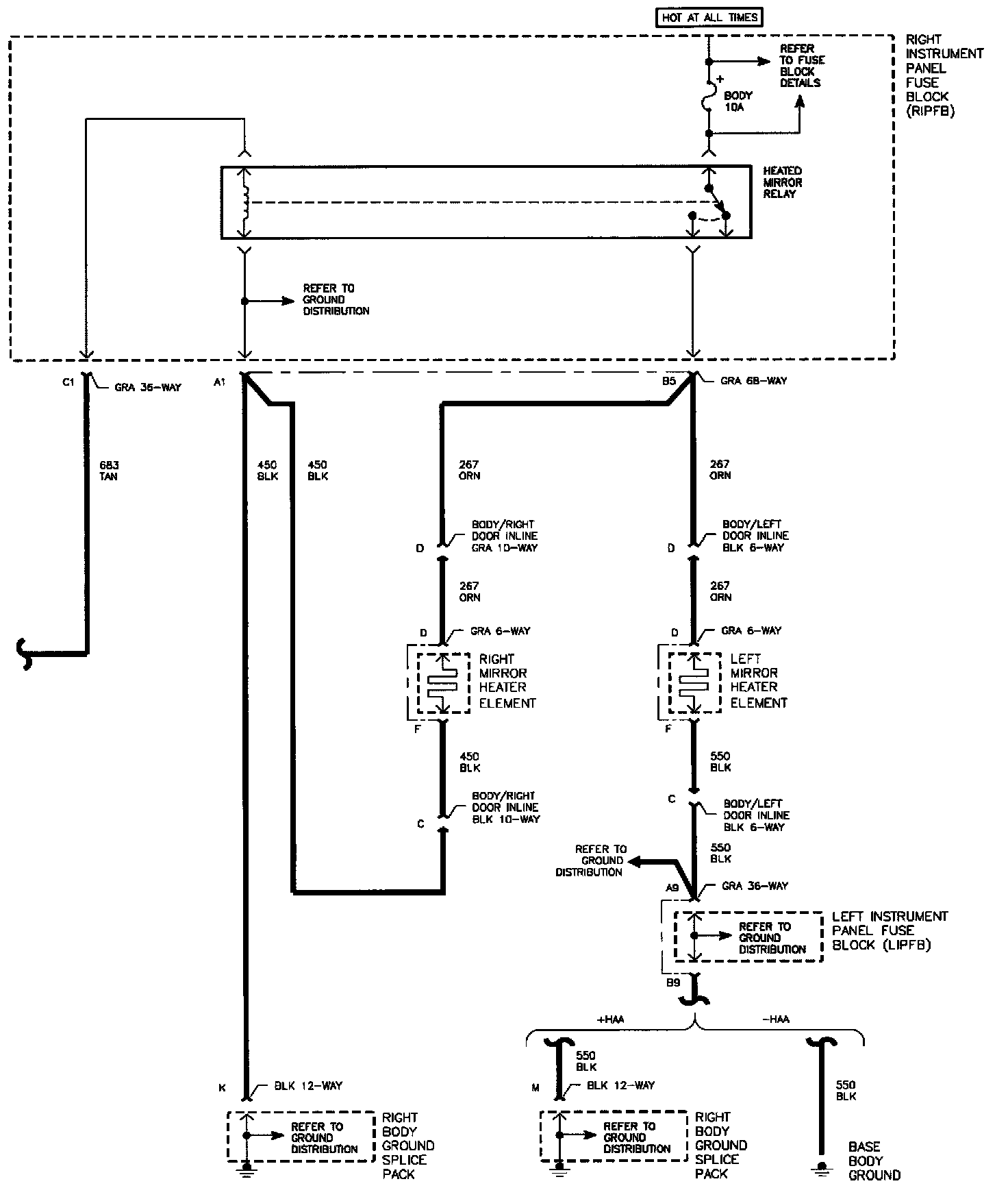

Rear Defog/Heated Mirrors Schematic (Part 2 Of 2):
