Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram

System Diagram

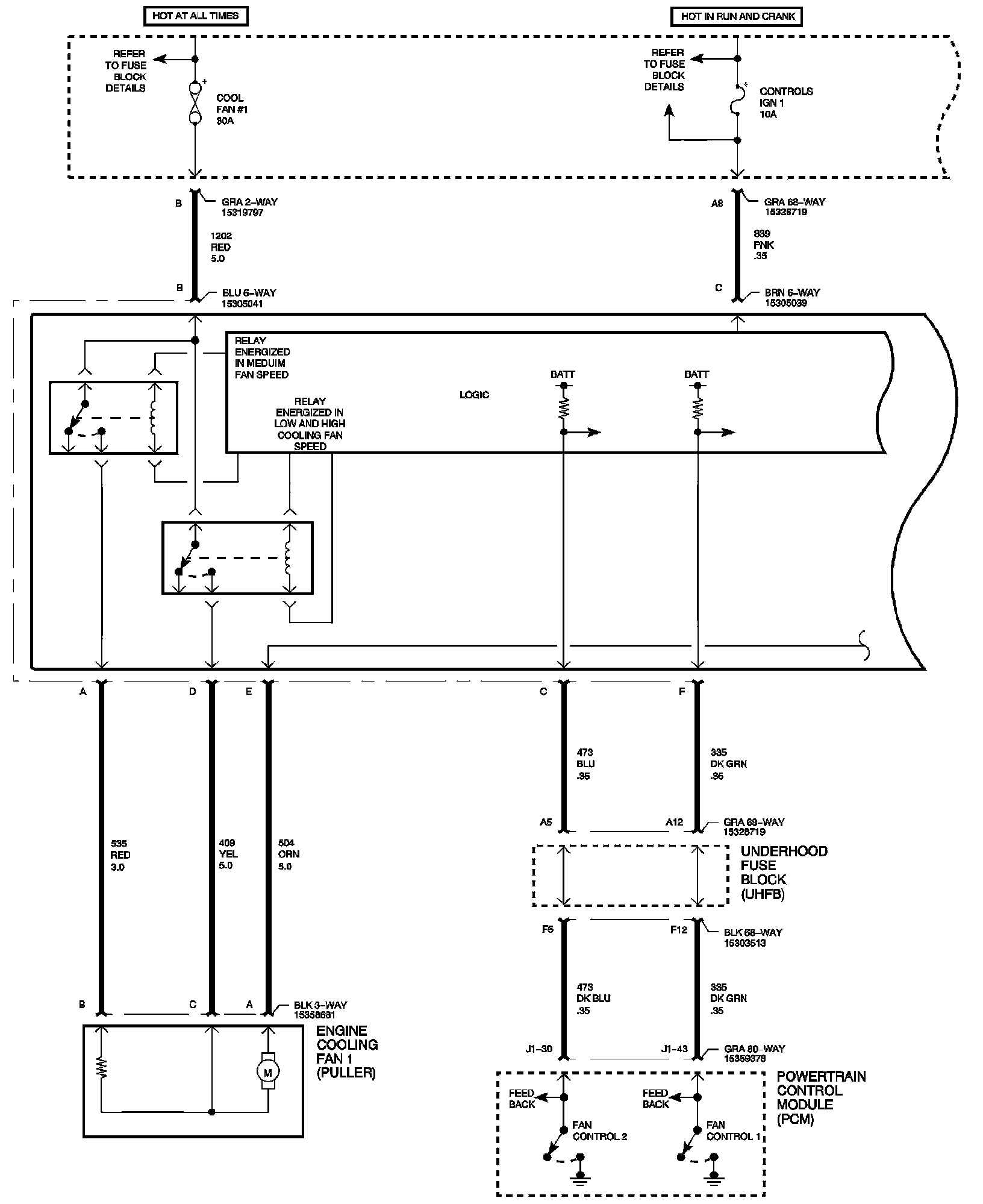

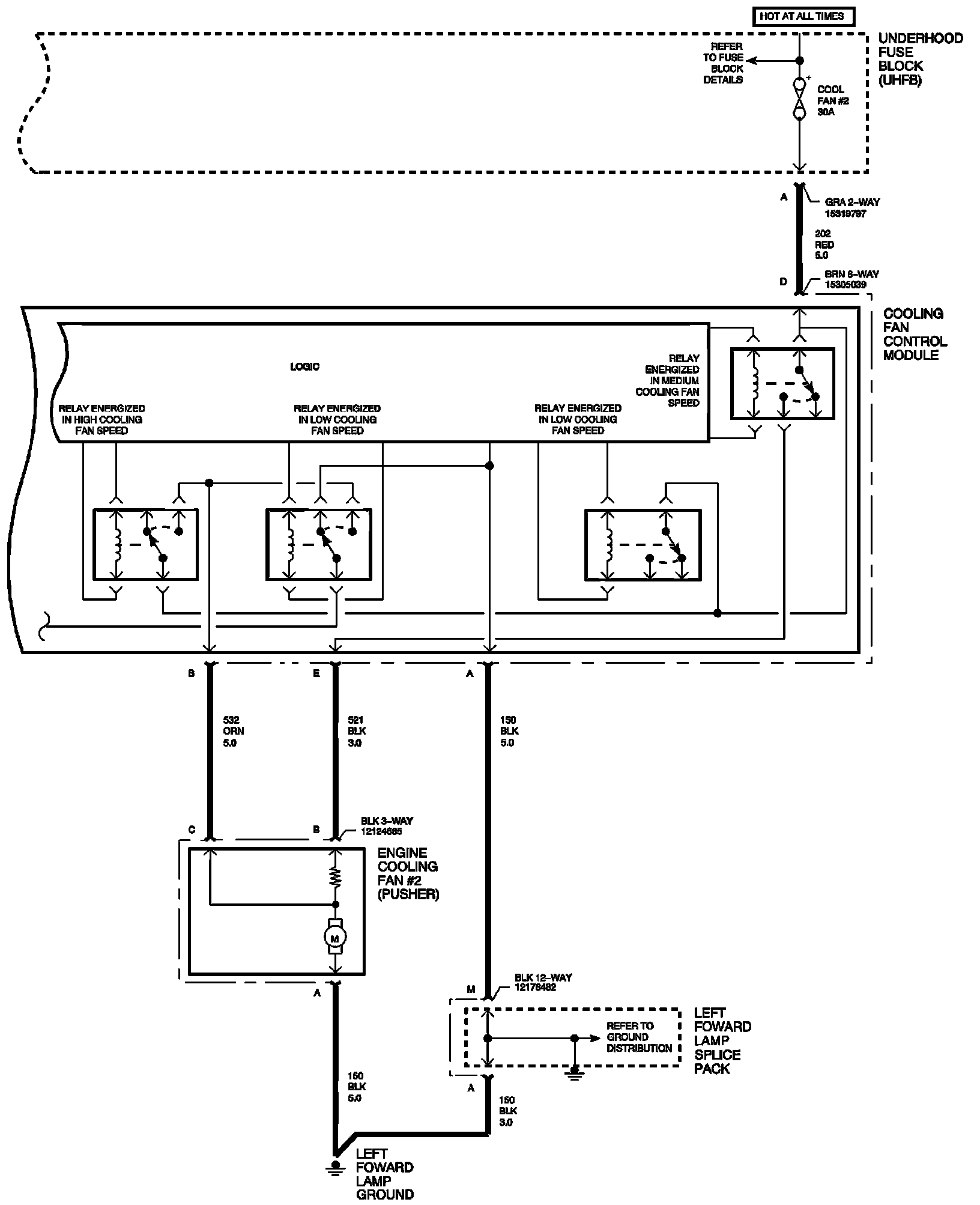

Engine Cooling Schematics
