Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper and Washer Systems >> System Diagram >> Wiper/Washer Connector Face

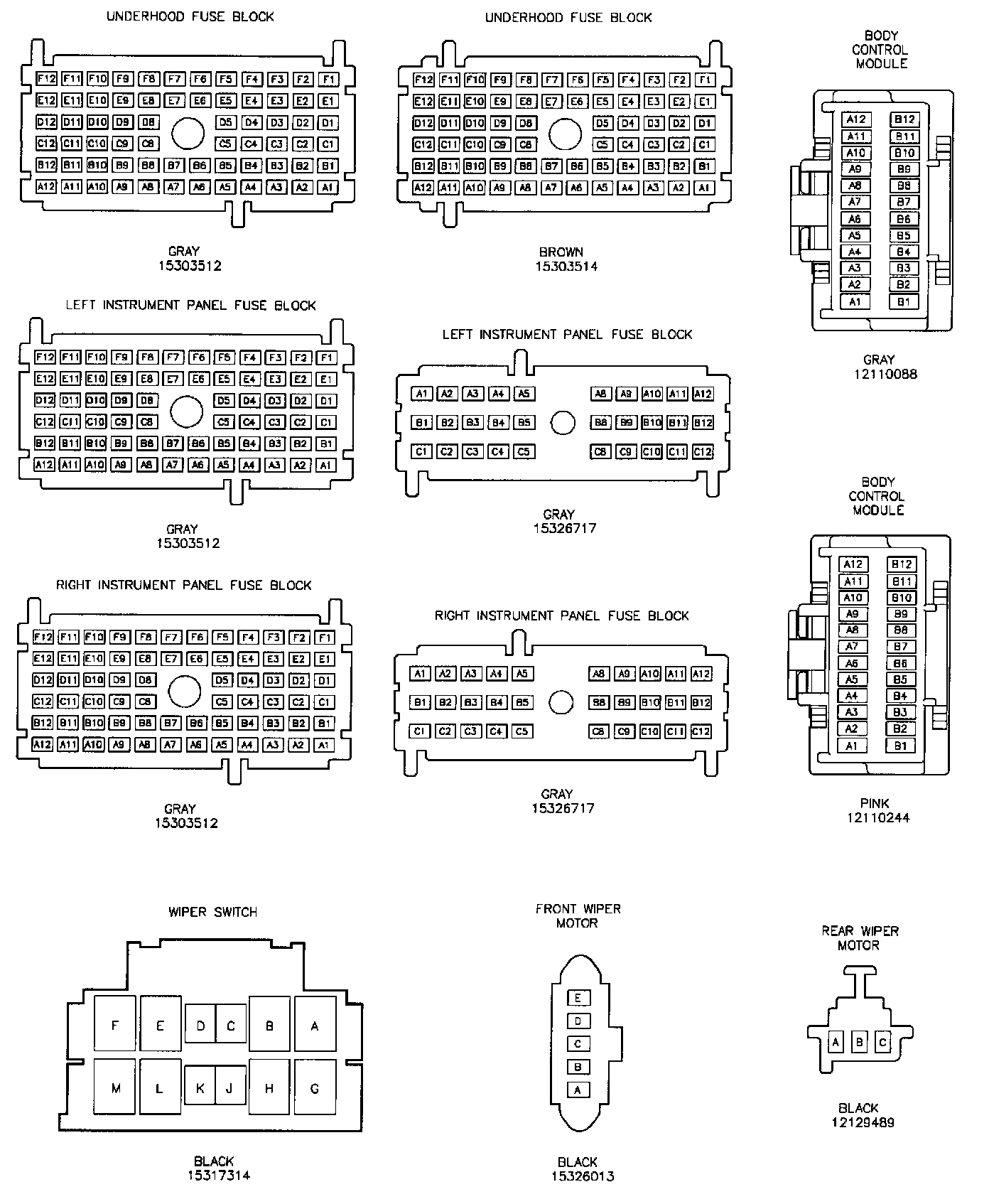

Wiper/Washer Connector Face

Wiper/Washer Connector Face:




NOTE: For complete Connector/Wire information, refer to Wiring Diagram.
