Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram >> Left Power Seat/Heated Seat

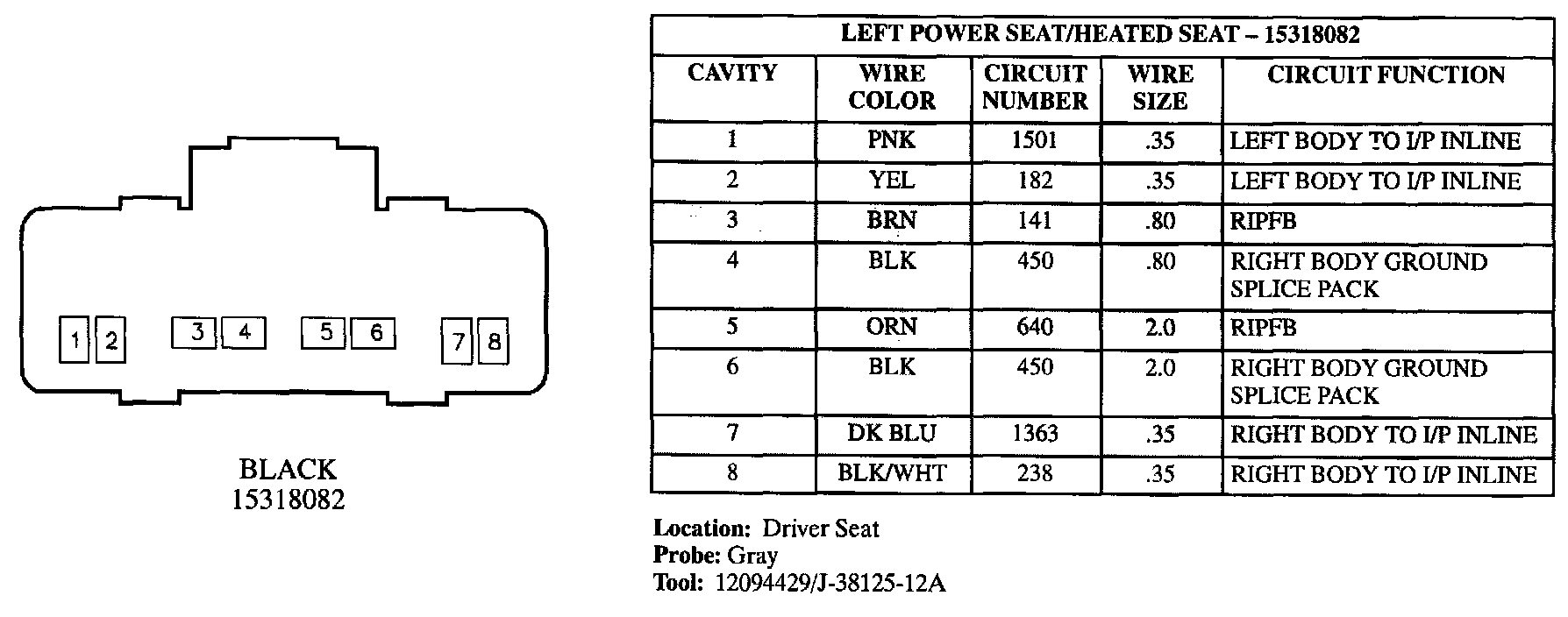

Left Power Seat/Heated Seat

Left Power Seat/Heated Seat:
