Fuel Pressure Release

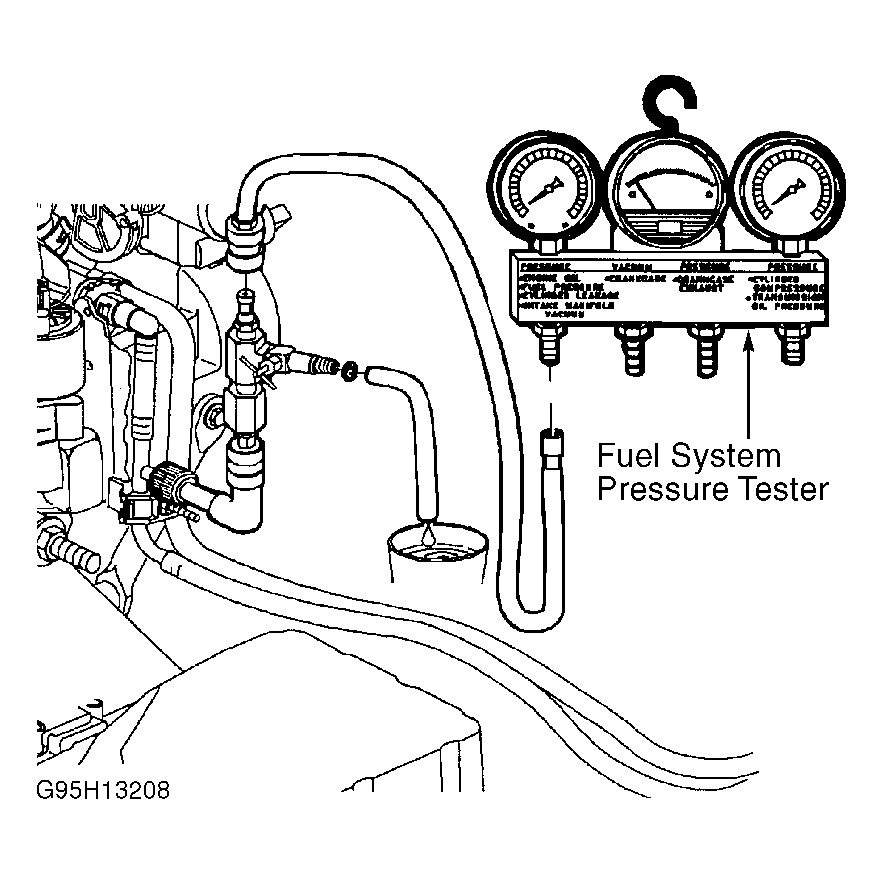

Using a 90-degree Adapter (SA9127E), connect Fuel System Pressure Tester (SA9127E) to fuel pressure test port at flywheel end of engine. See Fig 1. Place bleed hose into a container. Open bleed valve.
Using a 90-degree Adapter (SA9127E), connect Fuel System Pressure Tester (SA9127E) to fuel pressure test port at flywheel end of engine. See Fig 1. Place bleed hose into a container. Open bleed valve.
