Reassembly & Installation

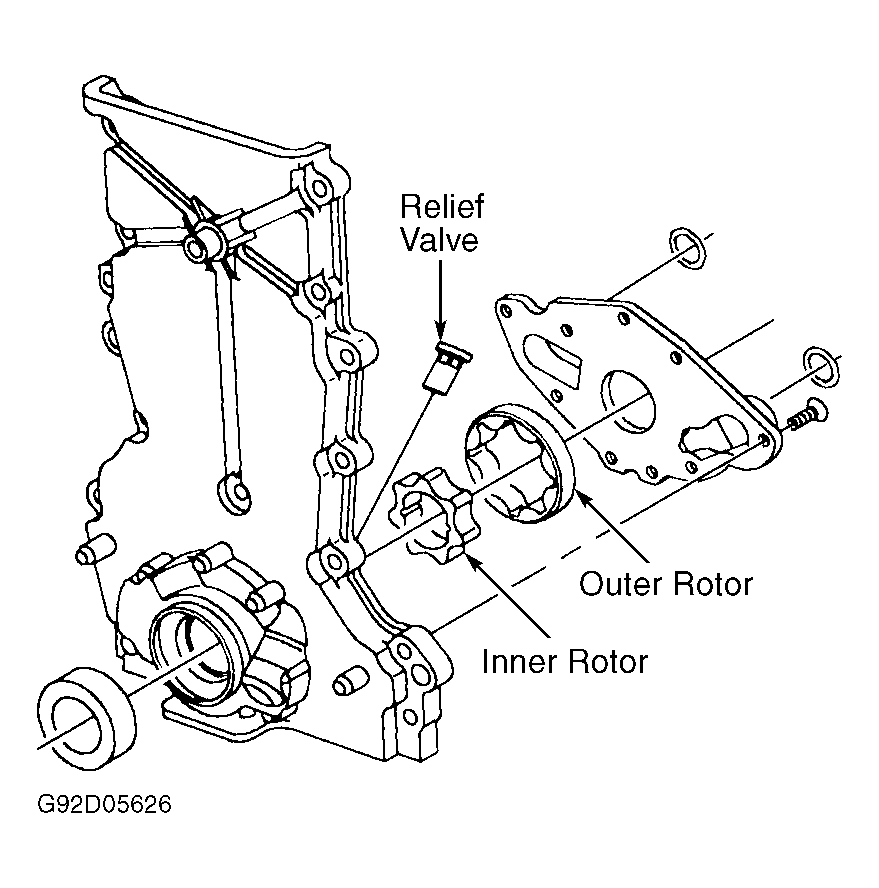

Install rotors with chamfer facing away from engine. Install new relief valve (if removed). Pack pump rotors with petroleum jelly to prime pump. Install pump cover plate using new screws. Tighten screws to specification. See TORQUE SPECIFICATIONS .
OIL PUMP SPECIFICATIONS
| Application | In. (mm) |
|---|---|
| Outer Rotor-To-Housing | .006-.011 (.150-.277) |
| Outer Rotor Tip-To-Inner Rotor Tip | .006 (.150) |
| Rotor Gear-To-Pump Cover Plate | .0016-.0050 (.041-.127) |
