Wiring Diagrams

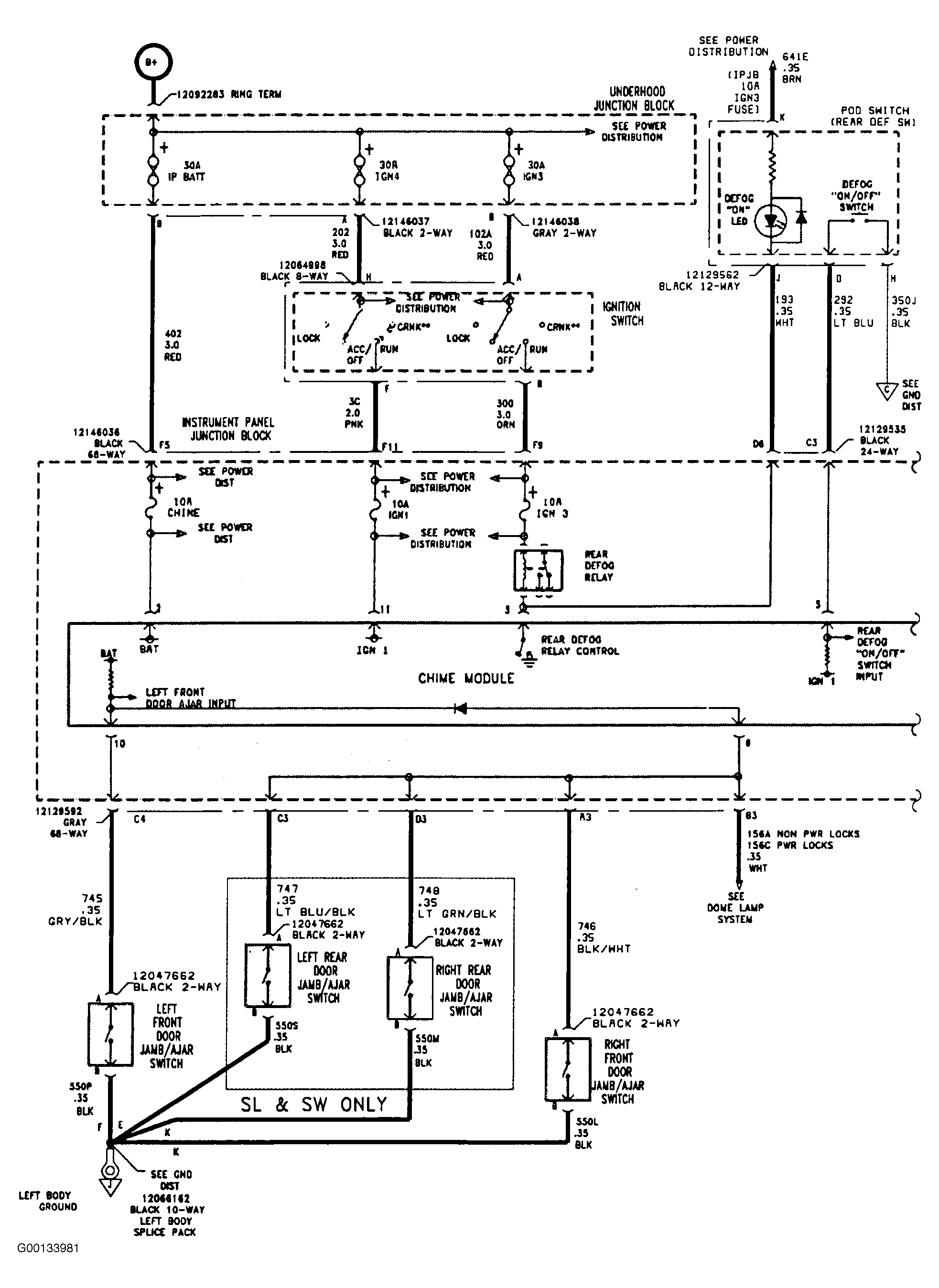

Fig 1: Chime Module Wiring Diagram (1996 & 1998 - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

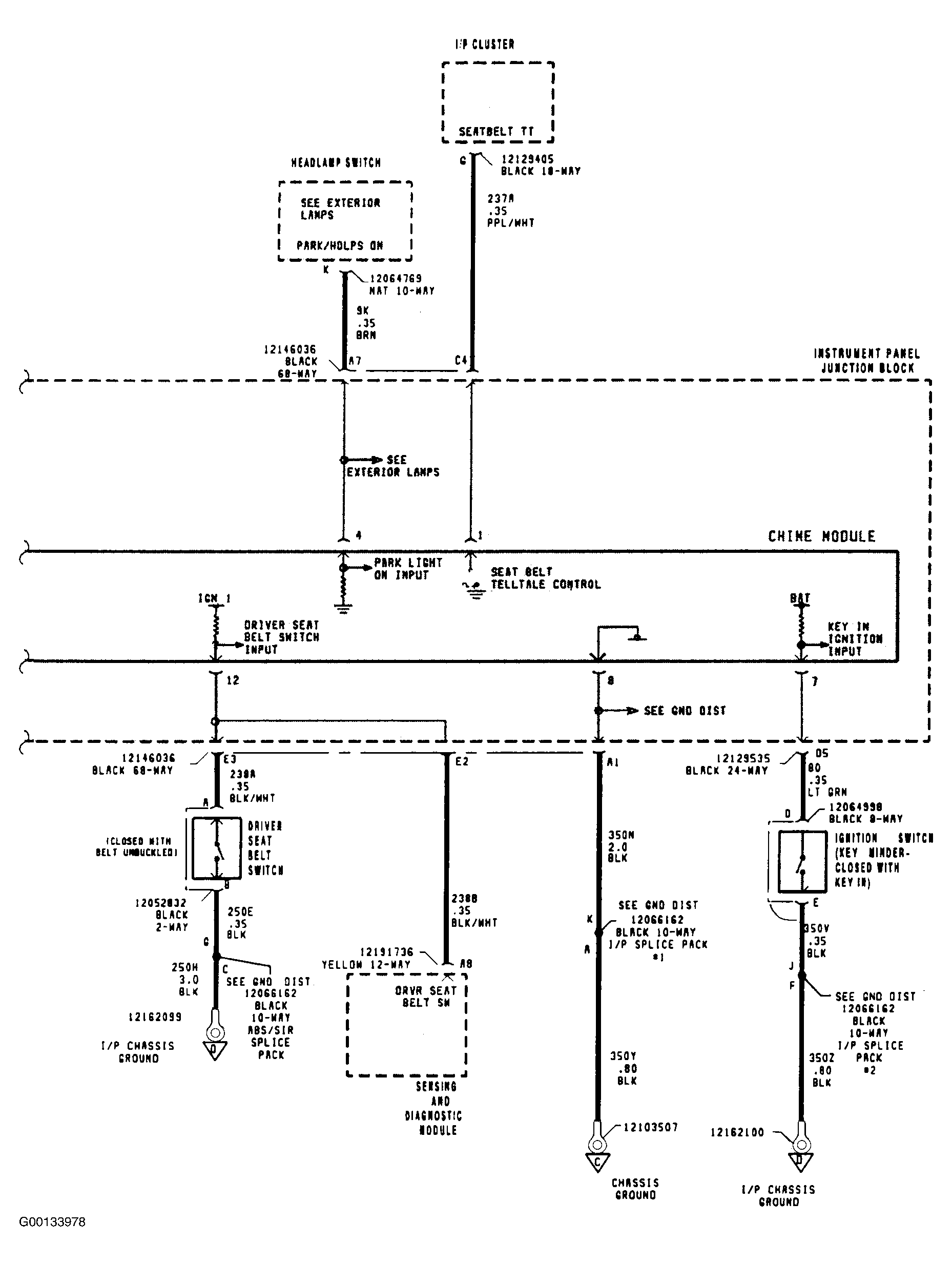

Fig 2: Chime Module Wiring Diagram (1996 & 1998 - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.

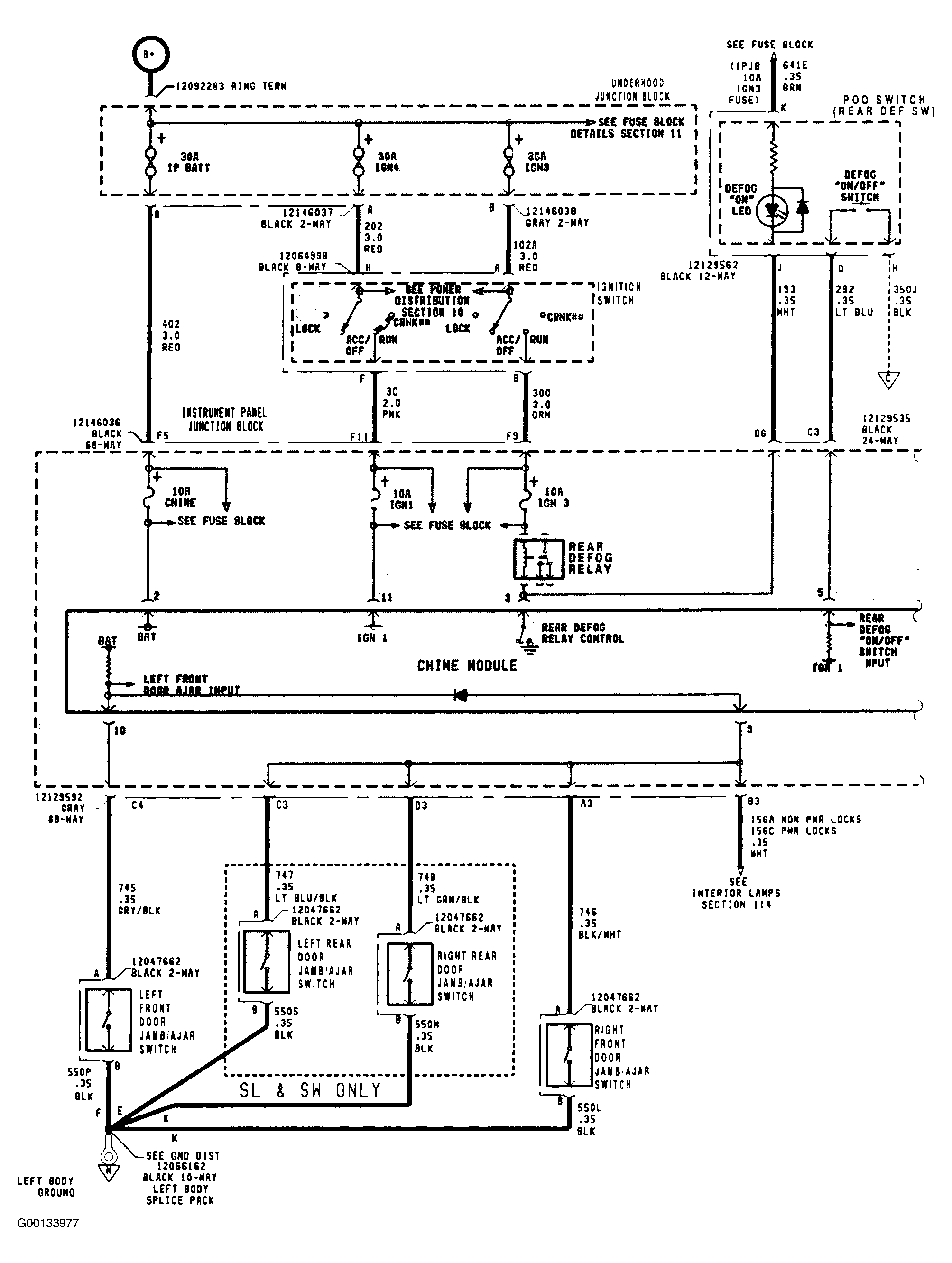

Fig 3: Chime Module Wiring Diagram (1997 - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

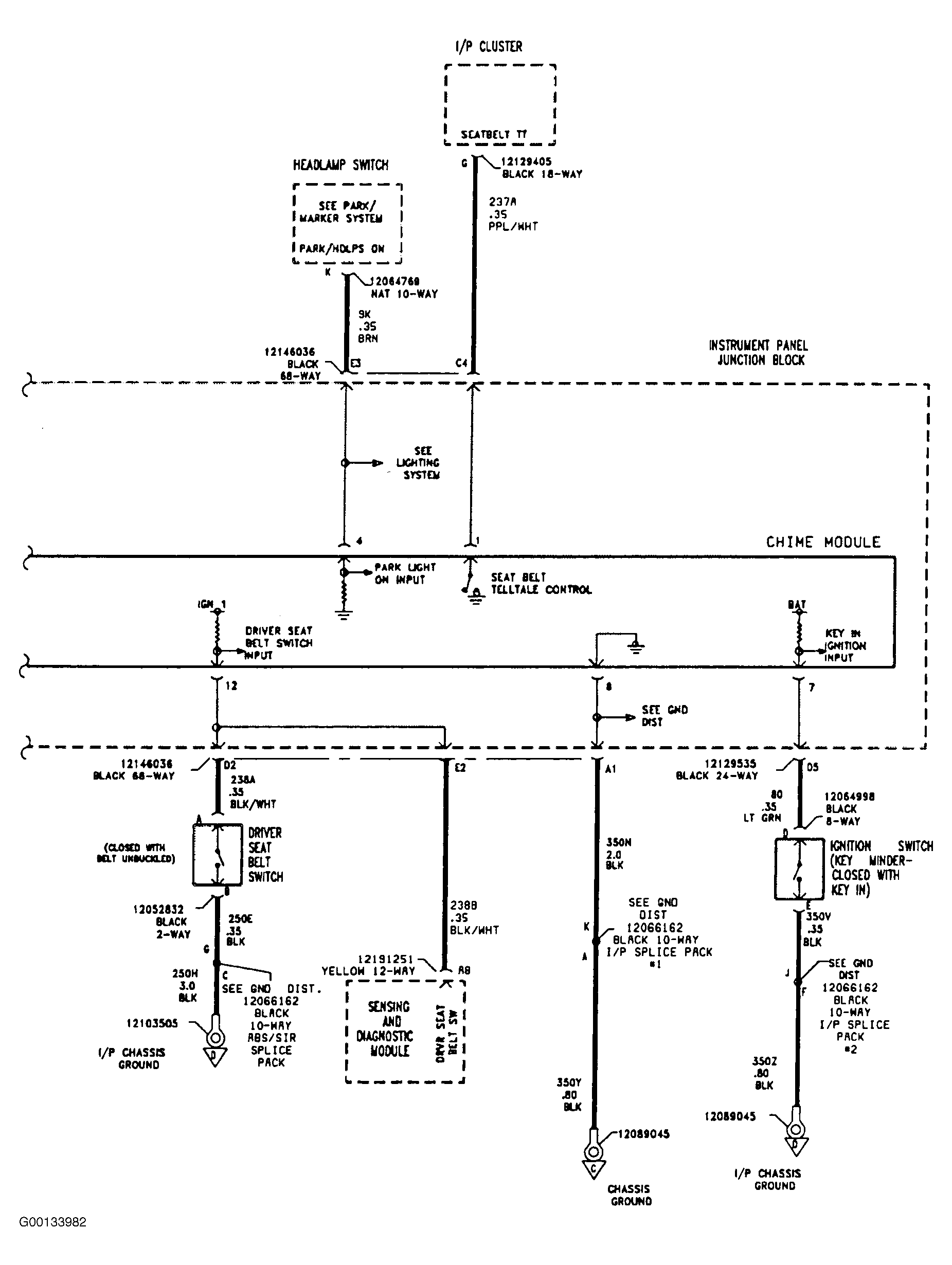

Fig 4: Chime Module Wiring Diagram (1997 - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
