Disassembly & Inspection

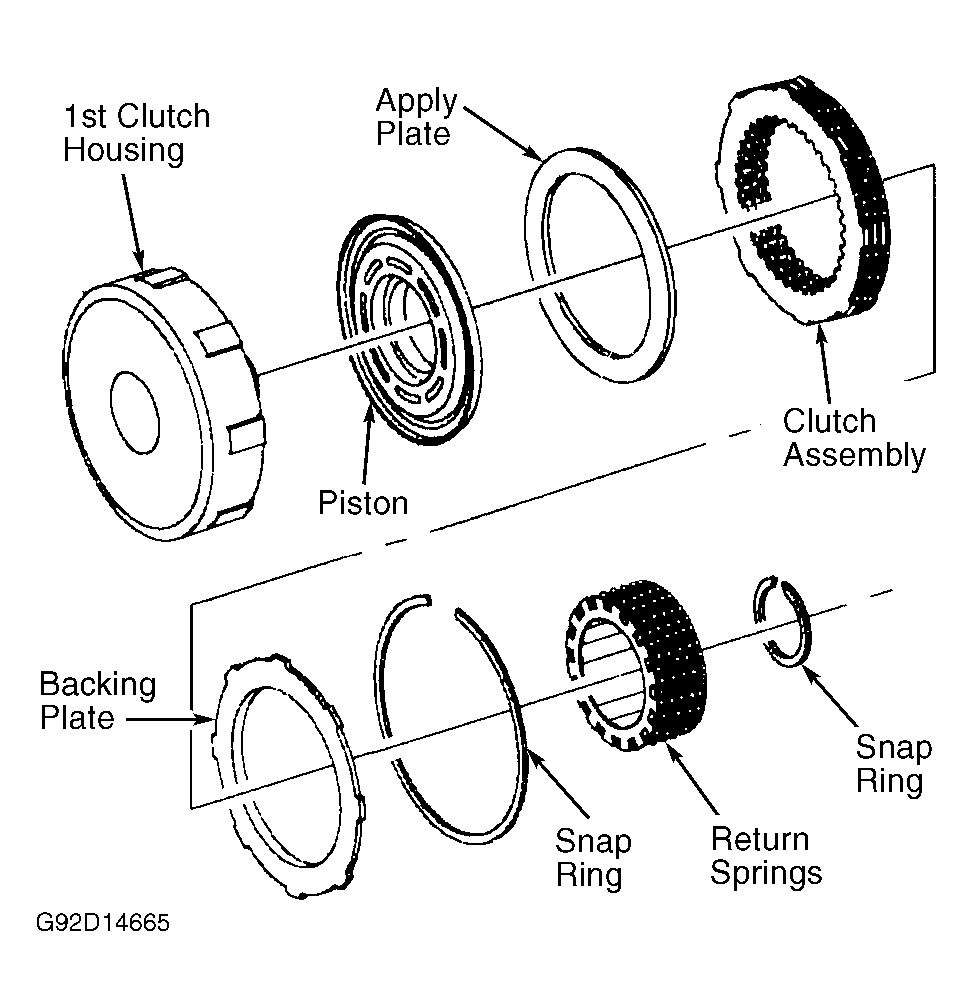

Remove large snap ring. Lift out backing plate, clutch plates and apply plate. Compress clutch spring retainer to remove small snap ring, spring retainer and clutch return springs. See Figure . Apply air pressure to each clutch fluid passage to remove piston. Remove and discard piston seal rings. Inspect for wear and damage.
