Diagnostic Aids

The order in which diagnostic trouble codes are diagnosed is very important. Failure to diagnose trouble codes in order specified may result in extended diagnostic time, incorrect diagnosis and parts replacement.

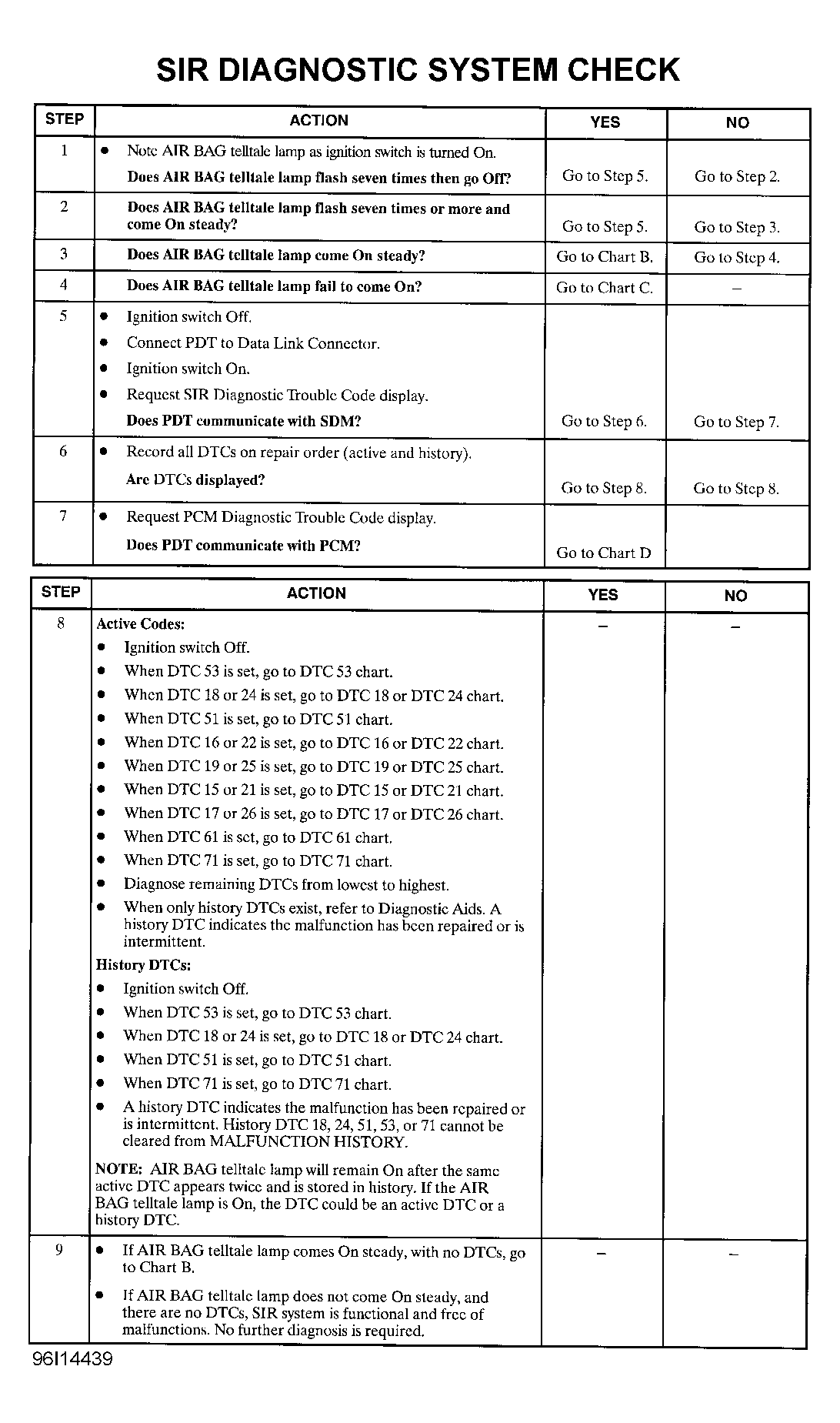

Fig 1: SIR Diagnostic System Check
G96I14439Courtesy of GENERAL MOTORS CORP.
