Diagnostic Aids

Refer to Chart B and Chart C to diagnose AIR BAG warning light circuit malfunctions. Make sure SDM harness connector, strain relief and CPA are assembled correctly. If not, AIR BAG warning light will come on steady and DTC 61 will remain current.

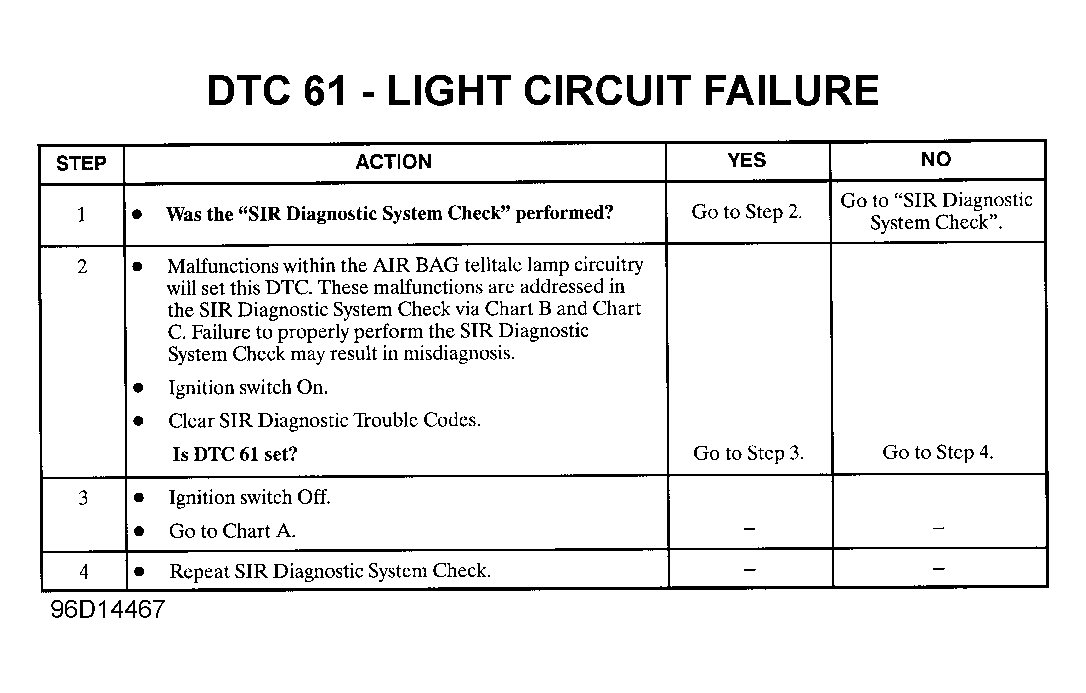

Fig 1: DTC 61 - Air Bag Warning Light Circuit Failure

Courtesy of GENERAL MOTORS CORP.
