Knee Bolsters

Knee bolsters are used to absorb energy and control forward movement of front passengers. This is accomplished by limiting leg movement during a frontal crash.

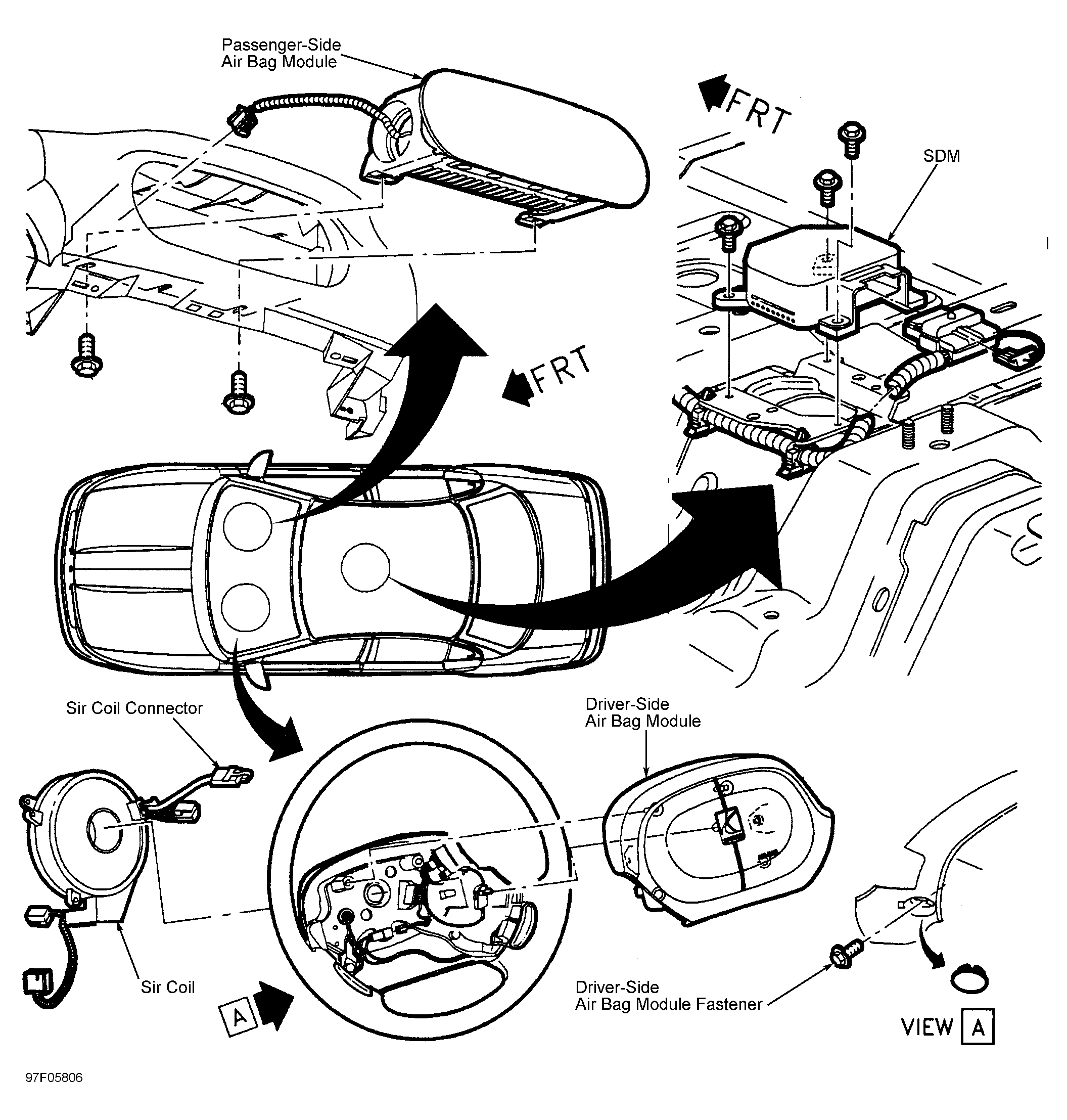

Fig 1: Locating SIR Components
G97F05806Courtesy of GENERAL MOTORS CORP.
