Insufficient Cooling Diagnosis Charts - (CCOT)

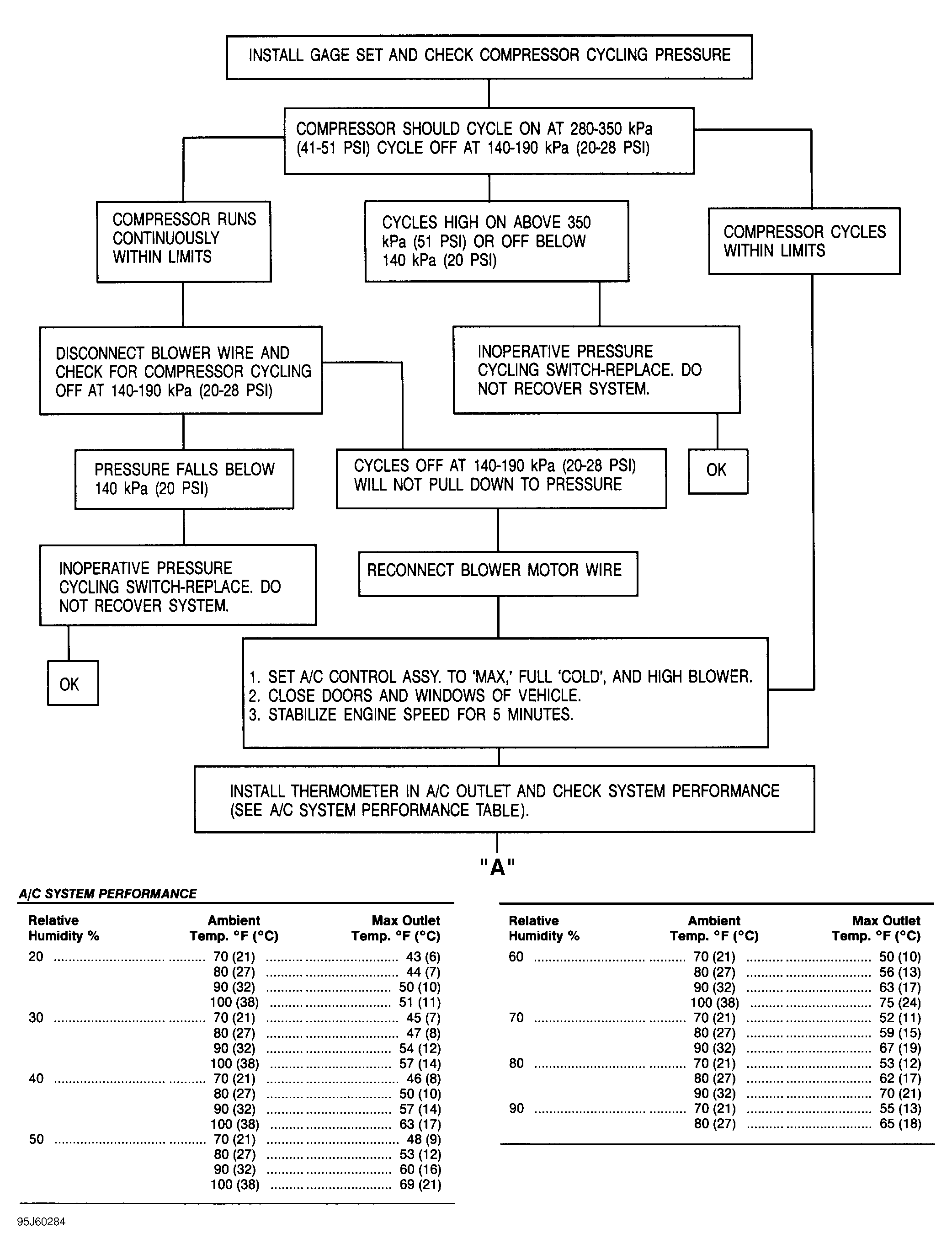

Fig 1: Insufficient Cooling Chart "A" (CCOT)

Courtesy of GENERAL MOTORS CORP.

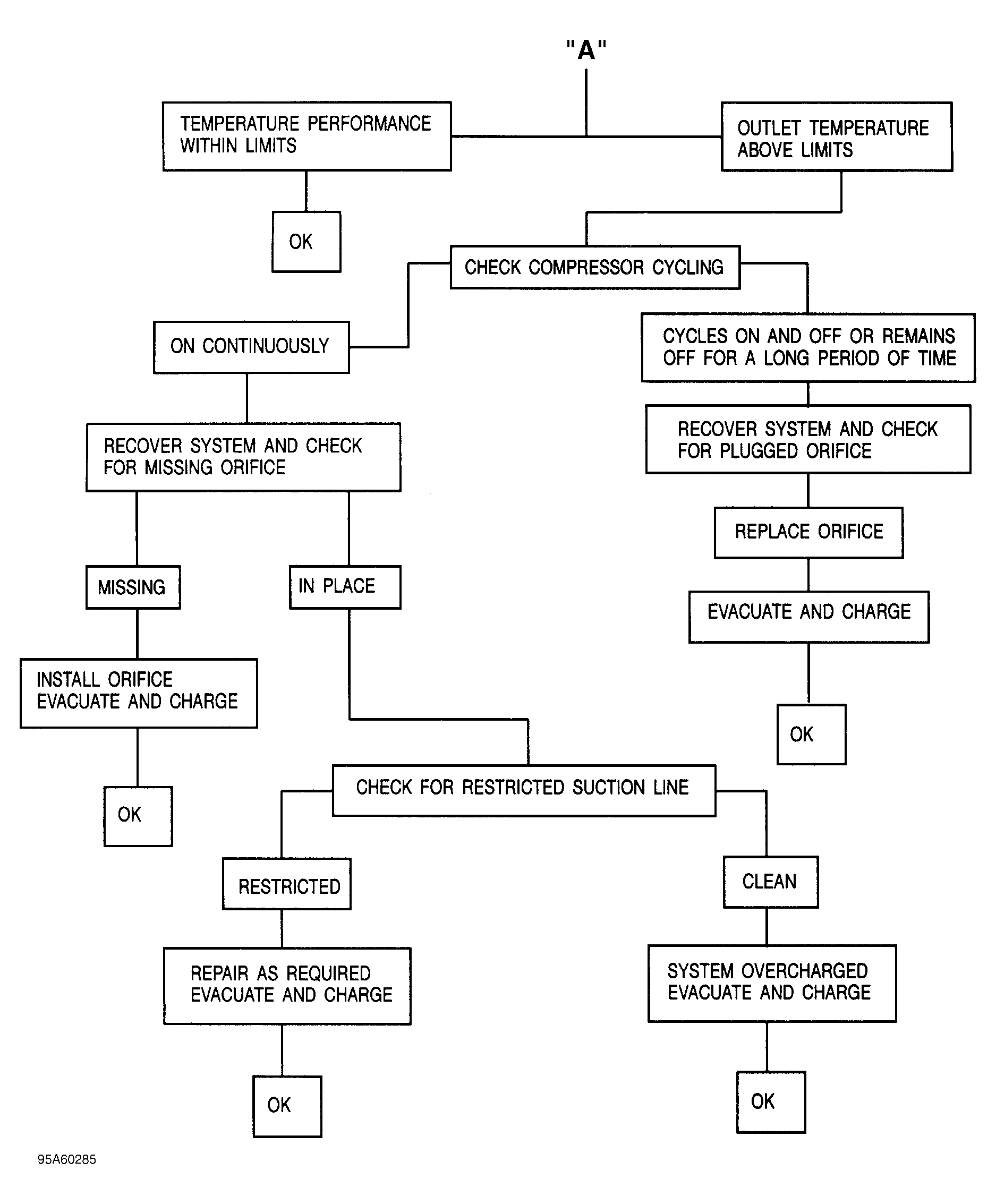

Fig 2: Insufficient Cooling Chart "B" (CCOT)

Courtesy of GENERAL MOTORS CORP.

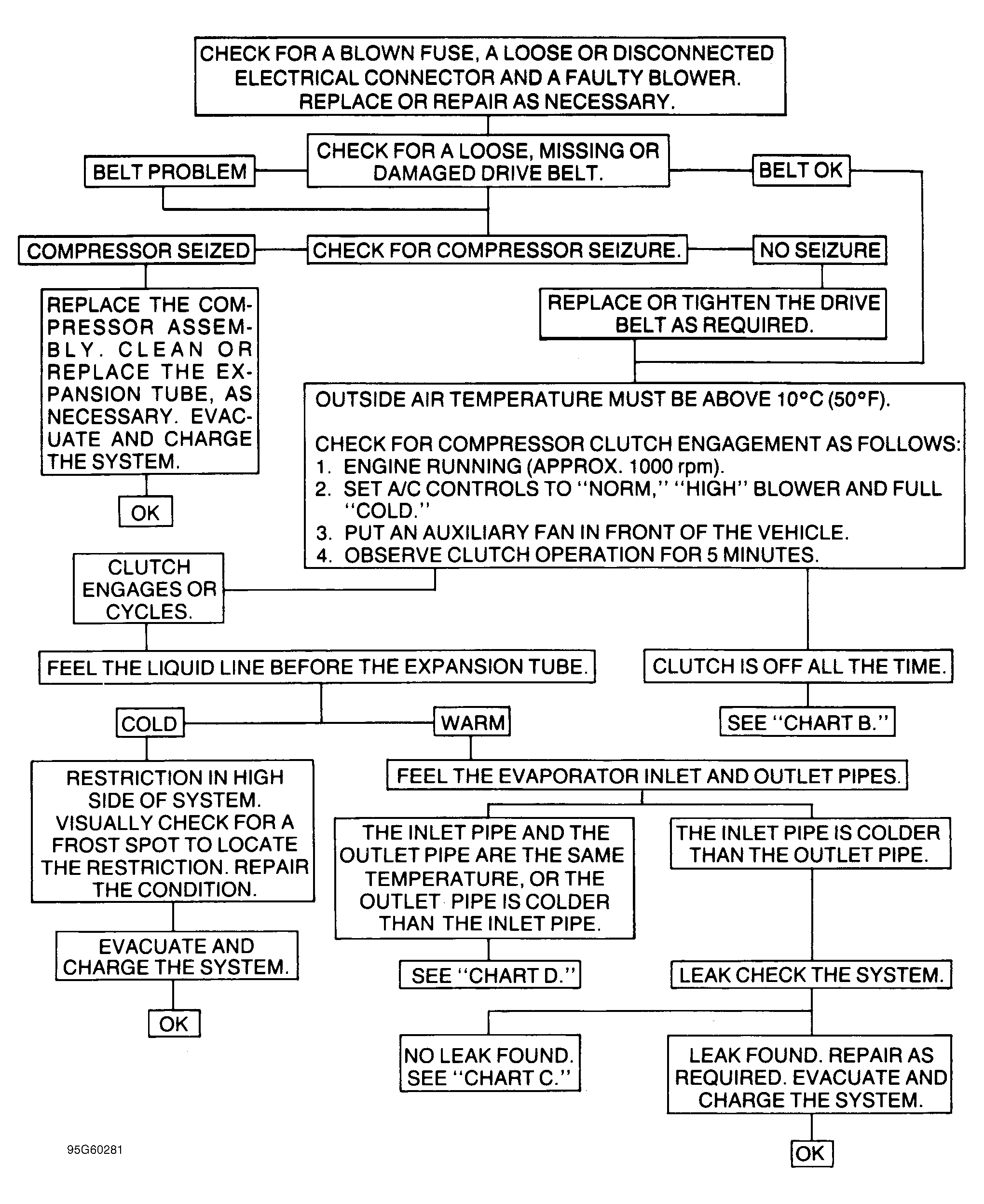

Fig 3: Insufficient Cooling Chart "C" (CCOT)

Courtesy of GENERAL MOTORS CORP.

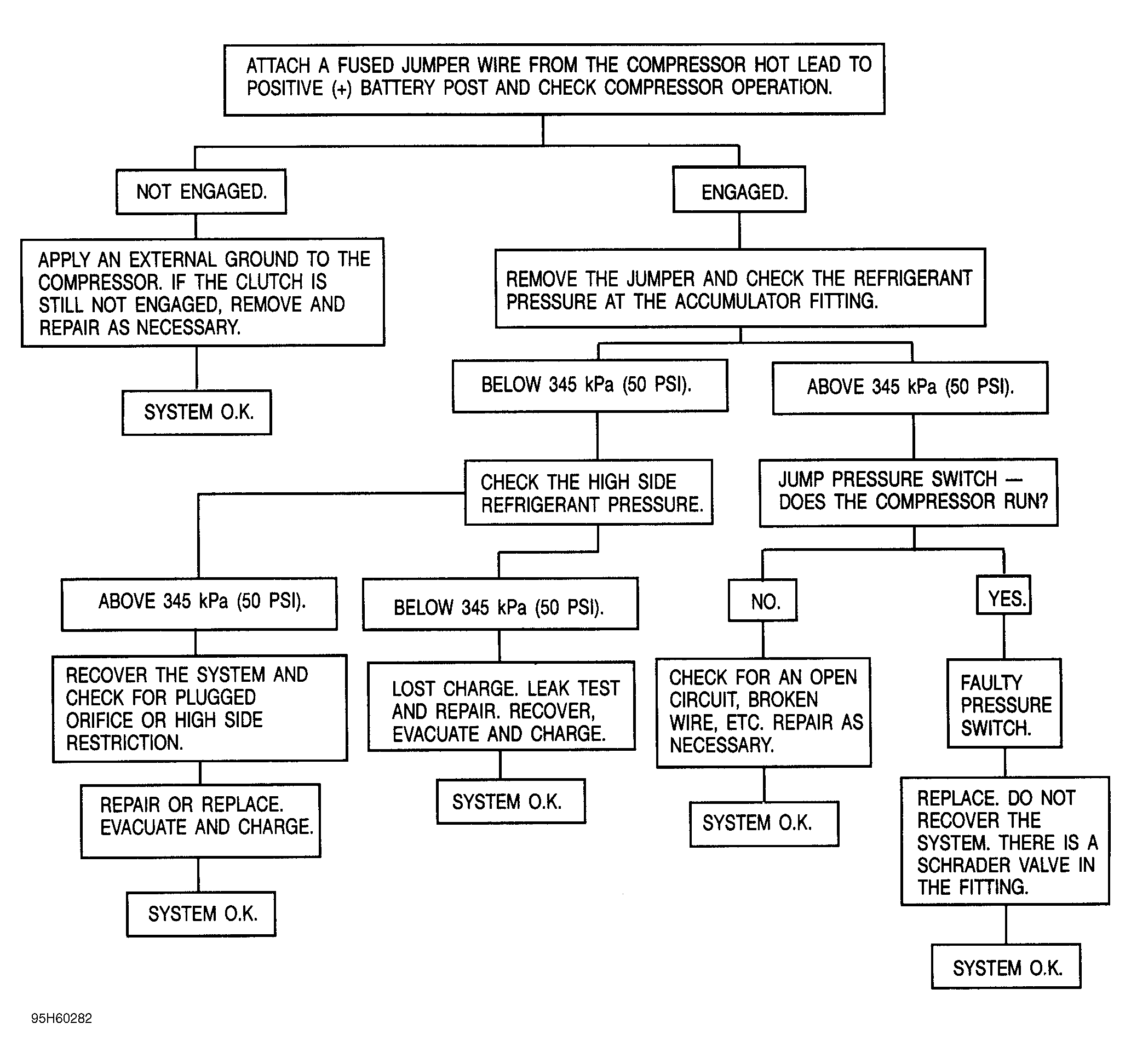

Fig 4: Insufficient Cooling Chart "D" (CCOT)

Courtesy of GENERAL MOTORS CORP.

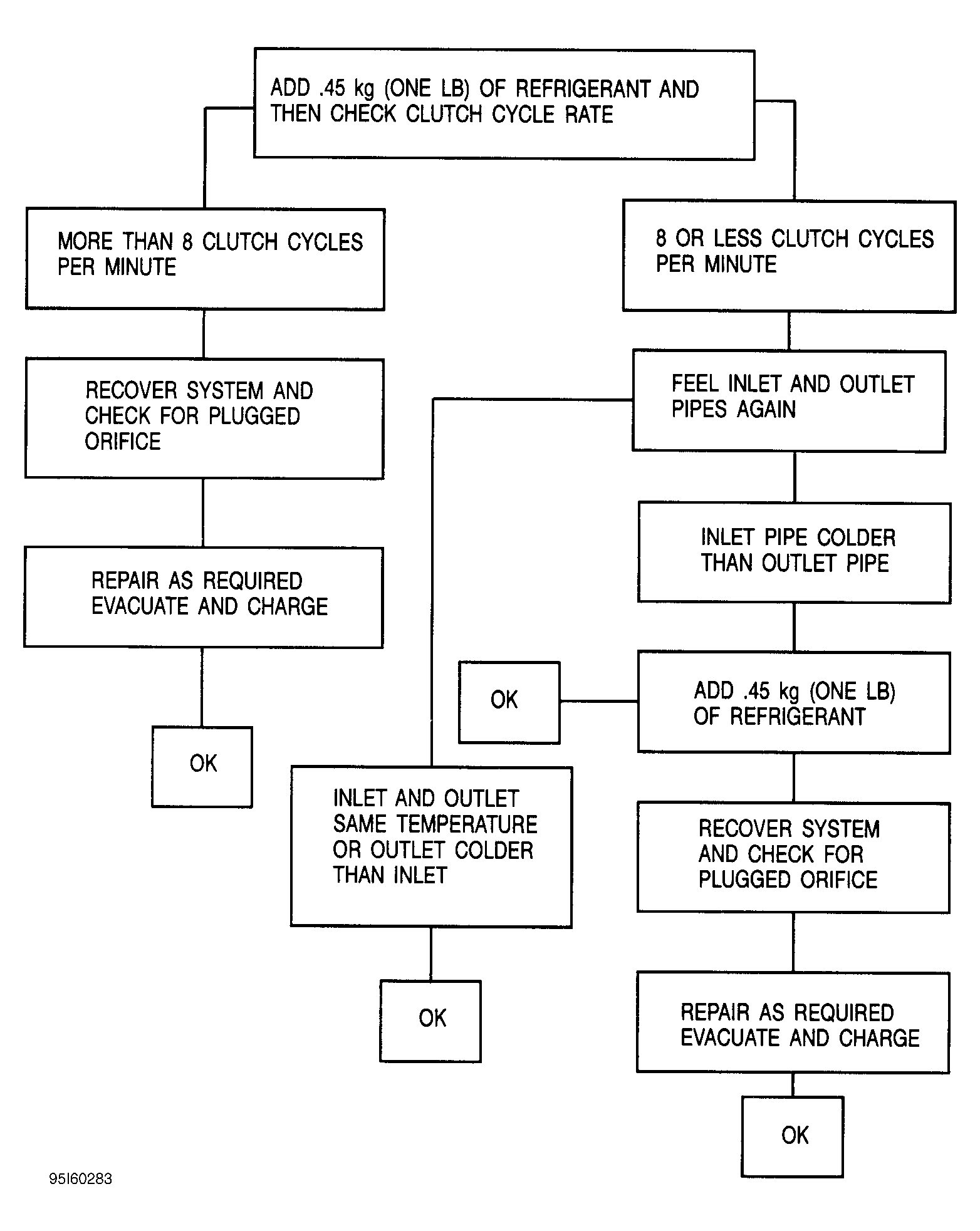

Fig 5: Insufficient Cooling Chart "E" (CCOT)

Courtesy of GENERAL MOTORS CORP.
