Cylinder Head: Installation

Install timing chain and front cover. See FRONT COVER & TIMING CHAIN . To install remaining components, reverse removal procedure. Fill cooling system. Fill crankcase. Check for leaks.

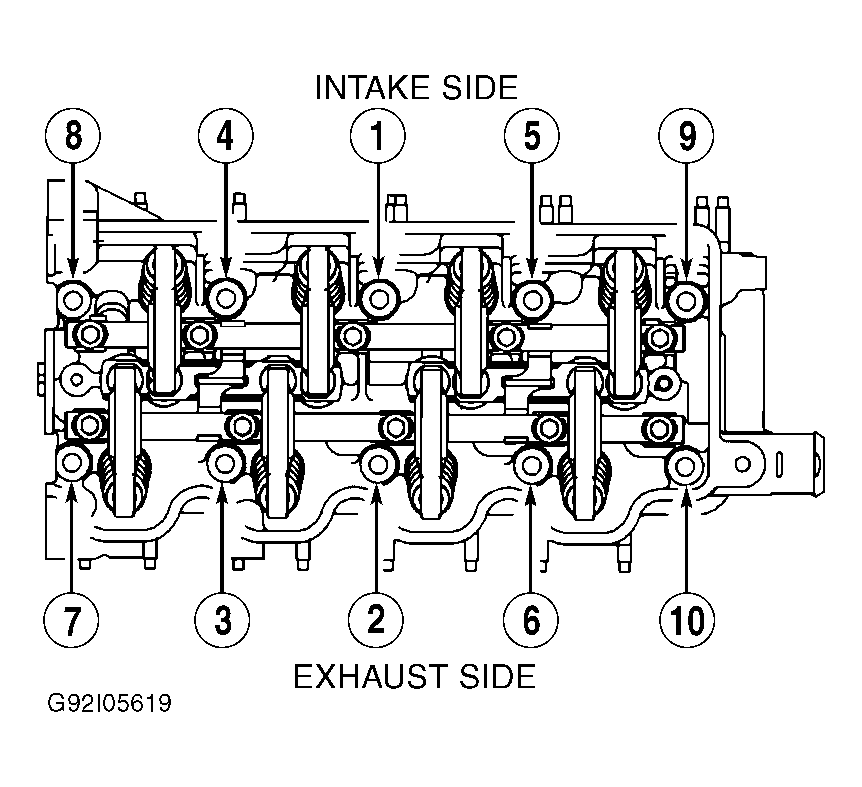

Fig 1: Cylinder Head Bolt Tightening Sequence (DOHC)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Cylinder Head Bolt Tightening Sequence (SOHC)

Courtesy of GENERAL MOTORS CORP.
