5.7L - F & Y Bodies

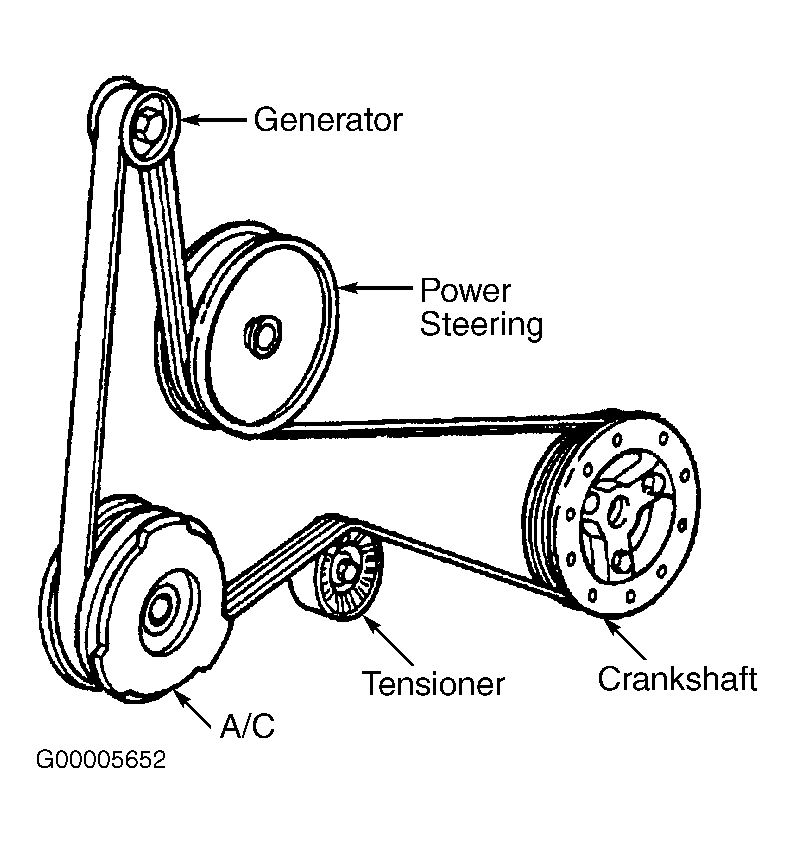

Fig 1: Serpentine Drive Belt Routing (5.7L "F" Body - 1996-97)
G00005652Courtesy of GENERAL MOTORS CORP.

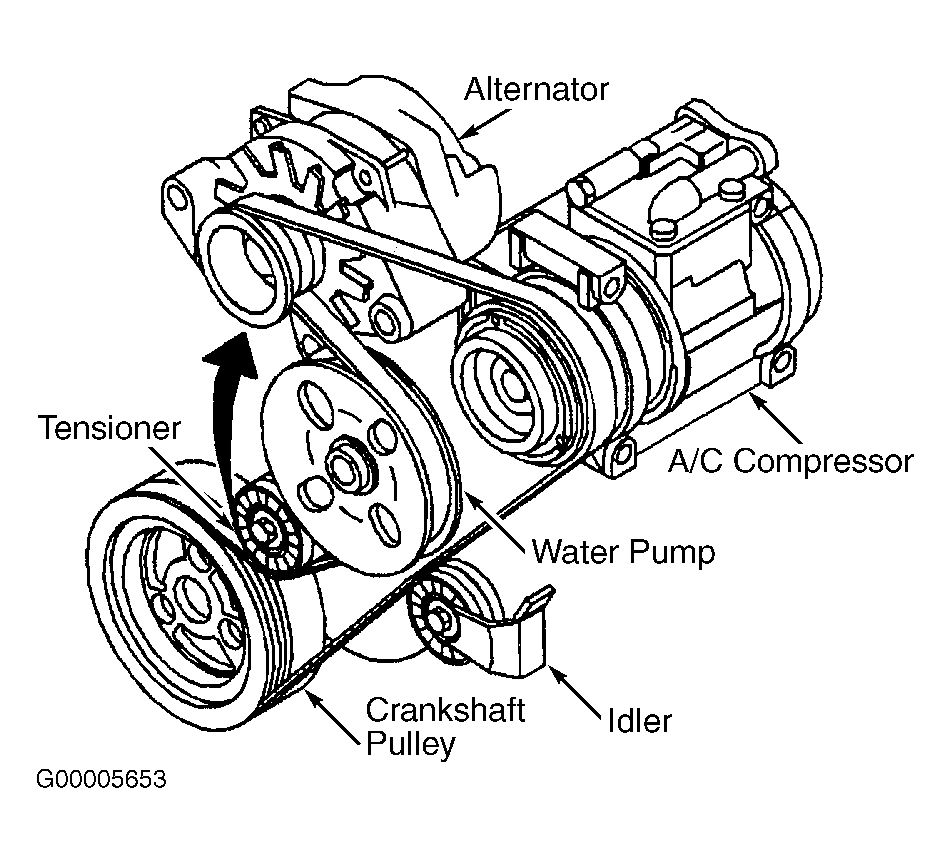

Fig 2: Serpentine Drive Belt Routing (5.7L "Y" Body - 1996)
G00005653Courtesy of GENERAL MOTORS CORP.
Fig 3: Serpentine Drive Belt Routing (5.7L "Y" Body - 1997)
G00005654Courtesy of GENERAL MOTORS CORP.
