Serpentine Belt Routing: 2.4L

Fig 1: Serpentine Belt Routing (2.4L "J" & "N" Bodies - 1996-97)
G50G17018Courtesy of GENERAL MOTORS CORP.

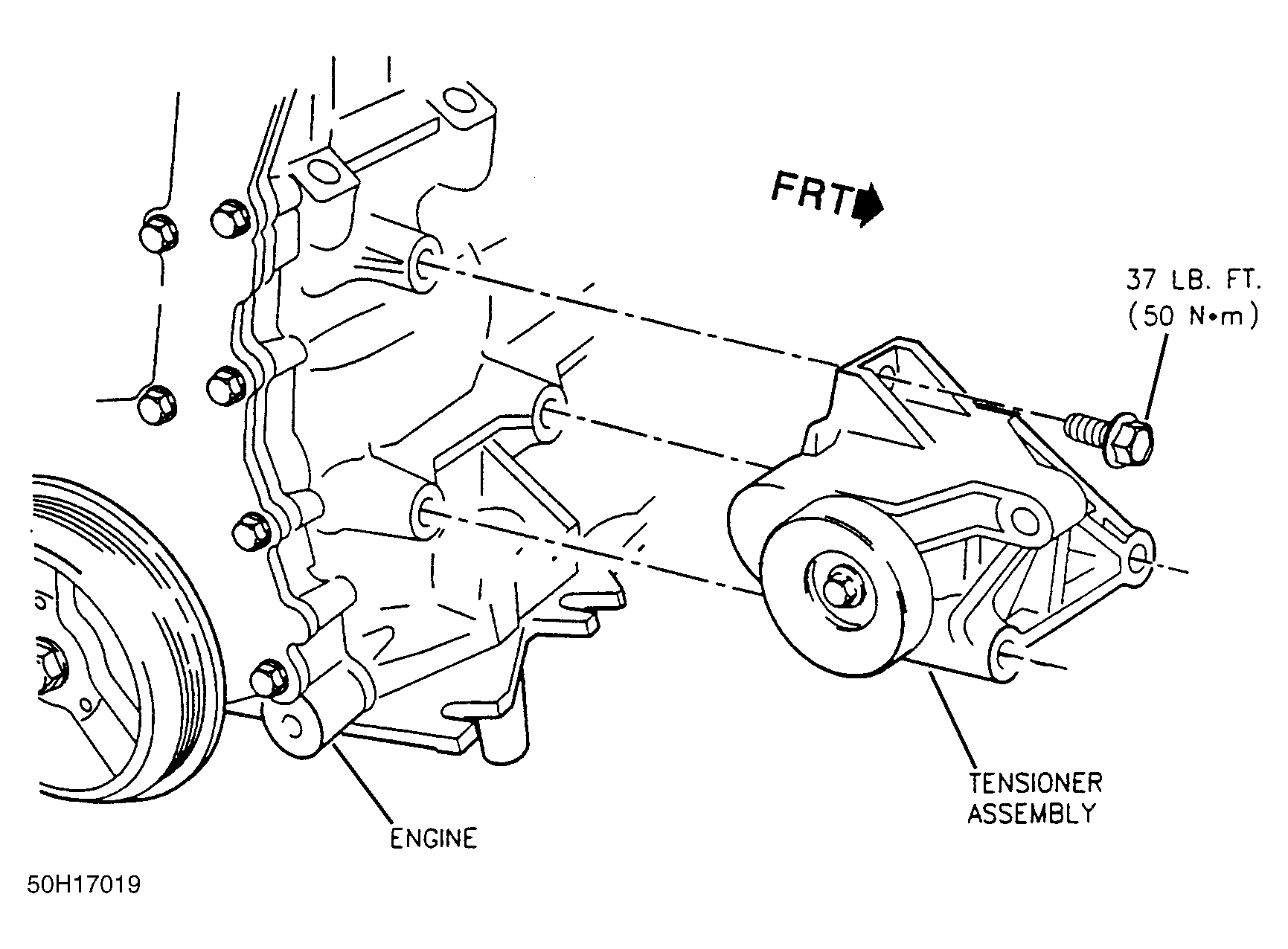

Fig 2: Generator, Tensioner & A/C Compressor Mounting Bracket (2.4L "J" & "N" Bodies - 1996-97)
G50H17019Courtesy of GENERAL MOTORS CORP.
