Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Wiper and Washer Systems >> Sensors and Switches - Wiper and Washer Systems >> Wiper Switch >> Testing and Inspection >> Multifunction Switch Logic >> Turn/Hazard Switch Connector

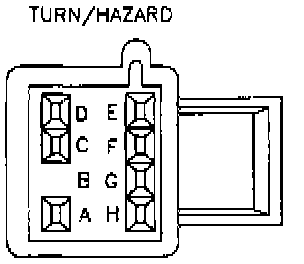

Turn/Hazard Switch Connector

Turn/Hazard:

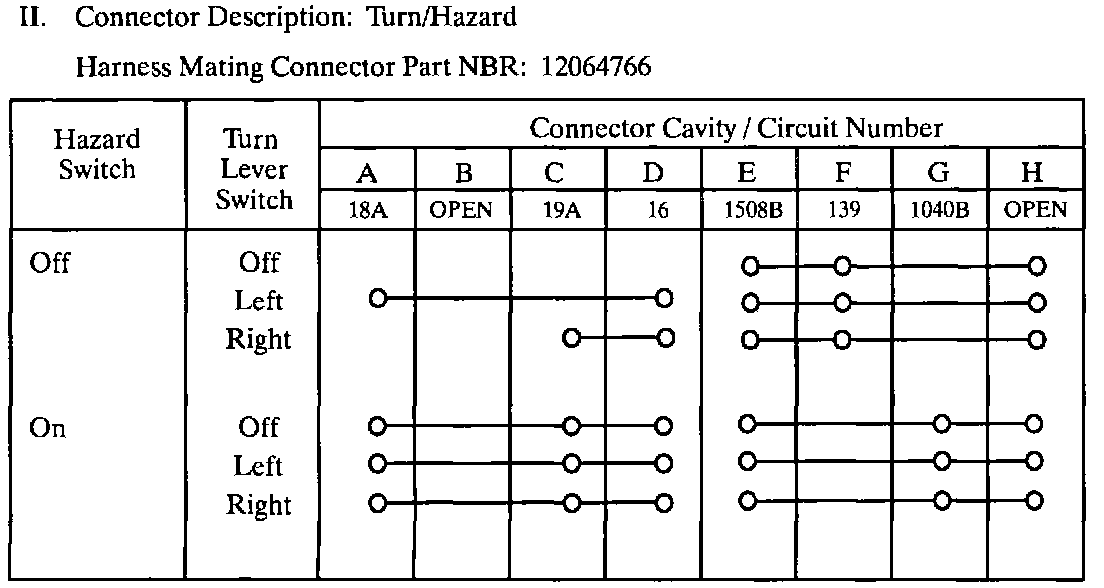

Multifunction Switch Logic: Turn/Hazard Connector Description:
