Removal

1. Remove the transaxle strut, following the "Transaxle Strut" removal procedures located in this section.
2. On vehicles equipped with a manual transaxle:
a. Disconnect negative battery cable from battery.
b. Disconnect positive battery cable from battery.

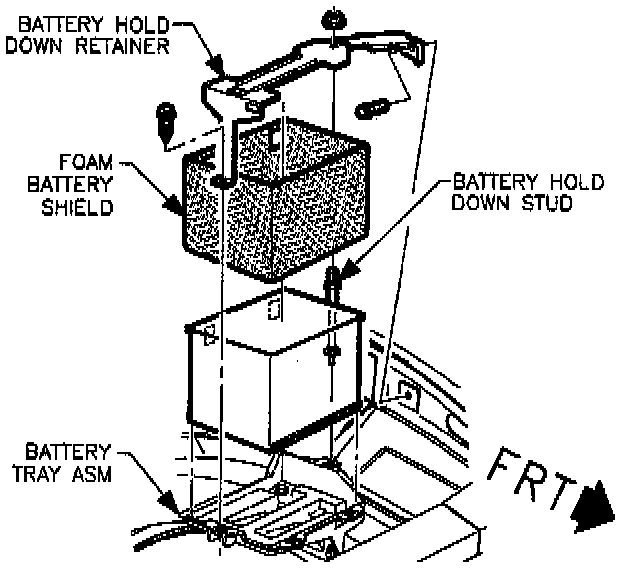

c. Remove hold-down retaining nut and screw, and lift off battery hold-down retainer.
d. Lift the battery of vehicle, and place in a safe location.





3. Remove the two bracket-to-transaxle fasteners and remove the bracket.
