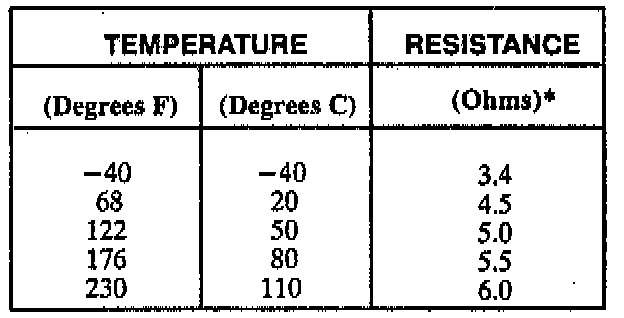

Actuator Resistance Chart

* These values may vary slightly. When an actuator is suspected to be causing a problem, an accurate way of checking resistance is to compare the suspect actuator value to the resistance value of the other actuators. Values should be within one ohm of each other.
