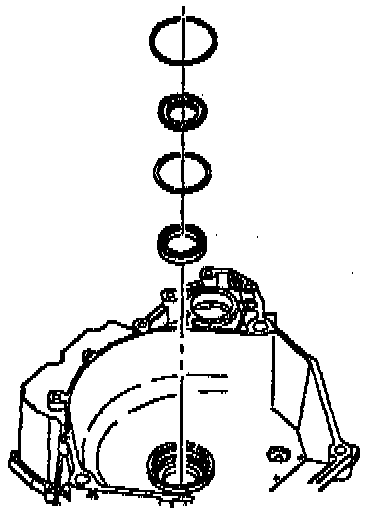

Replacing Converter Housing Seal






1. Remove transaxle.
2. Remove converter.
3. Remove retaining ring.
4. Remove seal by prying out with a screwdriver.
5. Install converter housing seal using SA9107T and install snap ring.
