Hydraulic Operation

The following are hydraulic schematics that show the hydraulic operation of automatic transaxles in each of the following ranges:

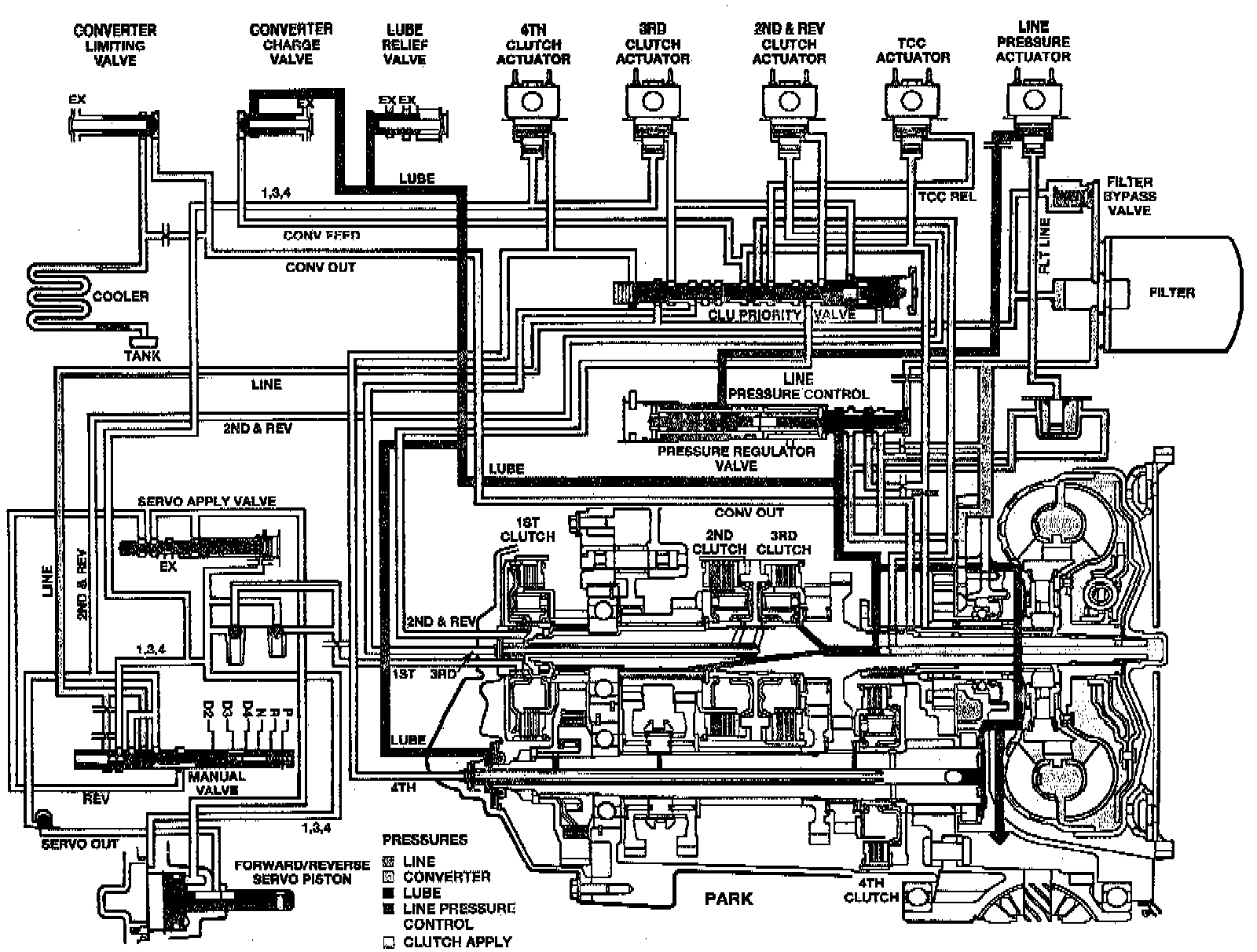

- Park





- Reverse

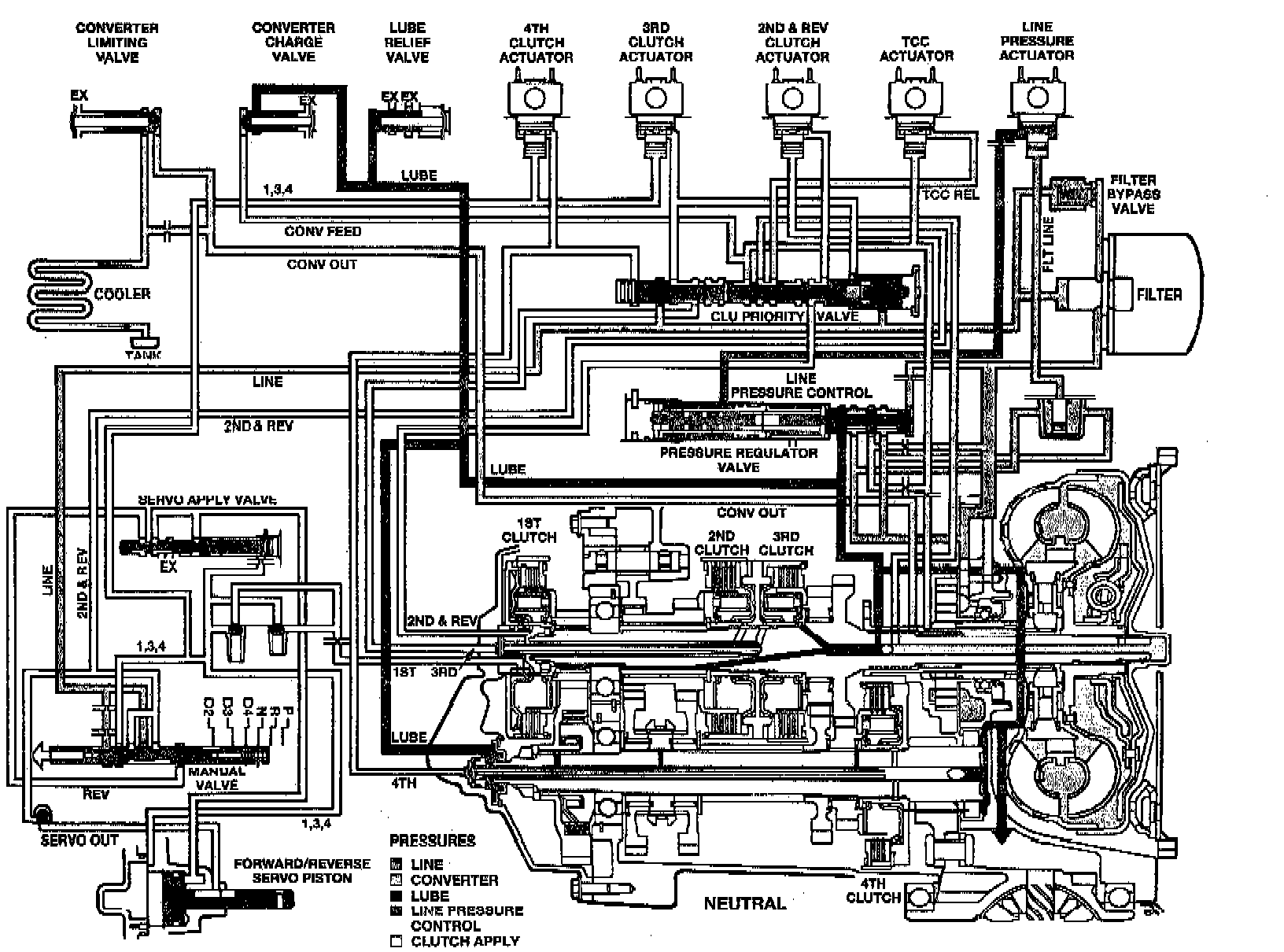

- Neutral

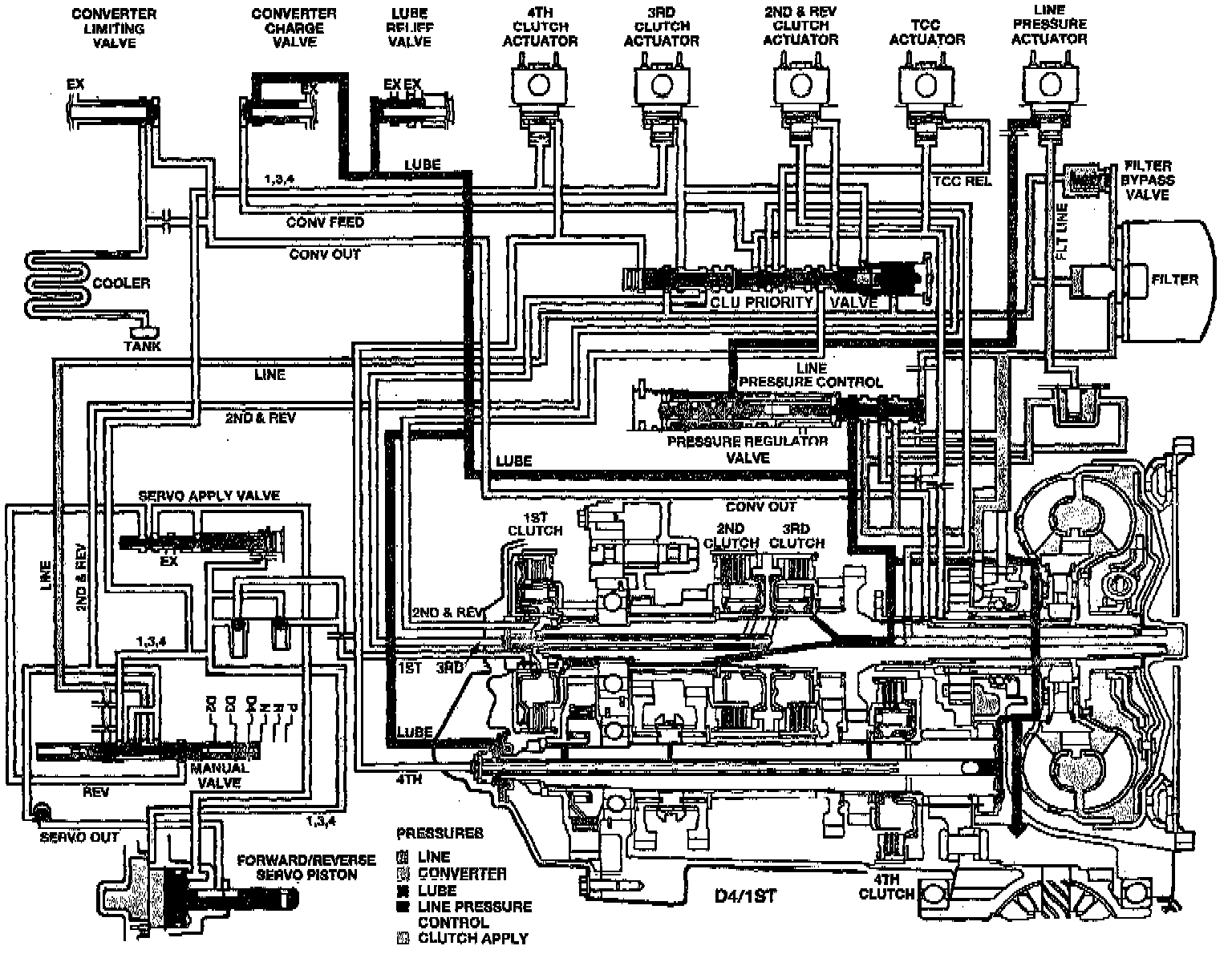

- D4/1st

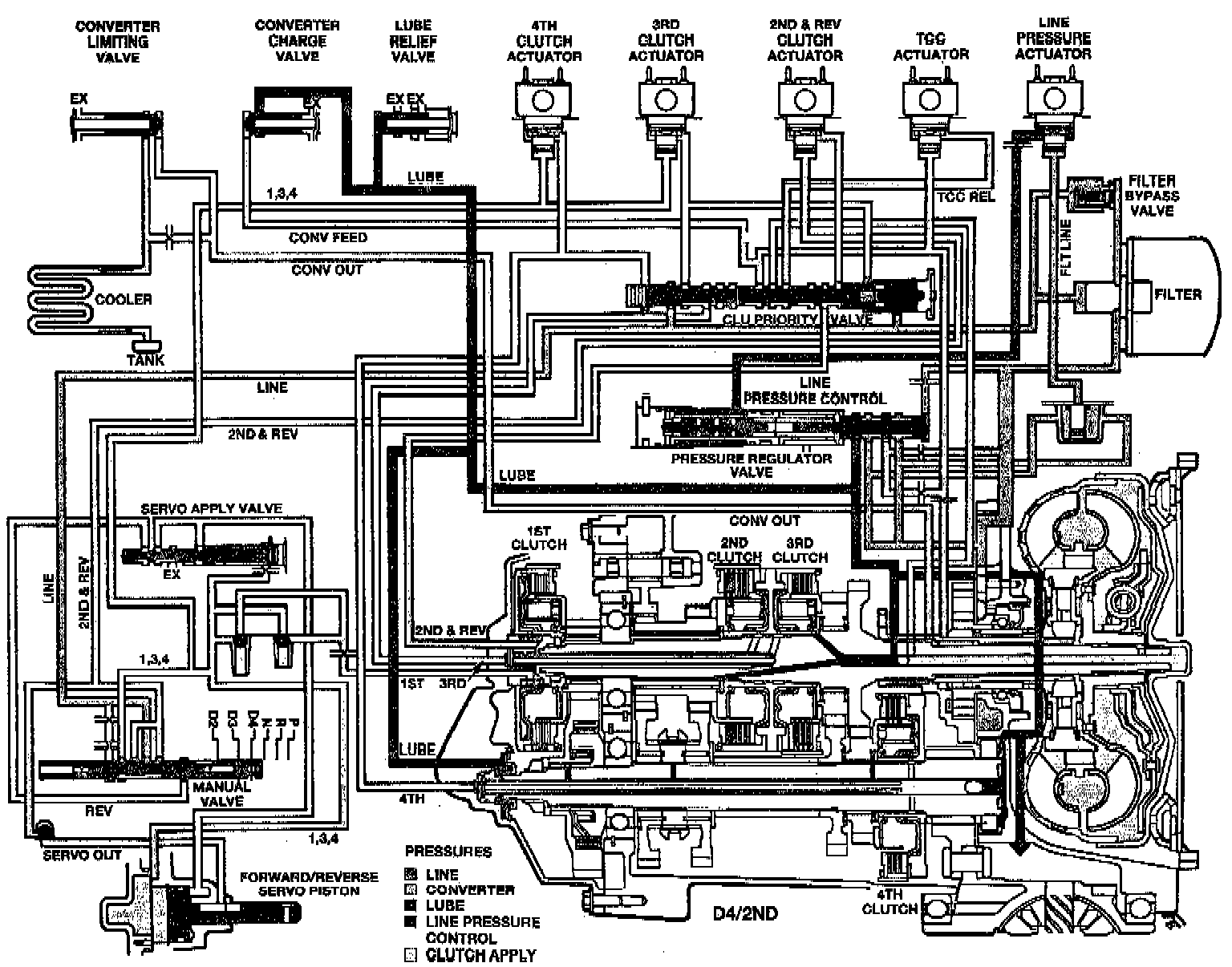

- D4/2nd

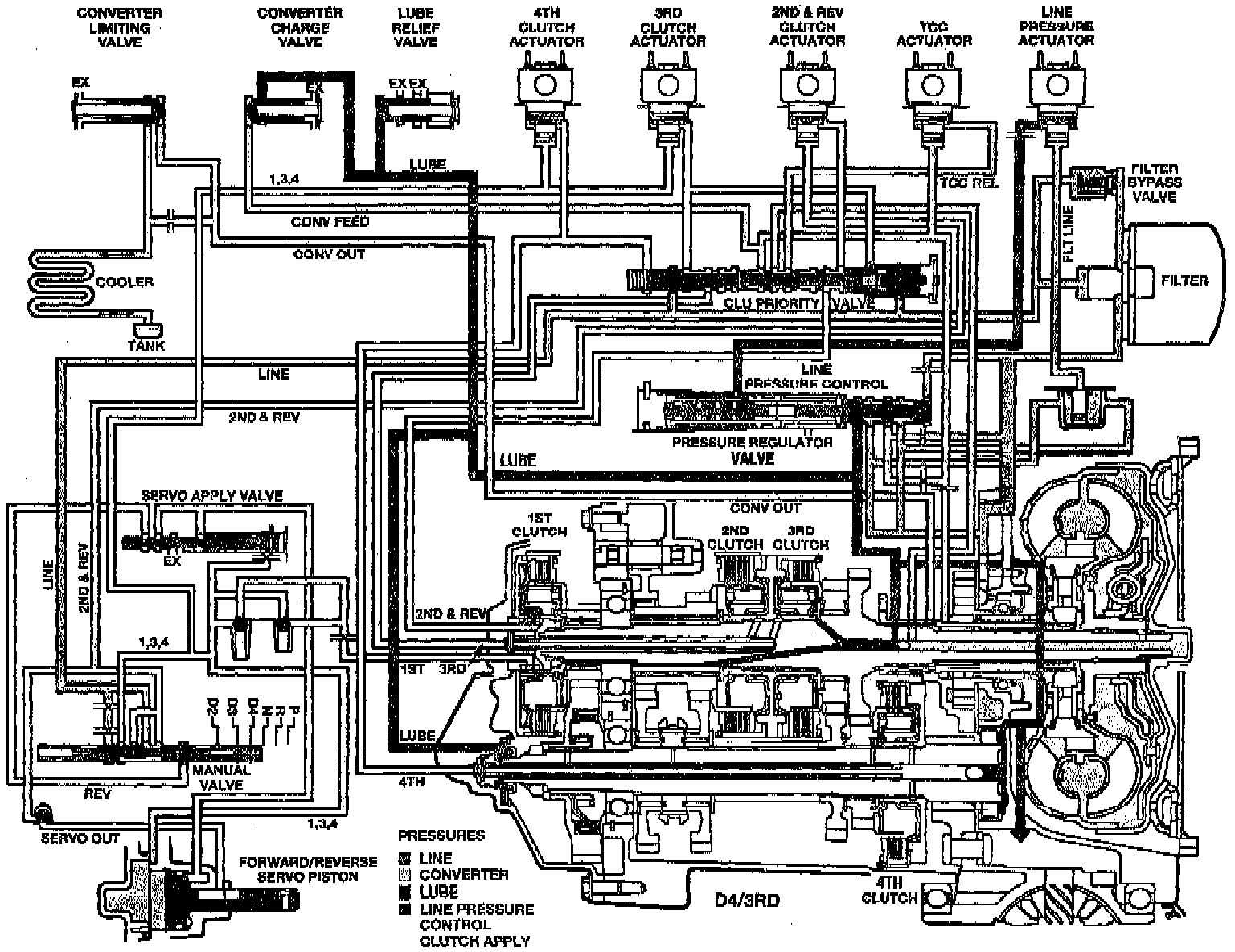

- D4/3rd

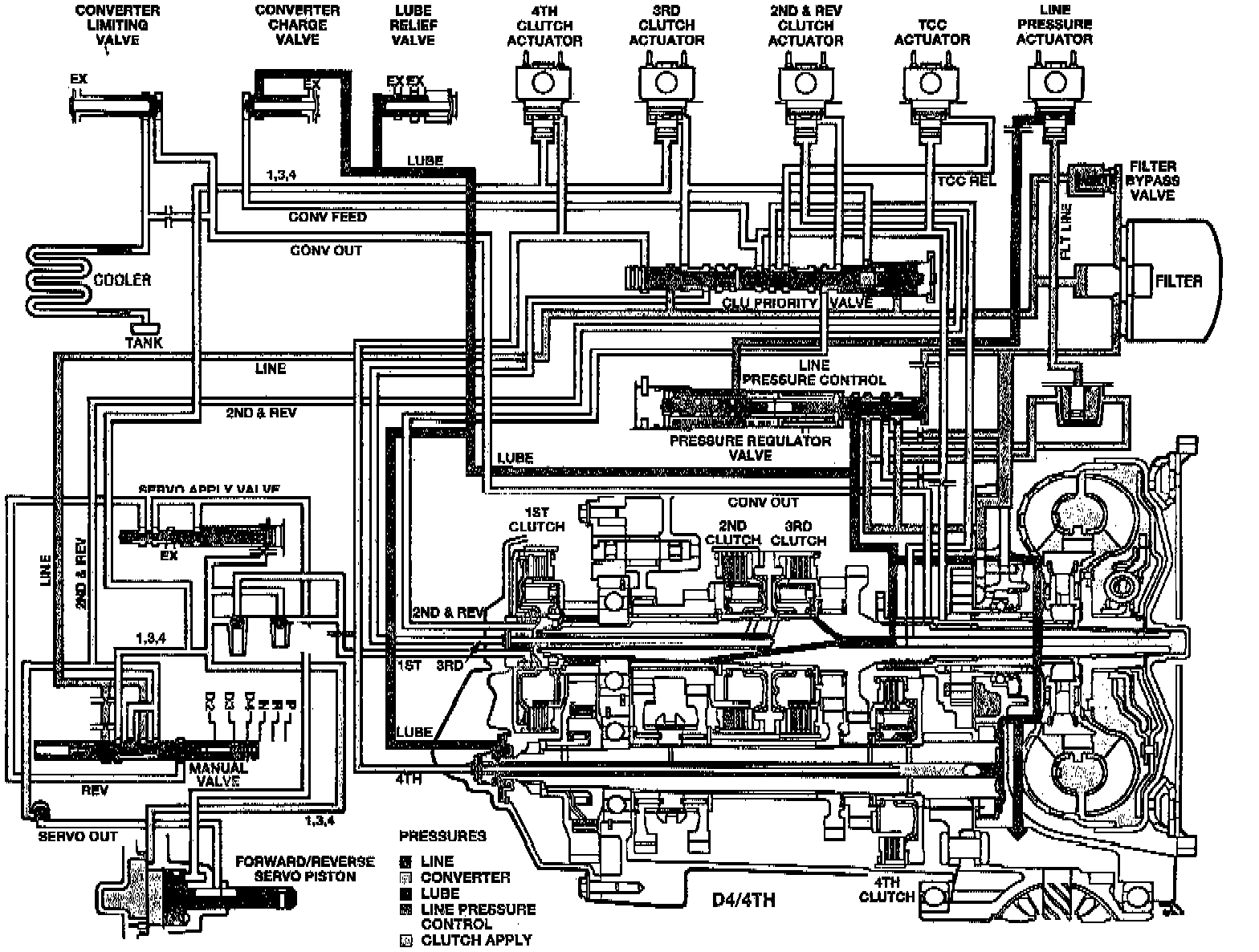

- D4/4th





- D2
