Outer Rocker Panel Sectioning

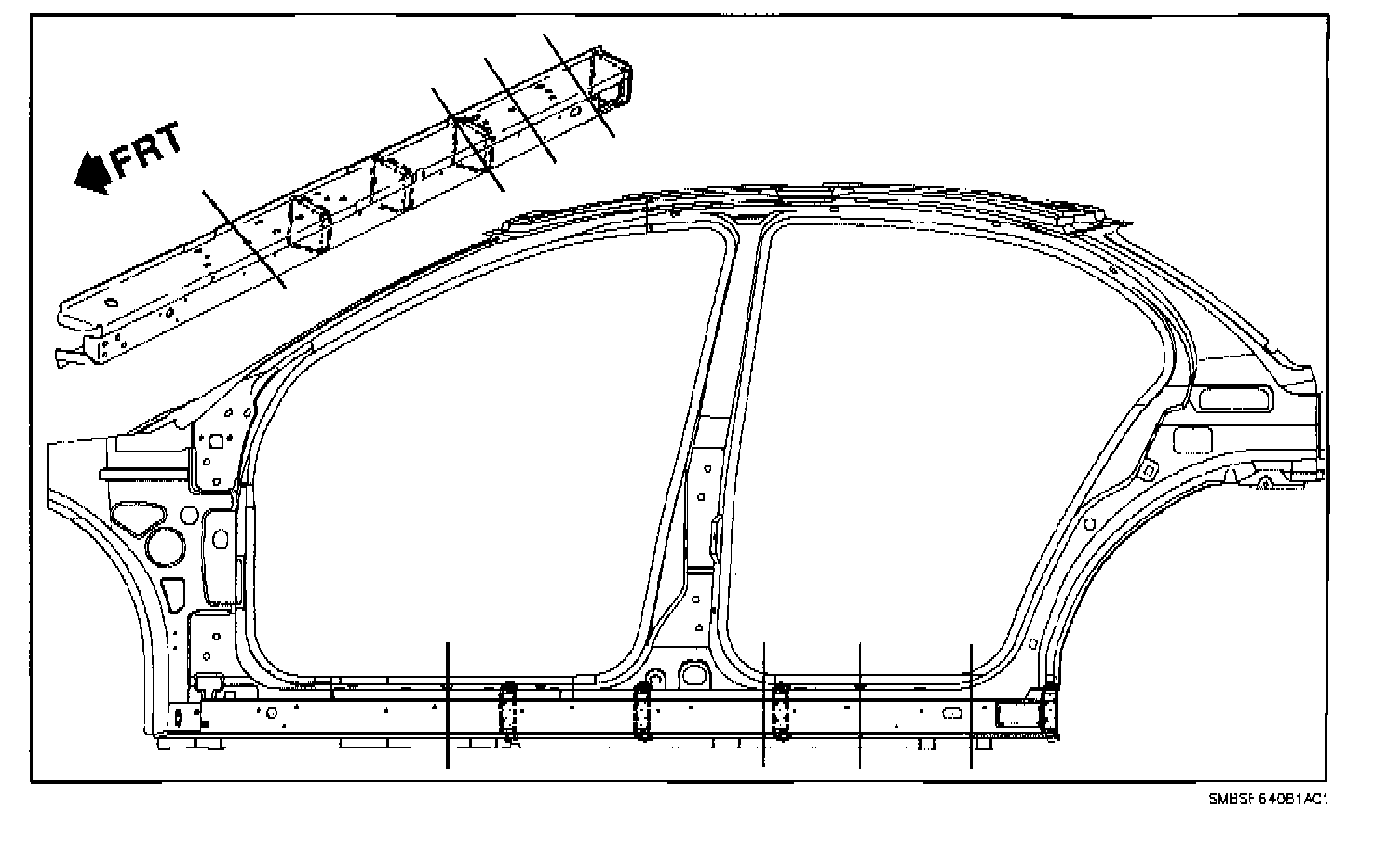

This illustration is provided to show the new recommended areas for sectioning the Sedan/Wagon outer rocker panel. For complete outer rocker panel sectioning procedure, refer to the appropriate model year Body/Collision service manual.
