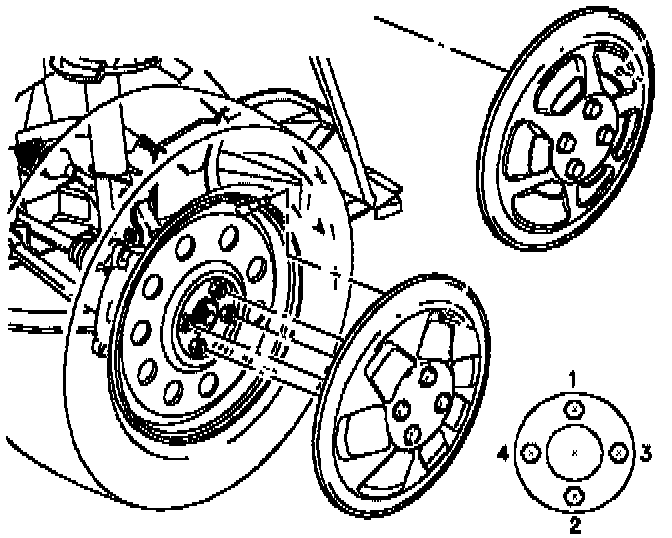

Wheel Removal

CAUTION: MAKE SURE VEHICLE IS PROPERLY SUPPORTED AND SQUARELY POSITIONED ON HOIST. TO HELP AVOID PERSONAL INJURY, PROVIDE ADDITIONAL SUPPORT TO THE OPPOSITE END OF THE VEHICLE THAT COMPONENTS WILL BE REMOVED FROM.

1. Raise vehicle on hoist.
2. Remove wheel cover or hub cap (if equipped).
3. Remove wheel lug nuts.

NOTICE: Never use heat to loosen a tight wheel lug nut. This can shorten the life of the wheel and damage the wheel bearings.

4. Remove wheel.
