Rear Suspension

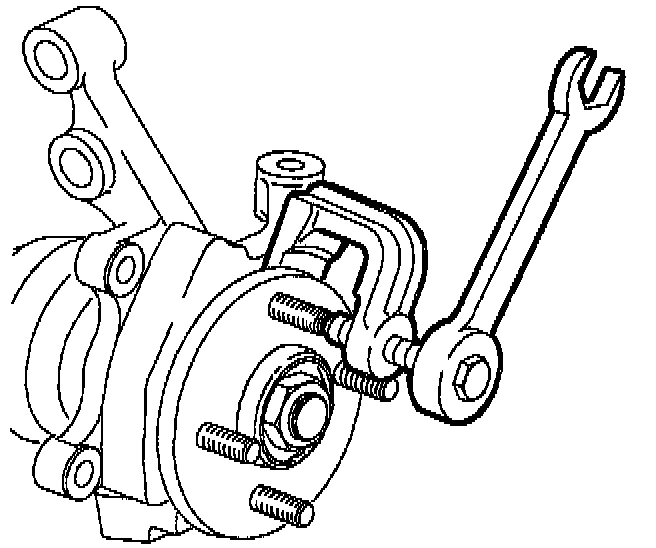

1. Using SA91107NE (or equivalent), remove wheel stud.
2. Start new wheel stud into hub.
3. Place four washers over stud.
4. Install wheel mounting nut with flat side toward washer.
5. Using an open end wrench, tighten nut until stud is seated.
