Intermediate Steering Shaft - Installation

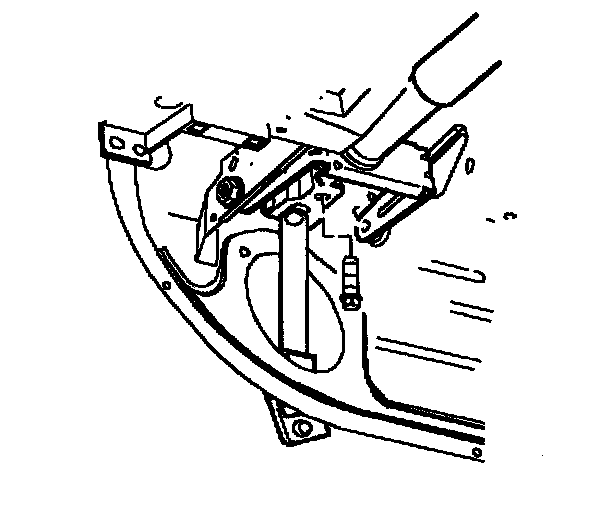

1. From inside vehicle, position intermediate shaft onto steering column and install pinch bolt.

IMPORTANT: Use Loctite(r) 242 Threadlocker (or equivalent) on thread of pinch bolt.

- Torque: 47 Nm (35 lb ft)

CAUTION: MAKE SURE VEHICLE IS PROPERLY SUPPORTED AND SQUARELY POSITIONED ON HOIST. TO HELP AVOID PERSONAL INJURY, PROVIDE ADDITIONAL SUPPORT TO THE OPPOSITE END OF THE VEHICLE THAT COMPONENTS WILL BE REMOVED FROM.

2. Raise vehicle on hoist.





3. Position intermediate shaft onto pinion and install pinch bolt.

IMPORTANT: Use Loctite(r) 242 Threadlocker (or equivalent) on thread of pinch bolt.

- Torque: 47 Nm (35 lb ft)
4. Slide cover over intermediate shaft and attach securely to steering gear.
5. Lower vehicle from hoist.
