Removal

IMPORTANT: This procedure does not require disassembly of pump.

1. Remove pump from vehicle, as described previously.

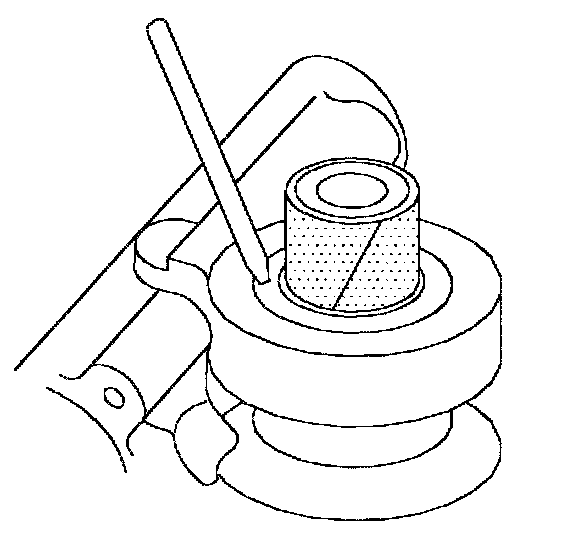

2. Remove pump pulley using SA9162C (or equivalent).
3. Protect drive shaft with shim stock.
4. Using a small chisel, cut drive shaft seal and remove from pump housing.
