Removal

EVO Solenoid Replacement.:

1. Disconnect negative battery cable.
2. Remove pump from vehicle.

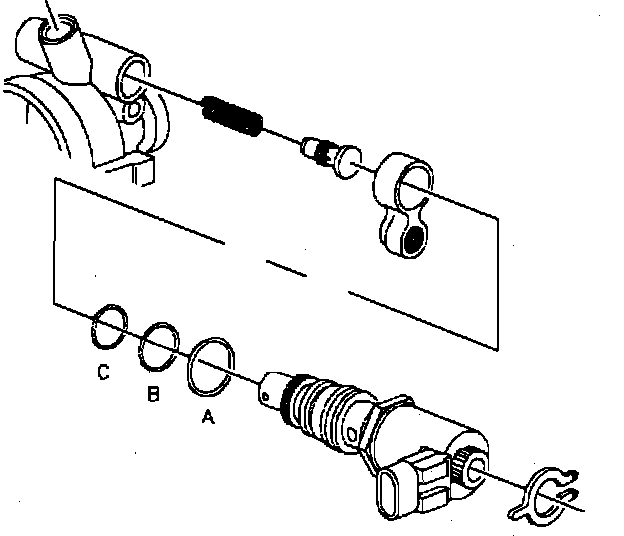

3. Remove EVO electrical connector locating clip.
4. Remove EVO actuator assembly with SA9116C (or equivalent).

NOTICE: Do not cock socket when removing EVO actuator, since this can result in actuator damage and loss of EVO operation.

5. Remove discharge fitting from EVO actuator.
6. Remove three O-ring seals from EVO actuator.

IMPORTANT: Note the size and location of each of the O-ring seals.
