Installation

Removal Of EVO Solenoid.:

1. Install three O-ring seals onto EVO actuator.

IMPORTANT: Install the three O-rings in their correct locations:

a. Largest (19.00/18.54 mm ID) first
b. Mid-size (17.4/16.44 mm ID) second
c. Smallest (14.6/15.3 mm ID) third

2. Install discharge fitting to EVO actuator until fully seated.
3. Correctly position EVO actuator and discharge fitting to pump assembly.

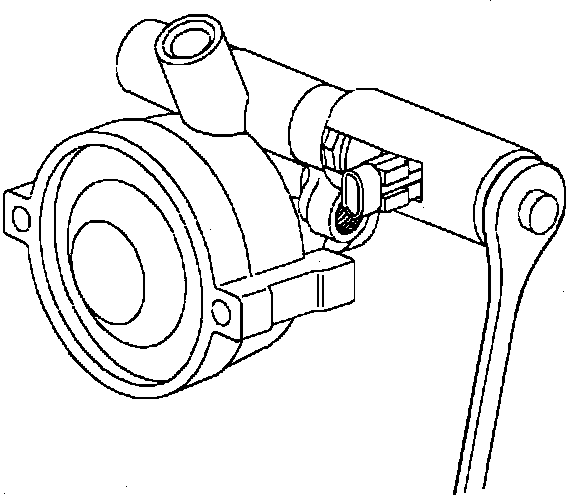

4. Using SA9116C (or equivalent), tighten EVO actuator.
- Torque: 62 Nm (46 ft. lbs.)
5. Position electrical connector so that it is in line with the pump shaft and pointing to the rear and install locating clip.
6. Install pump.
7. Connect negative battery cable.
- Torque: 17 Nm (151 inch lbs.)
8. Bleed power steering system. (Refer to "Power Steering Bleed Procedure.")
