Toe-In

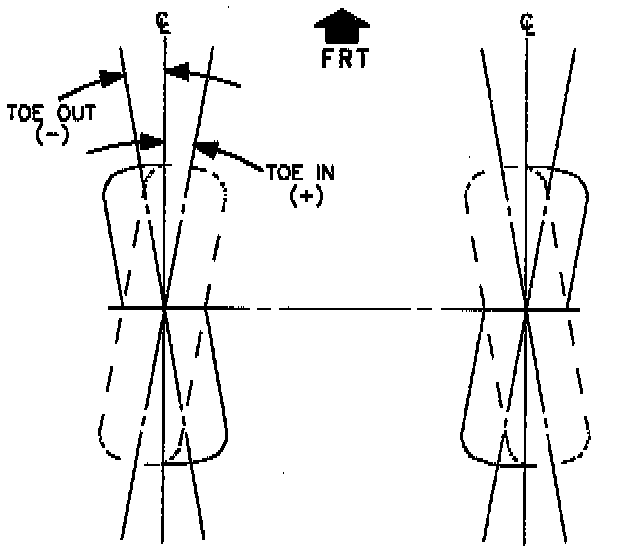

Toe is a measure of how far a wheel is turned in or out from the straight ahead direction. When the front of a wheel is turned in, the toe is positive. When turned out, the toe is negative.
