Starting System
Starting System

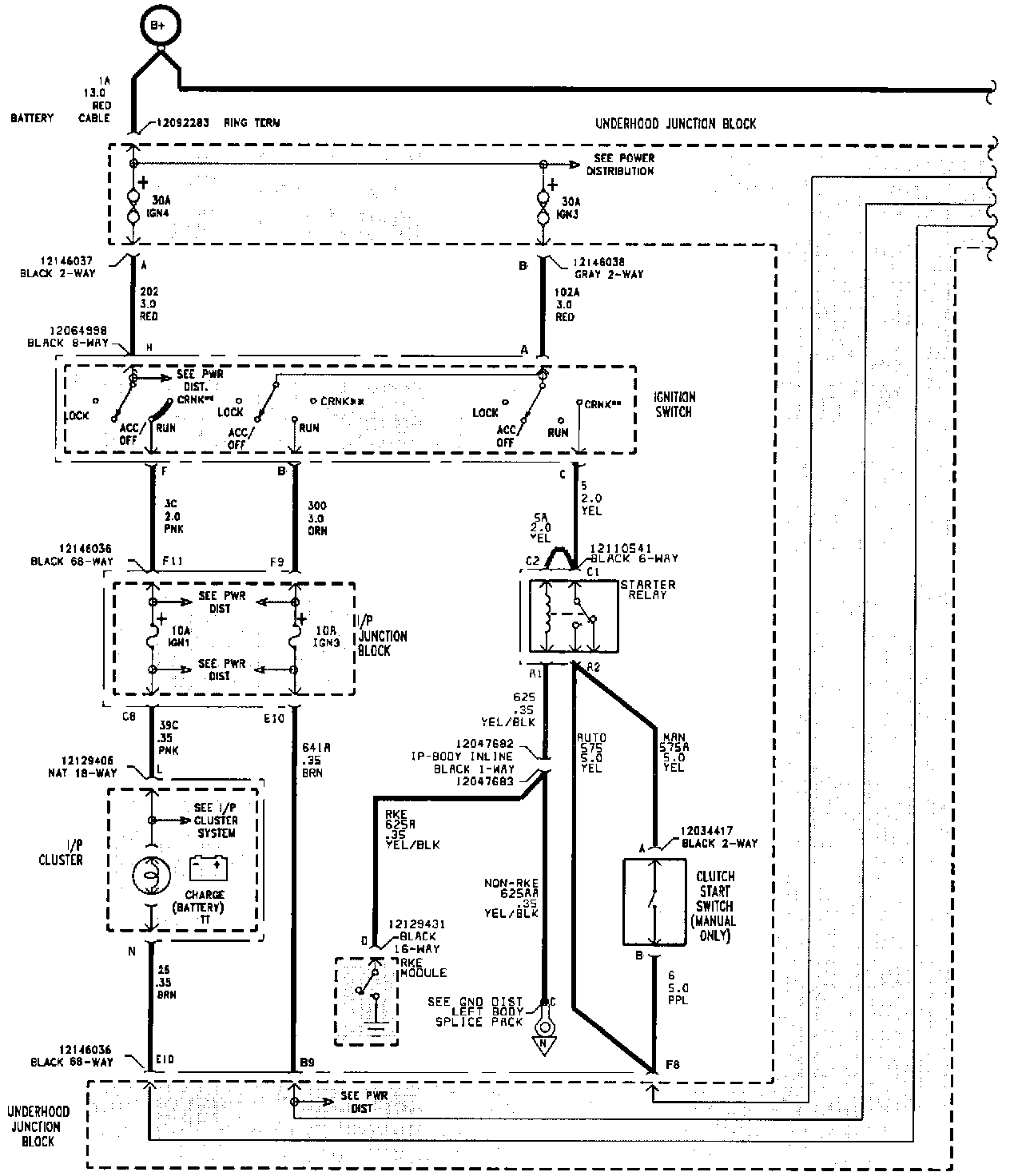

Starting/Charging System (Part 1 Of 2):

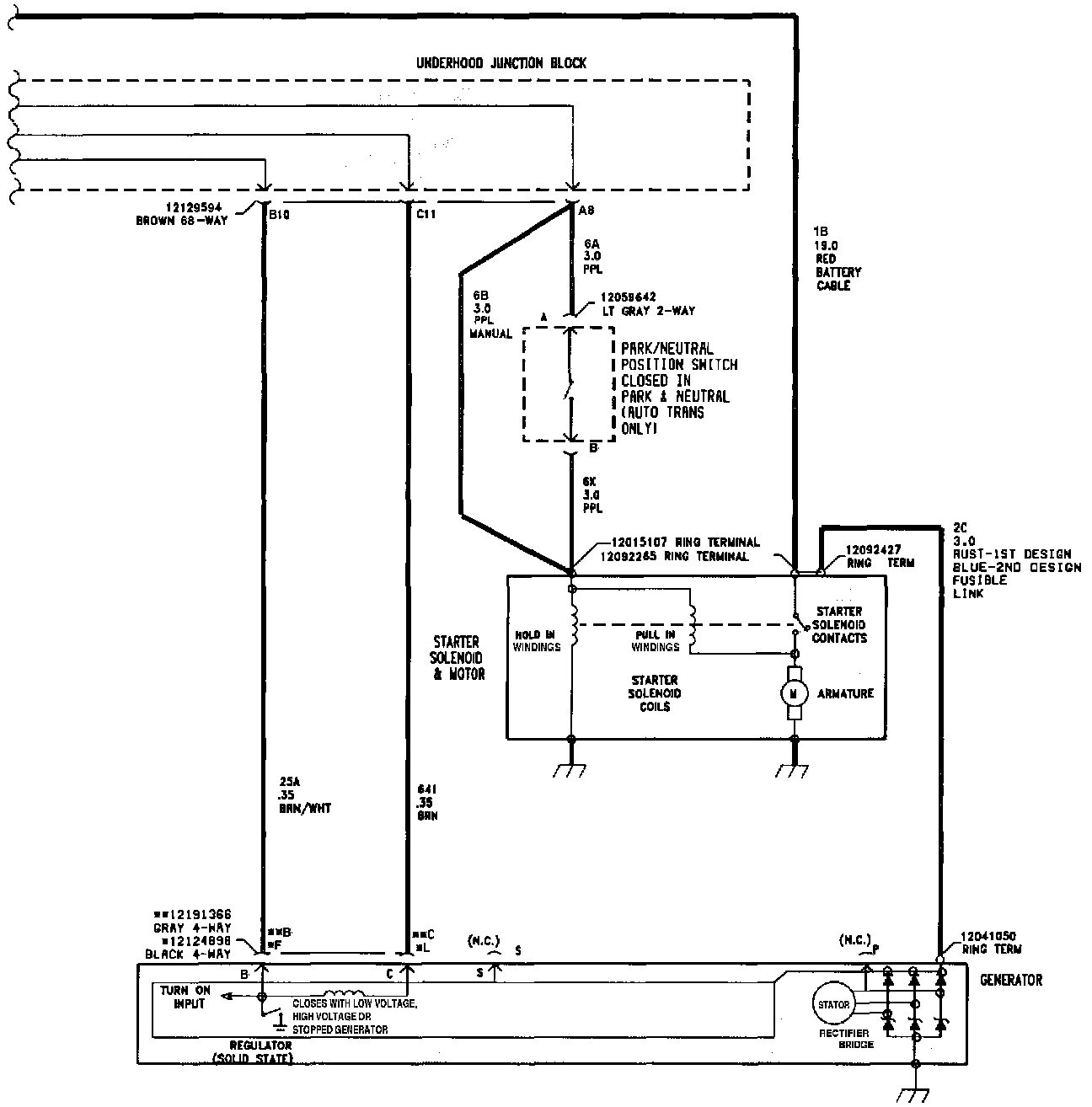

Starting/Charging System (Part 2 Of 2):

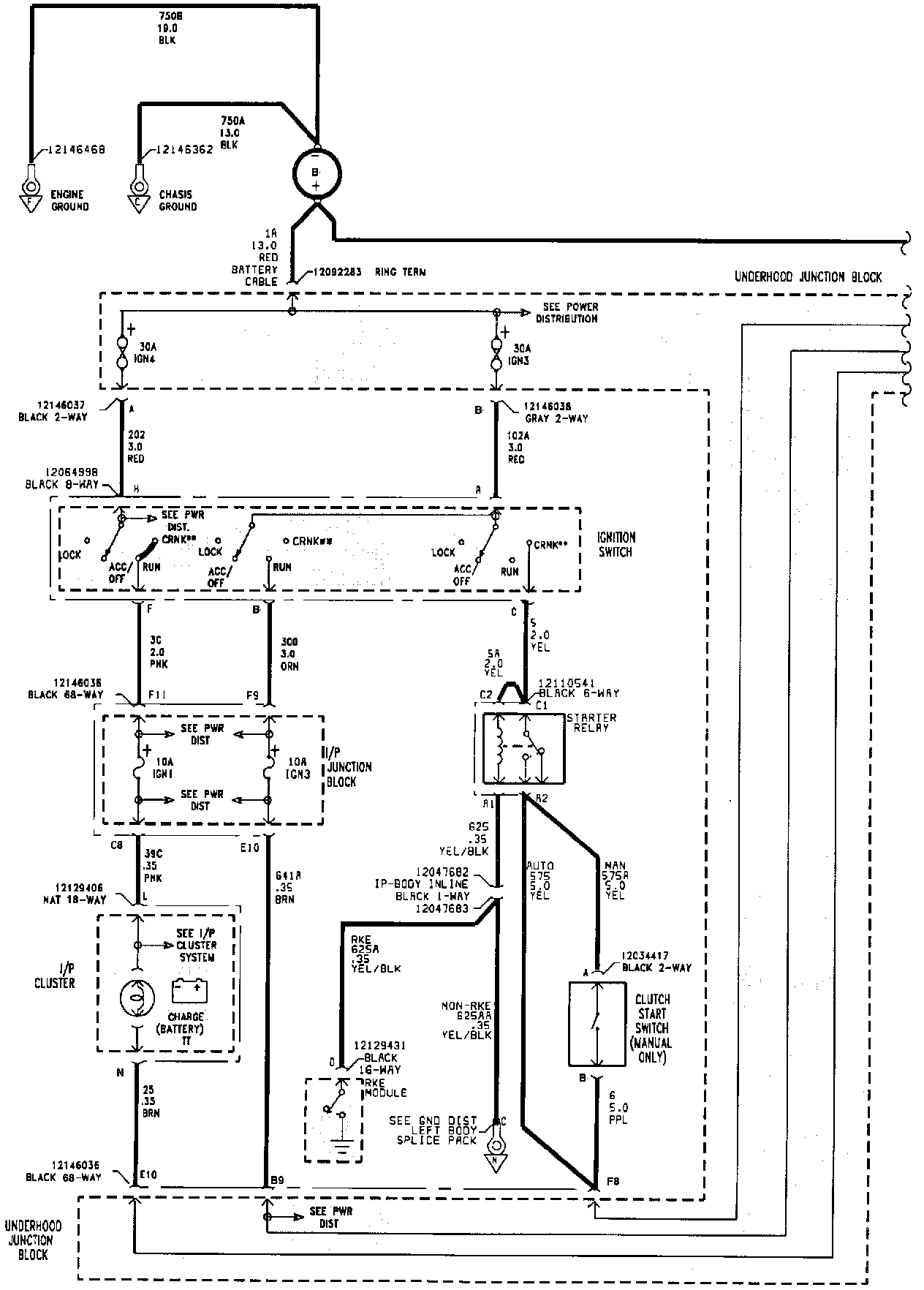

Starting/Charging System (Part 1 Of 2):

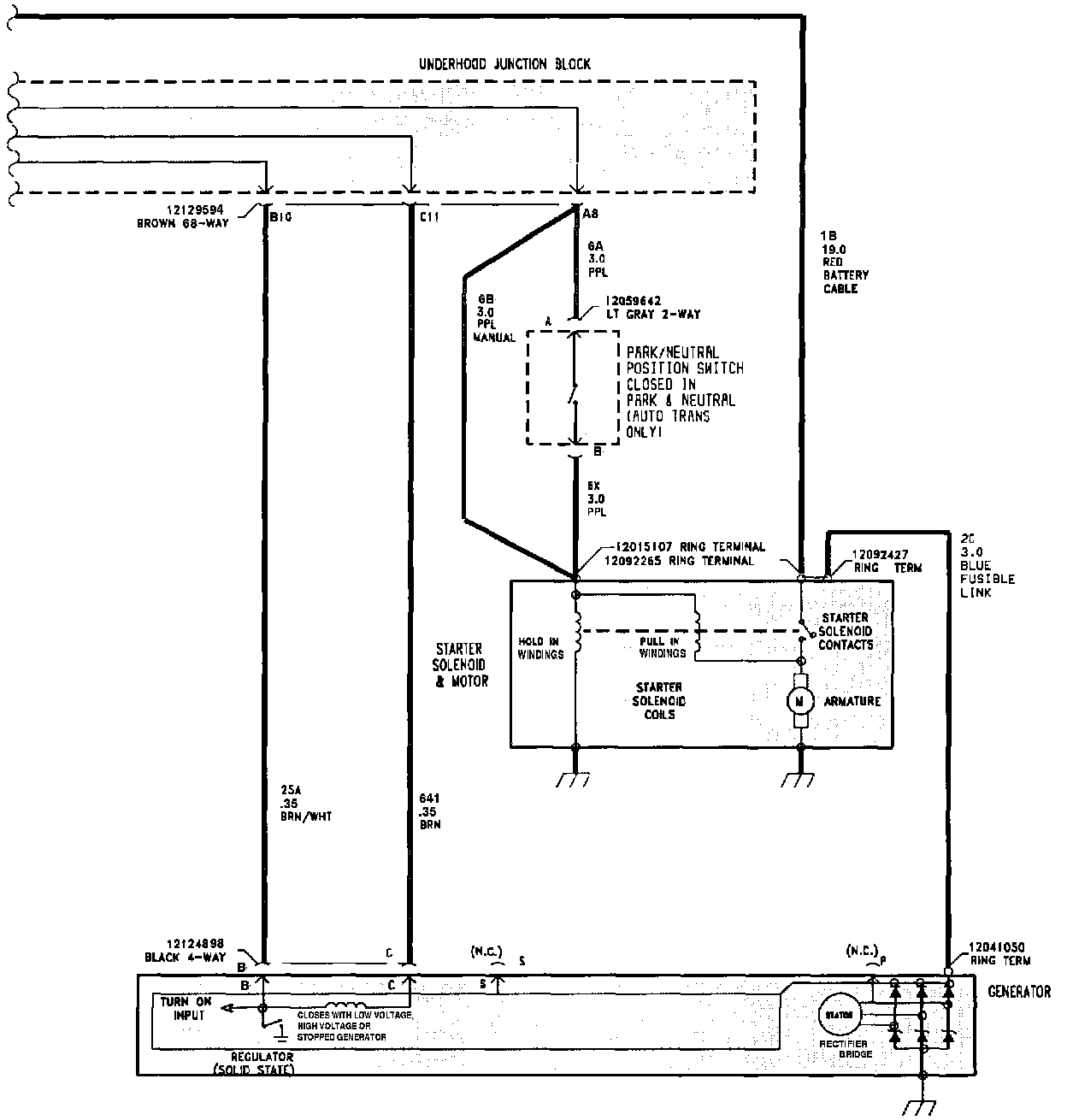

Starting/Charging System (Part 2 Of 2):
